| Place of Origin: | HENAN |
| Brand Name: | NEWDESEN |
| Certification: | ISO9001, SGS |
| Model Number: | 2715 |
| Minimum Order Quantity: | 10000M |
|---|---|
| Price: | USD 0.01/M |

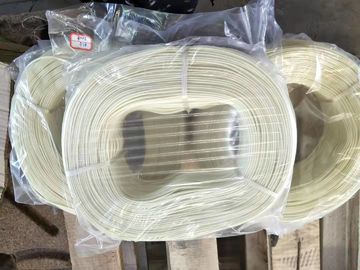

| Packaging Details: | box or woven bags |
| Delivery Time: | 20ft container into 15days finish |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000M/DAY |
| DIAMETER: | 0.5~30MM | PACKAGE: | 1m/pcs Or By Roll Package |
|---|---|---|---|
| COLOR LINE: | Red Line, Blue Line, Green Line | BREAK DOWN VOLTAGE: | 1.5kv 2.5kv 4.0kv |
| Raw Material: | Fiberglass Yarn Woven To Tubes With Polyvinyl Chloride Resin | HS CODE: | 7019 |

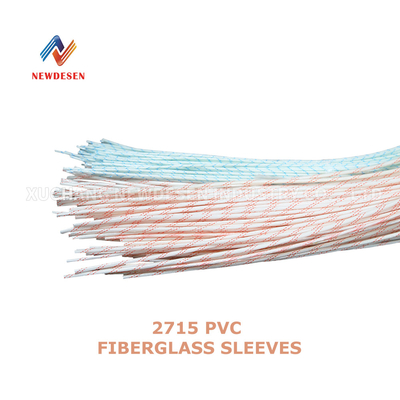

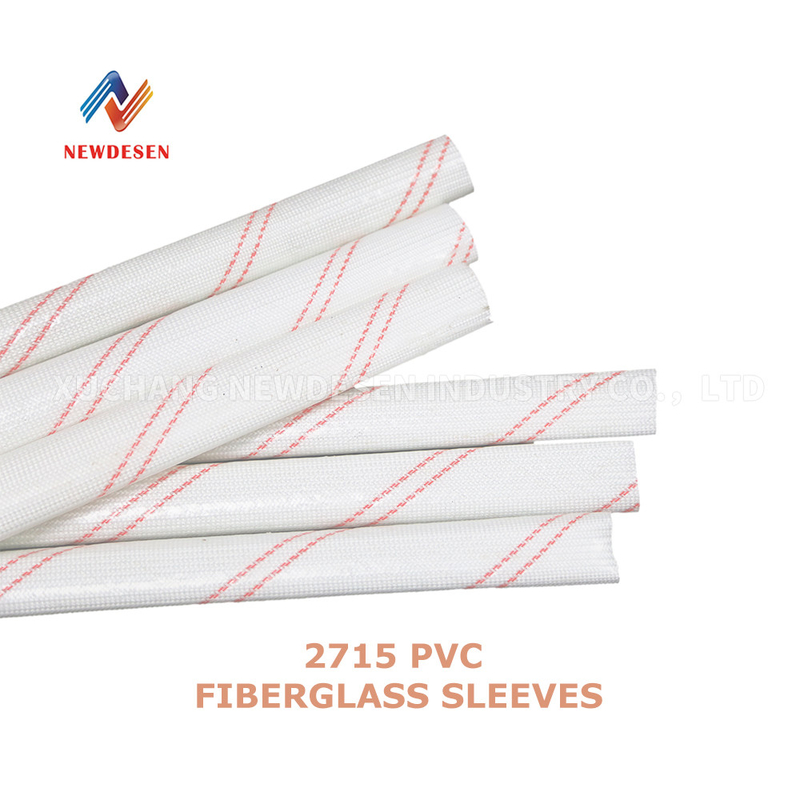

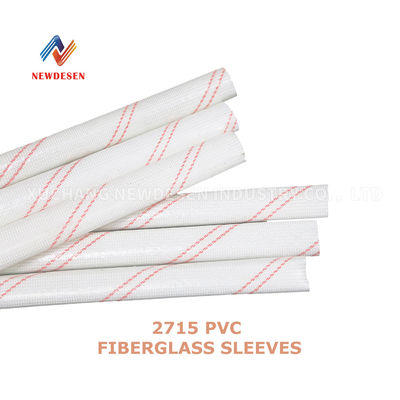

2715 1.5kv 2.5kv electrical PVC fiberglass insulation sleeve
electrical PVC fiberglass insulation sleeving is coated with polyvinyl chloride resin with the E-glass fiber braided sleeving coated with polyvinyl chloride resin.It is produced with the process of thermoplasticization.
Characters
It is Class A insulating material.This product has good qualities of dielectric,chemical resistance,excellent softness and elasticity.
Application
It is suitable for wiring insulation and machine protection in machine portrction in electrical machines,electric appliances,instruments,radios and other electric devices.
Technical Parameters sample free 2715 1.5kv 2.5kv electrical coated silicone PVC fiberglass insulation sleeve
| Inner Diameter(mm) | Wall Thickness(mm) | |||
| Standard | Tolerance | Type1(2.5kv) | Type 2(4kv) | Type3(7kv) |
| 0.5-3.0 | ±0.20 | 0.45 | 0.45 | 0.40 |
| 4.0-9.0 | ±0.25 | 0.6 | 0.55 | 0.50 |
| 10-14 | ±0.50 | 0.80 | 0.7 | 0.6 |
| 16-20 | ±1.00 | 1.00 | 0.9 | 0.8 |
