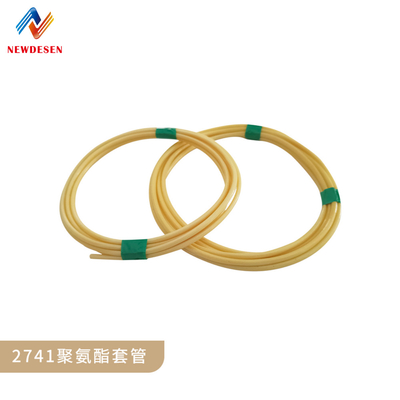

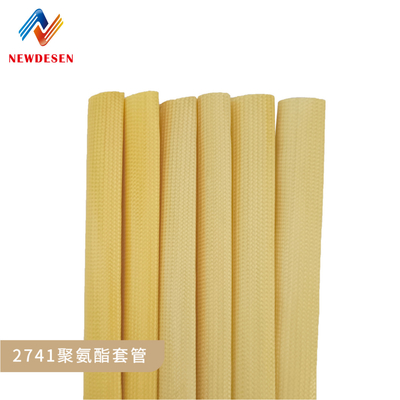

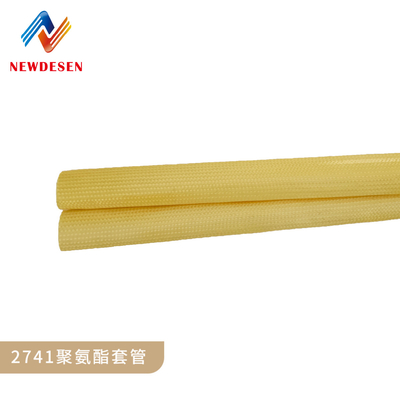

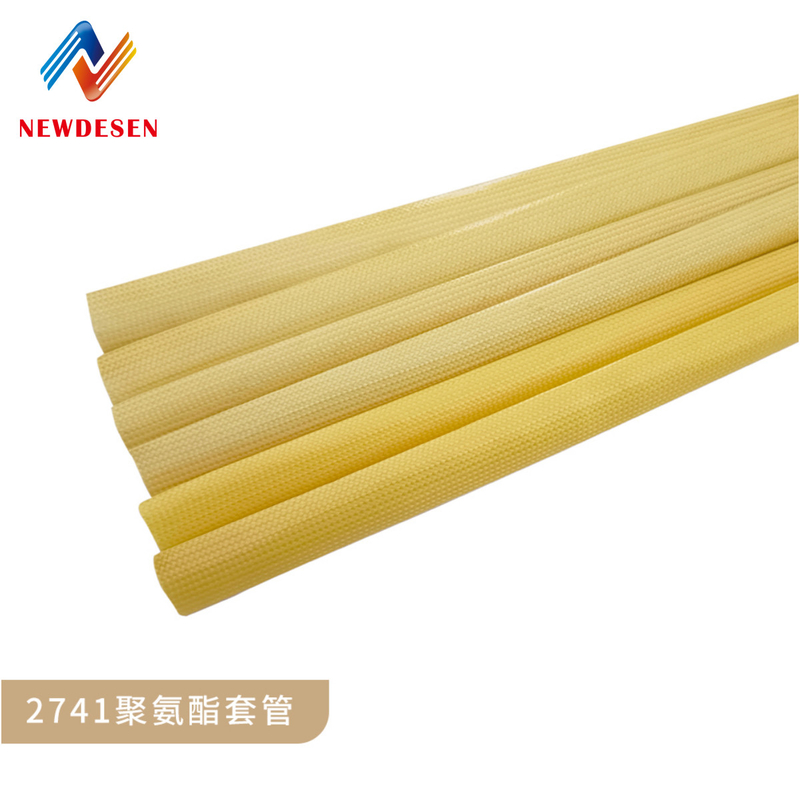

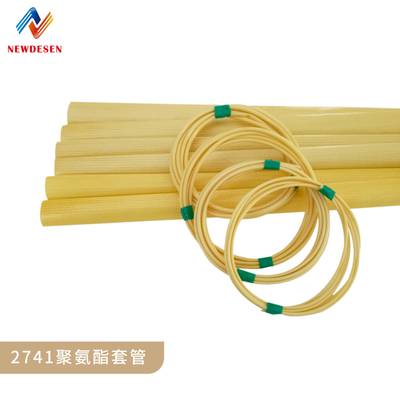

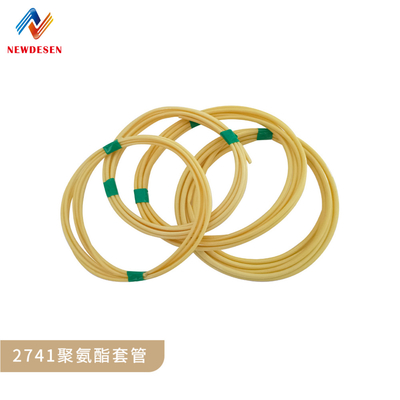

2741 Fiberglass Sleeving Coated with Polyurethane for F Grade Insulating Sleeve
  • name
  • name
  • name
  • name
  • name
  • name

2741 Fiberglass Sleeving Coated with Polyurethane for F Grade Insulating Sleeve

MOQ: 5000METER/SIZE
Price: 0.025~0.029
Standard Packaging: export package all use carton package. some time will save the space will use woven bag, In a word, we always meet the requirements of our clients.
Delivery Period: when get TT payment into 20days delivery to Chinese port
Payment Method: L/C, D/A, D/P, T/T, Western Union
Supply Capacity: 150cartons need production time 10~13days
Detail Information
Product Description
Detail Information
Place of Origin
HENAN
Brand Name
NEWDESEN
Certification
Q/JBQR23-2001
Model Number
2741
Color:
WHITE, BLACK, YELLOW, RED, GREEN, BLUE ,GRAY,
Diameter:
0.5~50mm
Rated Voltage:
1.5kv,2.5kv, 4.0kv, 4.0kv (ANTIFLAMING) 7.0kv
Material:
ACRLIC RESIN With Non-alkali Fiberglass Woven Pipe.
Packing:
Metre/PCS Or Metre/Roll
Temp:
155 Degree
Class:
F
Usage:
Cable Cover Insulation
HS CODE:
701990
STANDARD:
Q/JBAR23-2001
Product Description

2741 FIBERGLASS SLEEVING COATED WITH POLYURETHANE IS MANUFACTURED WITH NON-ALKALI FIBERGLASS BRAIDED SLEEVING AND COATED WITH A LAYER OF POLYURETHANE AND THAN THERMOSET TO FROM F GRADE INSULATING SLEEVING,IT POSSESSES RELIABLE HEAT RESISTANCE ,GOOD QUALITIES OF DIELECTRIC ,FAIR SOFTNESS AND ELASICITY,IT CAN BE USED FOR WIRING INSULATION AND MACHANIC PROTECTION FOR F GRADE ELECTRICAL MACHINERY,ELECTRIC APPLIANCES,ELECTRICAL INSTRUMENTS ,WIRELESS SETS AND DOMESTIC ELECTRICAL APPLIANCES.



Heat-resistance: F class 155℃

Breakdown Voltage: 2500v 4000v 7000v

Standard: Q/JBQR23-2001

Material : Non-alkali fiberglass braided sleeving

Coating: Polyurethane

Property: With excellent oil ,heat and benzene resistance , high dielectric property and elasticity.

Application: it can be used for the wiring insulation and mechanical protection for motors, electrical appliances,electrical instruments, wireless sets .

The specification available:

I.D.: 1-50mm

Length: in one meter or in coils. 50m 100m for one coils, also can be accroding to your request

Pacage: Plastic Bags or Carton

2741 Fiberglass sleeving Coated with Polyurethane



Inner Diametor Wall Thickness
Nominal Tolerance Nominal Tolerance
1; 1.5 ±0.15 0.20

0.75


2;2.5 ±0.20
3 ±0.25
4; 5; 6 ±0.25 0.30 0.75
7; 8; 9; 10 ±0.50 0.30 0.75
Property requirements
Resistance to Soldering heat Pass (only for sleeving haveing nominal bore Diameter up to and including 5mm)
Bending after heating No cracking or detachment of coating shall all be visible after bending around mandrels after 48±1h at 180℃
Bending at low temperature No cracking or detachment of coating shall be visible after bending around mandrels while at -15℃
Nsulation resistance ≥10³
Temperature index 155℃
Breakdown Voltage kv Straight mandrel with 25mm electrode Room temp Elevated temp Damp heat
Central value ≥4.0 ≥1.6 ≥1.2
Lowest individualvalue ≥2.5 ≥1.0 ≥0.8



Storage Conditions :

Stored in a clean,dry,ventilated place,keep away from fire and heating,avoid direct sunlight.



2741 Fiberglass Sleeving Coated with Polyurethane for F Grade Insulating Sleeve 0



2741 Fiberglass Sleeving Coated with Polyurethane for F Grade Insulating Sleeve 1

2741 Fiberglass Sleeving Coated with Polyurethane for F Grade Insulating Sleeve 2
