| Place of Origin: | HENAN |
| Brand Name: | NEWDESEN |
| Certification: | ISO2000 ,SGS |
| Model Number: | VG201 |
| Minimum Order Quantity: | 30000m |
|---|---|
| Price: | USD0.01/M |
| Packaging Details: | box or woven bags |
| Delivery Time: | follow order quantity |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | full 20ft container into 15days |
| Break Down Voltage: | 1.5kv 2.5kv 4.0kv | Color Line: | Red Line Green Line Blue Line |
|---|---|---|---|
| Diameter: | 0.5~30mm | Raw Material: | Fiberglass Yarn |
| Package: | By Woven Bag Or Box | Type: | Insulation Sleeves |
| Class Grade: | A 105 | HS CODE: | 7019 |

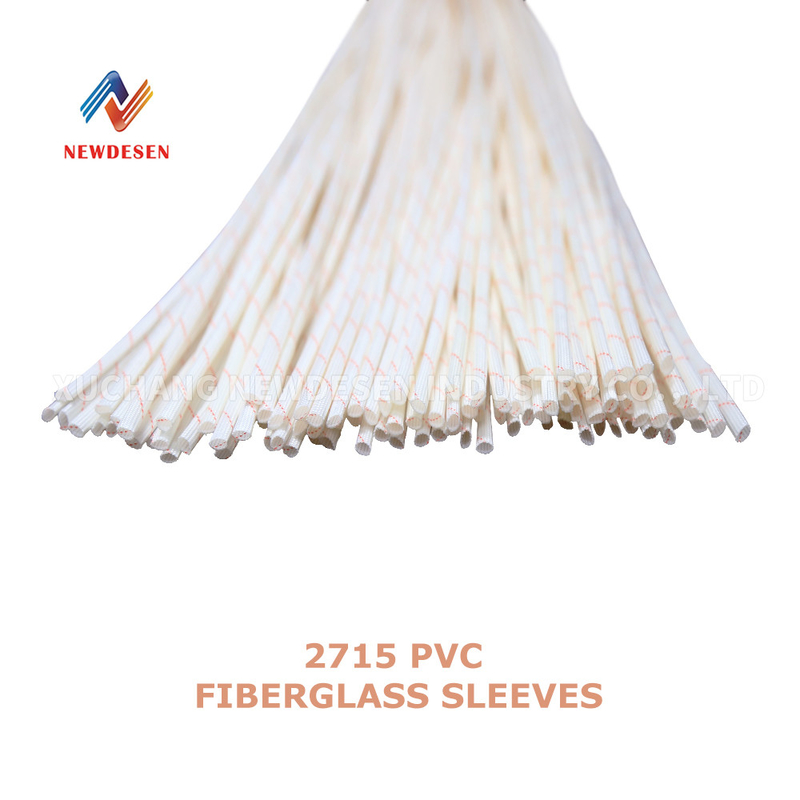

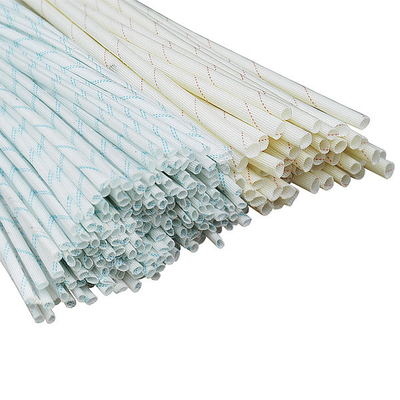

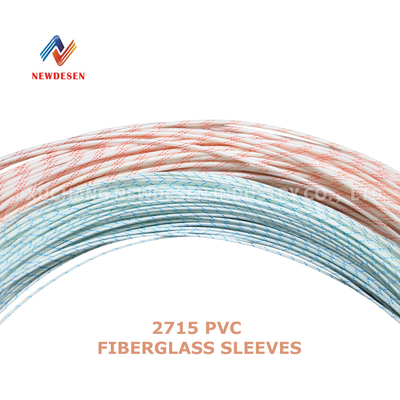

VG201 red line of PVC insulation fiberglass sleeve
Basic Material: E-glass fibre braided sleeving
Impregnated Varnish: Modified polyvinyl chloride resin
Temp. class: A(105℃)
Features and Applications:
- Excellent softness, elasticity, dielectric properties and chemical resistance.
- As wiring insulation and mechanic protection for motor, electric instrument and radio equipment
Availability:
Average Breakdown voltage 1.5KV, 2.5KV,4KV
Inner Diameter(mm) 1, 1.5, 2, 2.5, 3, 3.5, 4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 18, 20, 22, 24, 25, 27,30
| 2715 Polyvinyl Chloride Resin Fiberglass Sleeving | ||||
| Inside Diameter (mm) | Wall Thickness | |||
| Normal Size | Tolerance | Minimum | Maximum | |
| 0.5; 0.8 | ±0.10 | 0.20 | 0.5 | |
| 1; 1.5; 2; 2.5; 3 | ±0.15 | 0.20 | 0.75 | |
| 3.5; 4; 5; 6; 7; 8 | ±0.10 | 0.20 | 0.5 | |
| 9; 10; 11; 12; 14; 16; 18; 20; | ±0.50 | 0.40 | 0.9 | |
| Performance | value | |||
| Heat Resistance | Pass the test.(suitable to the said products of nominal inside diameter below 5mm) | |||
| Flexibility after heat treatment | Pass the test.(suitable to the said products of nominal inside diameter below 5mm) | |||
| Flexibility after heat treatment | No flaking on PVC resin coating, test temperature -130℃,96hrs | |||
| Flexibility in low temperature | No flaking on PVC resin coating, test temperature -25℃ | |||
| Combustibility ≤, Method A | 60 seconds, In addition, specimen do not burn, and no flaming and burning particles to ignite the cotton | |||
| Breakdown voltage, upright core rod, -25mm electric pole (Type II) | kv | Mid-value(kv) | Min-value(kv) | |
| Room Temp. | 4 | 2.5 | ||
| High Temp.130℃,1hr | 1.6 | 1.2 | ||
| Moisture-Heat treatment 40℃, relativehumidity91-95%,96hrs | 1.2 | 0.8 | ||
| Insulation Resistance | MΩ | ≥1.0*10^3 | ||
Application
Thermal resistance is A class, it can be used as electrical insulation and protection in motors, transformers, special bulbs, electrical iron, as well as other household appliance.
Size
0,50 mm to 30 mm as maximum in rolls form and cut from 5 mm to 1000 mm
Temperature resistance : A-105ºC
Color : White with colouring lines
