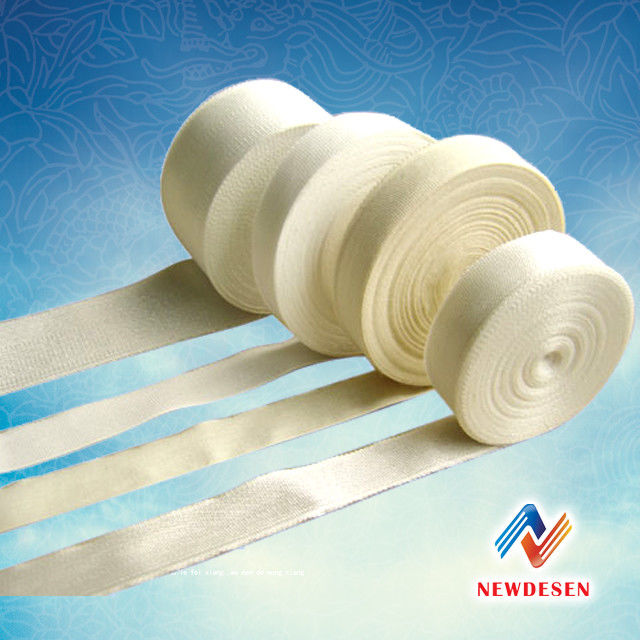

Hot sale electrical insulation polyester heat shrinking insulation tape

Product Details:

Place of Origin:	HENAN
Brand Name:	NEWDESEN
Certification:	ISO1998
Model Number:	insulation tape

Payment & Shipping Terms:

Minimum Order Quantity:	50000maters
Price:	0.01~0.20USD
Packaging Details:	The inside package is plastic bag, and the outside packed by carton or pallet for Heat shrinking fiber tape.
Delivery Time:	After get payment into 20days delivery to China
Payment Terms:	T/T, L/C
Supply Ability:	15~30days finished 5tons

Contact Now

Detailed Product Description

Tape:	Insulation	Sample:	Sample Supplied
Usage:	Insulation Protection	Feature:	Electrical Performence
Color:	White	Width:	20~40mm
Thickness:	0.20~0.25mm	Shrinking Rate:	10%~40%
Heat Shrink Temperature:	70~100C

Polyester heat shrinking insulation tape for transformer binding

Polyester shrinking tape is made from a special compound fiber of thermal contraction. After binding and dried at 105 for 10 minutes, it will be shrunk to 70%,which is good at a solid binding and at a compatibility with transformers. In this way, it will be utilized in the transformer oil at 105 for a long time.

Applications:

It is suitable for the binding and fastening of product line packages and other components of motors, transformers, reactors, etc. The workpiece treated by the product can save the amount of impregnating paint, and the appearance is standardized and the overall integrity is good.

Thickness 0.20~0.30mm, width 10~50mm , the lenght can be follow up to customer request package that

Indicator name		Unit	Index value
Nominal thickness		mm	0.20	0.25(oblique)	0.30
Width deviation		mm	±1
Shrinkage		%	≥30
Tensile Strength		N/10mm	≥200
Broken	Single	mm	≥200(no)
	Double root		≥30(no)
Side		—	Unaffected loose edges, tight edges, thick edges, thick edges
Inclusion		—	None
Stains		—	No rust, the sum of oil length and width ≤14mm
Broken head		—	Allow each disc to have two segments, each segment not less than 3m in length
Hole		—	There should be no warp, latitude, or more than 3 holes
Storage period		Month	The date from the factory is 12 months, and the product is tested according to the product standard for more than 12 months.
