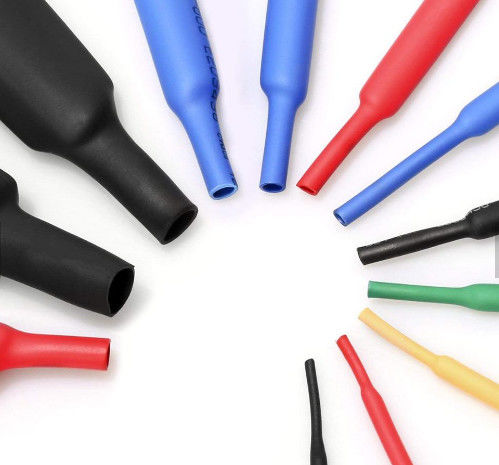

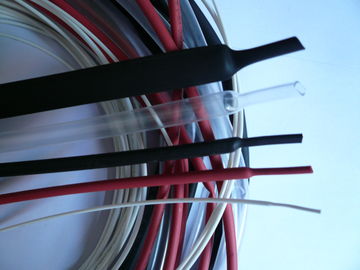

COLORFUL AUTOMOTIVE HEAT SHRINKABLE TUBE THIN WALL HEAT SHRINKABLE TUBES

Product Details:

Place of Origin:	XUCHANG
Brand Name:	NEWDESEN
Certification:	ROHS
Model Number:	RSFR 125H

Payment & Shipping Terms:

Minimum Order Quantity:	2000M
Price:	USD + 0.05~2.0 +PCS
Packaging Details:	BOX PACKAGE WITH PALLET
Delivery Time:	7~10DAYS
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	100000 PER DAY

Contact Now

Detailed Product Description

Hot-shrinkable Rate:	2:1	Initial Shrinkage Temperature:	≥70℃
Minimum Complete Shrink Temperature:	≥110℃	Usage Temperature:	-55℃ ~ +120℃
Color:	BLACK ,RED, GREEN, BLUE	Environmental Protection Standard:	RoHS

eat shrinkable tube is made from high quality dual colors polyolefin materials. It has a performance of flame retardant, soft insulation high combustion resistance, waterproof and low temperature shrinkage, etc

Shrink Ratio: 2:1

Minimum Shrinkage Temp: 70℃
Full Shrinkage Temp: 110℃
Operating Temp: -55℃ to 125℃
Tensile Strength:10.4MP
Dielectric strength: 15 KV/mm
Flammability: Flame
Supplied format (round or flat): Product is supplied flat
Vertical shrinkage ratio: ≤8%

·Merit: Flexible, high combustion resistance, quick shrinkage, durable colors.

·Convenient to use: heat by oven or hot air gun.

·Standard color: BLACK, RED ,BLUE, GREEN ,WHITE, TRANSPARENT

SPECIFICATION AS FOLLOWING:

Specification	Heat shrinkable before size (mm)		Heat r shrinkable after size (mm)		Package (m)
Specification	D	T	D	T	Package (m)
0.6	0.8±0.2	0.12±0.06	≤0.35	0.25±0.06	200±2
0.7	0.9±0.2	0.12±0.06	≤0.35	0.25±0.06	200±2
0.8	1.3±0.2	0.10±0.05	≤0.35	0.25±0.06	200±2
1.0	1.5±0.2	0.10±0.05	≤0.35	0.25±0.06	200±2
1.5	2.0±0.2	0.10±0.05	≤0.35	0.25±0.06	200±2
2.0	2.5±0.2	0.13±0.06	≤0.35	0.28±0.06	200±2
2.5	3.0±0.2	0.15±0.06	≤0.35	0.28±0.06	200±2
3.0	3.5±0.2	0.15±0.06	≤0.35	0.30±0.06	200±2
3.5	4.0±0.2	0.15±0.06	≤0.35	0.30±0.06	200±2
4.0	4.5±0.2	0.15±0.06	≤0.35	0.30±0.06	200±2
4.5	5.0±0.2	0.15±0.06	≤0.35	0.30±0.06	200±2
5.0	5.5±0.2	0.15±0.06	≤0.35	0.30±0.06	200±2
6.0	6.5±0.2	0.15±0.06	≤0.35	0.30±0.06	100±1
7.0	7.5±0.2	0.18±0.08	≤0.35	0.36±0.08	100±1
8.0	8.5±0.2	0.18±0.08	≤0.35	0.36±0.08	100±1
9.0	9.5±0.2	0.18±0.08	≤0.35	0.36±0.08	100±1
10.0	10.5±0.2	0.18±0.08	≤0.35	0.36±0.08	100±1
11.0	11.5±0.2	0.18±0.08	≤0.35	0.36±0.08	100±1
12.0	12.5±0.2	0.18±0.08	≤0.35	0.36±0.08	100±1
13.0	13.5±0.2	0.18±0.08	≤0.35	0.40±0.08	100±1
14.0	14.5±0.2	0.18±0.08	≤0.35	0.40±0.08	100±1
15.0	15.5±0.2	0.18±0.08	≤0.35	0.40±0.10	100±1
16.0	16.5±0.2	0.20±0.08	≤0.35	0.50±0.10	50±0.5
18.0	18.5±0.2	0.20±0.08	≤0.35	0.50±0.10	50±0.5
20.0	20.5±0.2	0.20±0.08	≤0.35	0.50±0.10	50±0.5

Storage Conditions :

Stored in a clean,dry,ventilated place,keep away from fire and heating,avoid direct sunlight.
