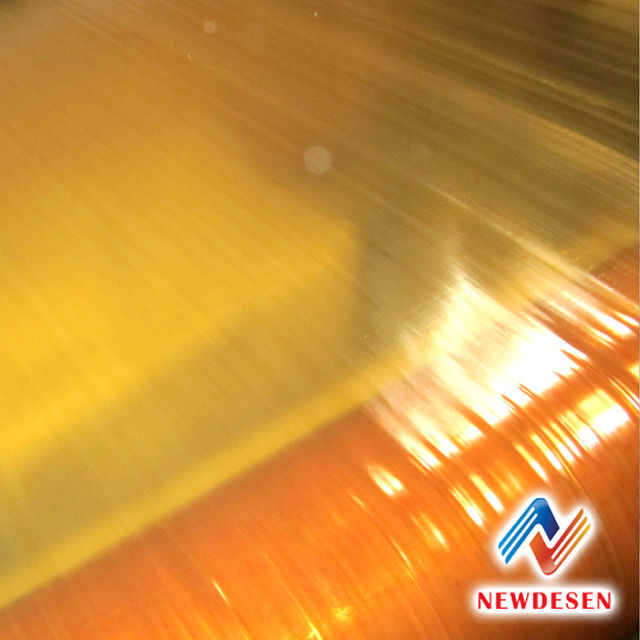

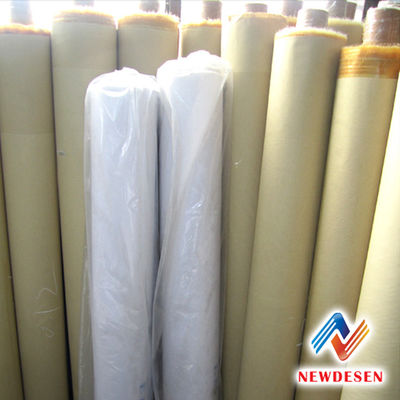

2310 OIL SYNTHETIC FIBER YELLOW VARNISHED CLOTH use for hand winding coil
  • name
  • name
  • name
  • name

2310 OIL SYNTHETIC FIBER YELLOW VARNISHED CLOTH use for hand winding coil

MOQ: 200kg
Price: USD 8.7USD~8.9USD/KG
Standard Packaging: woven bag or cartons package then put cartons on pallet
Delivery Period: After confrim the order into 15~20days ,if quantity less than 2tons
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: each week 1300kg
Detail Information
Product Description
Detail Information
Place of Origin
XUCHANG
Brand Name
NEWDESEN
Certification
ISO2000, SGS
Model Number
2310
Raw Material:
Synthetic Fiber Cltoh
Coating:
Oil Varnished
Provide Thickness:
0.08m 0.10mm 0.12mm 0.15mm 0.17mm 0.20mm
Prvoide Width:
1200~1350mm
Roll Weigth:
10~13kg
Insulation Grade:
Class A ,105degree
Color Of Varnishd Cloth:
Gold Yellow ,or Light Yellow
Brand Of Varnished Cloth:
NEWDESEN
Stantard:
JB/T7772-1995
Product Description

2310 OIL SYNTHETIC FIBER VARNISHED CLOTH

Heat-resistance: A class 105℃

Standard: JB/T7772-1995

Material : synthetic fiber Coating: Oil varnish

Application:Excellent softness and electric property. used as liner and coil insulation for motors and electric motor,

The specification available:

Thickness: 0.08mm 0.10mm 0.12mm 0.15mm 0.17mm 0.20mm

Width: in rolls , strips

Pacage: Plastic and Carton

XUCHANG NEWDESEN INDUSTRY CO.,LTD

Test Report

Standard:JB/T7772-1995      Thermal degree: 105 A class

Commodity:2310 Oil varnish cloth         Date of Manufacturing:2019-2-21
Number Test Content Technical request Unit Test Result Report
1 Appearance No split, no alien material , no adhensive   Approval Approval
2 width 1000 mm 1000 Approval
3 Standard Thickness 0.08±0.010 mm 0.085 Approval
0.10±0.010 mm 0.103 Approval
0.12±0.015 mm 0.13 Approval
0.15±0.020 mm 0.15 Approval
4 Thermol plastic(70±2℃,24h) No adhensive, no shed in appearance / Approval Approval
5 Breakdown voltage(normal degree)Mid-value 0.08 ≥4.8 KV 5.0 Approval
0.10 ≥5.8 KV 6.1 Approval
0.12 ≥7.2 KV 7.6 Approval
0.15 ≥8.7 KV 8.8 Approval
6

Tensile strength

Warp direction

 0.08 ≥22 N/10MM WIDTH 25 Approval
0.10 ≥24 26 Approval
0.12 ≥25 28 Approval
0.15 ≥30 32 Approval

Tensile strength Weft

direction

 0.08 ≥15 N/10MM WIDTH 18 Approval
0.10 ≥17 20 Approval
0.12 ≥18 21 Approval
0.15 ≥22 24 Approval





2310 OIL SYNTHETIC FIBER YELLOW VARNISHED CLOTH use for hand winding coil 0

Wechat :707073142

2310 OIL SYNTHETIC FIBER YELLOW VARNISHED CLOTH use for hand winding coil 1

mail: creditzf@163.com

2310 OIL SYNTHETIC FIBER YELLOW VARNISHED CLOTH use for hand winding coil 2

whatsapp: 86 139 0374 4063

2310 OIL SYNTHETIC FIBER YELLOW VARNISHED CLOTH use for hand winding coil 3

2310 OIL SYNTHETIC FIBER YELLOW VARNISHED CLOTH use for hand winding coil 4
