2450 CLASS H SILICONE VARNISHED FIBERGLASS CLOTH FOR INSULATION MOTOR

MOQ:	300KG
Price:	10USD~12USD/KG
Standard Packaging:	each roll weight 11~13kg, each carton 4rolls . final package into pallet
Delivery Period:	10~15days
Payment Method:	L/C ,T/T, D/A, D/P ,100%LC ,Western union
Supply Capacity:	5000kg/15days

Detail Information

Product Description

Detail Information

Place of Origin

HENAN

Brand Name

NEWDESEN

Certification

ISO,SGS, UL

Model Number

RAW MATERIAL:

Non-alkali Fiberglass Cloth

Colour:

White

Thickness:

0.10~0.25mm

Width:

1000~1250mm

Break Down Voltage:

5.0~9.0KV

Operating Temperature:

Class H 180 Degree

Model:

Standard:

JB/T 7772-1995

H.S.CODE:

5907.00

Coating:

Silicone Resin

Supply Type:

OEM Service

Design:

Custom Design Is Ok

Product Description

2450 silicone glass varnish tape (cloth)

Heat-resistance: H class 180℃

Standard: JB/T8148.3-1999

Material : Non-alkali fiberglass cloth Coating: Silicone varnish

Property: With high heat resistance, oil resistance ,elasticity, Fungus and dampproof

Application: Mainly used for the insulating binding and liner of the electrical motor and appliances.

The specification available:

Thickness: 0.11mm 0.13mm 0.15mm 0.17mm 0.20mm 0.24mm

Width: 15mm; 20mm; 25mm; 50mm; 1000mm;1250mm (Special specification can be negotiated)

Pacage: Plastic or Carton

Properties			Units	values
Nominal thickness			mm	0.1	0.12	0.15	0.18	0.2	0.25
Tolerance			mm	±0.01	±0.012	±0.015	±0.018	±0.02	±0.025
hydrolysis resistance Under105±2OC 24h			/	Varnished film not breakdown
Oil acid value( varnished glass clothto the influence of oil)(45# transformer oilUnder105±2OC 72h )			mgkOH/g	≤0.5
( oil to the influence of varnished glass cloth)(45# transformer oilUnder105±2OC 48h )			/	Varnished film shall not be broken down
Tensile strength	Length		N/10mm	≥70	≥90	≥100	≥105	≥110	≥120
	Cross			≥40	≥50	≥60	≥65	≥70	≥80
	45°			≥40	≥60	≥65	≥65	≥70	≥80
	On lapping place cut on bias	Before impregnation		≥20	≥25	≥30	≥30	≥35	≥35
	On lapping place cut on bias	After impregnation		≥20	≥20	≥20	≥30	≥30	≥30
	Shrinkage 10% Under 450			2~12	2~12	3~15	3~15	4~16	5~20
Shrinkage when break down	warp-wise		%	≥1.5	≥1.5	≥2.0	≥2.0	≥2.5	≥3.0
Shrinkage when break down	45O		%	≥15	≥15	≥15	≥20	≥20	≥20
Edge Tearing Resistence	warp-wise		N	≥5	≥6	≥7.5	≥10	≥20	≥25
Edge Tearing Resistence	45O		N	≥50	≥60	≥75	≥80	≥90	≥120
Breakdown voltage	Under23±2OC		KV	≥5	≥6	≥7	≥7.5	≥8	≥9
	Under180±2OC			≥2.5	≥2.5	≥3.0	≥3.0	≥3.0	≥3.5
	Shrinkage 3% Under 450			≥2.5	≥2.5	≥3.5	≥3.5	≥3.5	≥3.5
	After being humidifiedUnder23±2OC			≥2.0	≥2.2	≥2.8	≥2.8	≥2.8	≥3.0

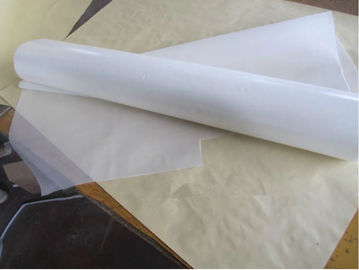

2450 CLASS H SILICONE VARNISHED FIBERGLASS CLOTH FOR INSULATION MOTOR 0

mobile: 86 139 0374 4063

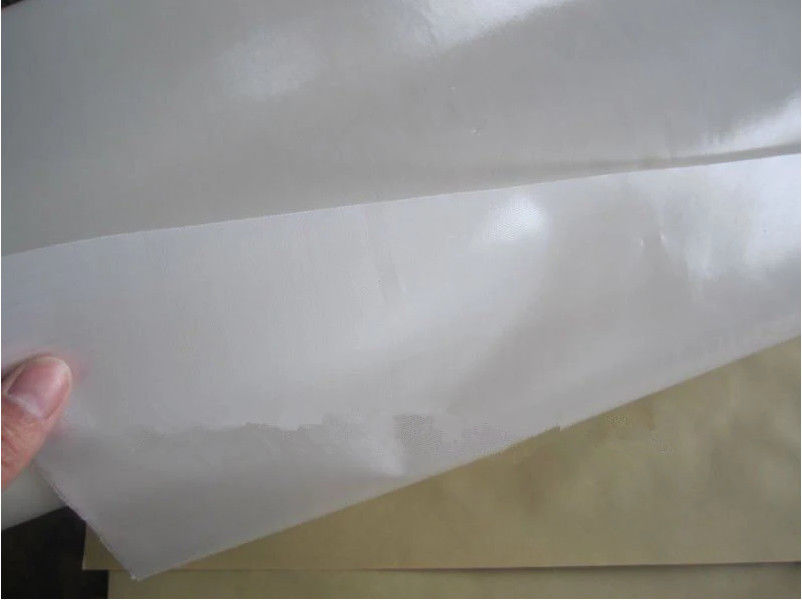

2450 CLASS H SILICONE VARNISHED FIBERGLASS CLOTH FOR INSULATION MOTOR 1

mail: creditzf@163.com

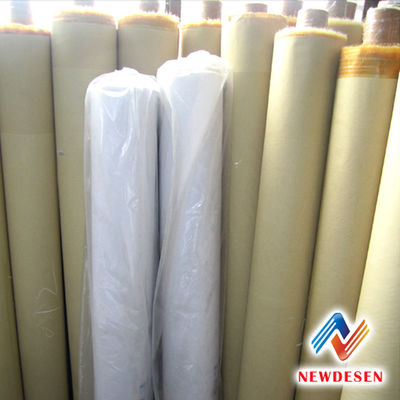

2450 CLASS H SILICONE VARNISHED FIBERGLASS CLOTH FOR INSULATION MOTOR 2
