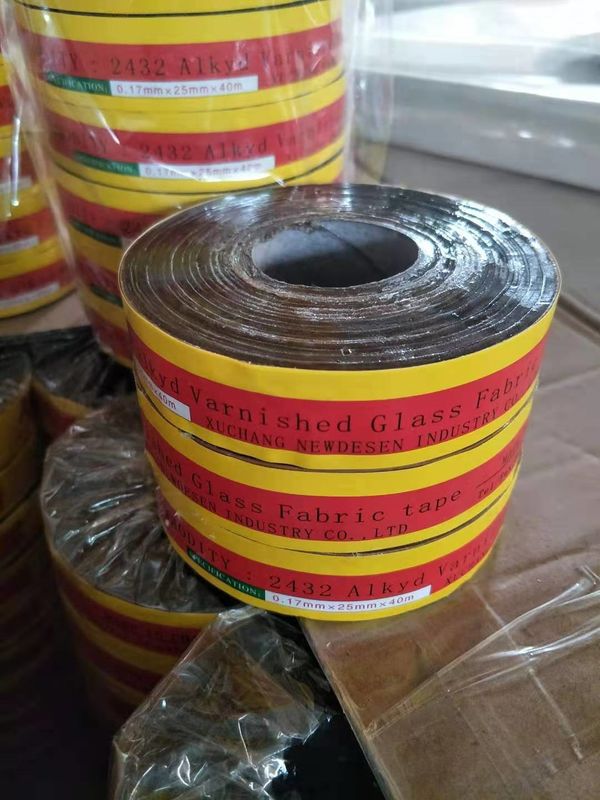

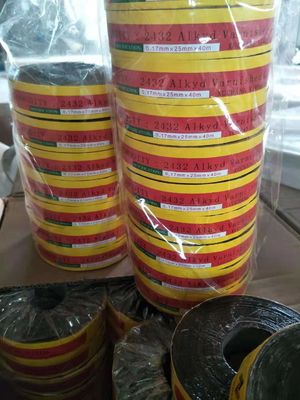

ALKYD FIBERGLASS INSULATION VARNISH TAPE 2432 IS USED HAND WINDING COIL
  • name
  • name
  • name
  • name

ALKYD FIBERGLASS INSULATION VARNISH TAPE 2432 IS USED HAND WINDING COIL

MOQ: 300KG
Price: 6.6USD~7.5USD/KG

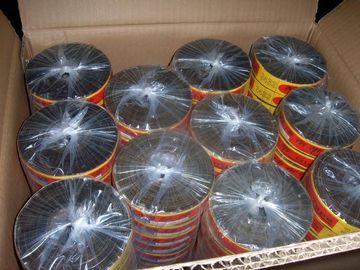

Standard Packaging: each roll weight 11~13kg, each carton 4rolls . final package into pallet
Delivery Period: 10~15days
Payment Method: L/C ,T/T, D/A, D/P ,100%LC ,Western union
Supply Capacity: 5000kg/15days
Detail Information
Product Description
Detail Information
Place of Origin
HENAN
Brand Name
NEWDESEN
Certification
ROHS, UL
Model Number
2440
RAW MATERIAL:
Alkyd Varnished , Fiberglass Cloth
Colour:
Yellow Or Dark Yellow
Thickness:
0.10~0.25mm
Width:
15~1250mm
Break Down Voltage:
5.0~10.0KV
Operating Temperature:
Class B 130degree
Model:
2432
Standard:
JB/T8148.1-1999
Product Description

2432 alkyd fiberglass varnish tape (cloth) ALKYD FIBERGLASS INSULATION VARNISH TAPE 2432

Heat-resistance: B class 130℃

Standard: JB/T8148.1-1999

Material : Non-alkali fiberglass cloth Coating: alkyd resin

Property: With high dielectric property and mechanical strength, Excellent oil resistance , Fungus and dampproof

Application: Mainly used for the insulating binding and liner of the electrical motor and appliances.

The specification available:

Thickness: 0.11mm 0.13mm 0.15mm 0.17mm 0.20mm 0.24mm

Width: 15mm; 20mm; 25mm; 50mm; 1000mm;1250mm (Special specification can be negotiated)

Pacage: Plastic or Carton



Number Test Content Technical Index Unit Test Result Report
1 Appearance Uniform paint film, no bubble, crease, injury and impurities / Approval Approval
2 width 20 mm 20 Approval
3 Standard thickness 0.12±0.012 mm 0.125 Approval
0.15±0.015 mm 0.153 Approval
0.18±0.018 mm 0.184 Approval

4



Breakdown Voltage

23±2℃

Mid-value

 0.12 ≥6.0 KV 6.2 Approval
0.15 ≥7.0 KV 7.4 Approval
0.18 ≥8.0 KV 8.5 Approval

Breakdown Voltage

23±2℃

Min-value

 0.12 ≥4.5 KV 4.8 Approval
0.15 ≥6.0 KV 6.7 Approval
0.18 ≥6.5 KV 6.6 Approval

Breakdown Voltage 130±2℃

Mid-value

 0.12 ≥3.0 KV 3.6 Approval
0.15 ≥3.5 KV 4.1 Approval
0.18 ≥4.0 KV 4.2 Approval
5

Tensile strength

Warp direction

 0.12 ≥85 N/10MM WIDTH 90 Approval
0.15 ≥105 115 Approval
0.18 ≥111 124 Approval

Tensile strength Weft

direction

 0.12 ≥52 N/10MM WIDTH 58 Approval
0.15 ≥65 72 Approval
0.18 ≥78 85 Approval



ALKYD FIBERGLASS INSULATION VARNISH TAPE 2432 IS USED HAND WINDING COIL 0

Mobile: 86 139 0374 4063

ALKYD FIBERGLASS INSULATION VARNISH TAPE 2432 IS USED HAND WINDING COIL 1

mail: creditzf@163.com

ALKYD FIBERGLASS INSULATION VARNISH TAPE 2432 IS USED HAND WINDING COIL 2

skype: zhufenglisa

ALKYD FIBERGLASS INSULATION VARNISH TAPE 2432 IS USED HAND WINDING COIL 3

wechat: 707073142

ALKYD FIBERGLASS INSULATION VARNISH TAPE 2432 IS USED HAND WINDING COIL 4

QQ:707073142



ALKYD FIBERGLASS INSULATION VARNISH TAPE 2432 IS USED HAND WINDING COIL 5



ALKYD FIBERGLASS INSULATION VARNISH TAPE 2432 IS USED HAND WINDING COIL 6
