Transformer alkyd varnish glass cloth electrical insulation material 2432 alkyd varnished fiberglass fabric tape

Product Details:

Place of Origin:	HENAN
Brand Name:	NEWDESEN
Certification:	ROHS, UL
Model Number:	2432

Payment & Shipping Terms:

Minimum Order Quantity:	300KG
Price:	6.6USD~7.5USD/KG
Packaging Details:	each roll weight 11~13kg, each carton 4rolls . final package into pallet
Delivery Time:	10~15days
Payment Terms:	L/C ,T/T, D/A, D/P ,100%LC ,Western union
Supply Ability:	5000kg/15days

Contact Now

Detailed Product Description

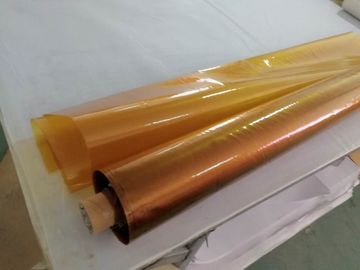

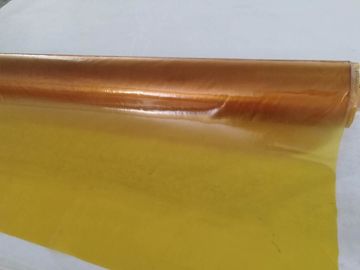

RAW MATERIAL:	Alkyd Varnished , Fiberglass Cloth	Colour:	Yellow Or Dark Yellow
Thickness:	0.10~0.25mm	Width:	15~1250mm
Break Down Voltage:	5.0~10.0KV	Operating Temperature:	Class B 130degree
Model:	2432	Standard:	JB/T8148.1-1999

2432 alkyd fiberglass varnish tape (cloth) ALKYD FIBERGLASS INSULATION VARNISH TAPE 2432

Heat-resistance: B class 130℃

Standard: JB/T8148.1-1999

Material : Non-alkali fiberglass cloth Coating: alkyd resin

Property: With high dielectric property and mechanical strength, Excellent oil resistance , Fungus and dampproof

Application: Mainly used for the insulating binding and liner of the electrical motor and appliances.

The specification available:

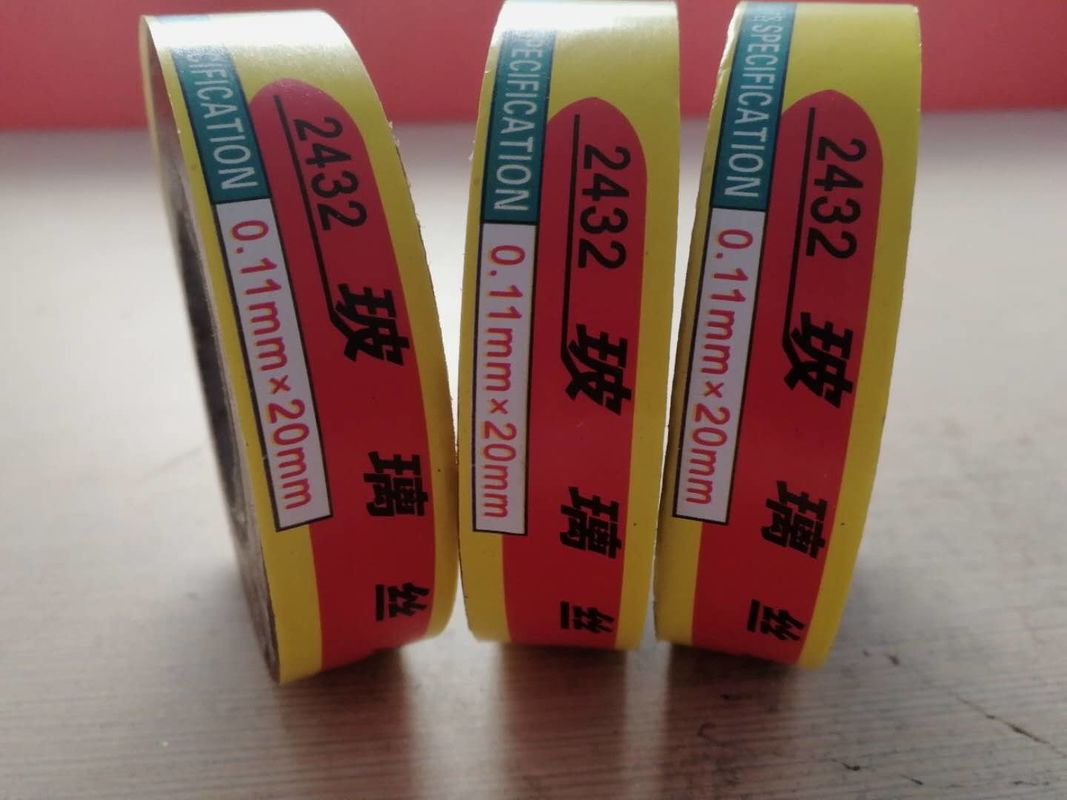

Thickness: 0.11mm 0.13mm 0.15mm 0.17mm 0.20mm 0.24mm

Width: 15mm; 20mm; 25mm; 50mm; 1000mm;1250mm (Special specification can be negotiated)

Pacage: Plastic or Carton

Features of Transformer alkyd varnish glass cloth electrical insulation material 2432 alkyd varnished fiberglass fabric tape

Alkyd varnish glass cloth is silk impregnated with varnish in the process of dipping in the oily paint and drying has many characteristic , such as excellent softness, electric property , good electrical ,mechanical performance,
Alkyd varnish glass cloth has really excellent softness , elec it feels soft when you touch it just as silk.

			Nominal thickness and tolerance
Property		Unit	0.10±0.0010	0.12±0.012	0.15±0.015		0.18±0.018	0.20±0.020	0.25±0.025
			Breakdown Voltage when temperature no less than 23±2℃
Oil resistance
			The film will not fall off
Moisture and heat resistance
Bending resistance			No cracking, the median of bending part breakdown voltage is not less than 50% of the flat part.
Thermogravimetric		%	≤15
Flexibility		mm	Agreement between supplier and buyer
Elongation		%	≥12
	lengthwise	N/10mm	≥65	≥85	≥105	≥111		≥118		≥131
	crosswise	Width	≥45	≥52	≥65	≥7.8		≥85		≥98
Tensile Strength	45° direction		≥40	≥60	≥65	≥6.5		≥70		≥80
	Before varnishing		≥20	≥25	≥30	≥30		≥30		≥30
oblique cutting
lap joint	After varnishing		≥20	≥20	≥20	≥30		≥30		≥30
	Mid	KV	≥5.0	≥6.0	≥7.0	≥8.0		≥9.0		≥10.0
BreakdownVoltage
23±2℃	Min		≥4.0	≥4.5	≥6.0	≥6.5		≥7.0		≥8.0
Under 130±2℃	Mid		≥2.0	≥3.0	≥3.0	≥4.0		≥4.5		≥5.0

After Elongation	Min			≥3.0	≥4.0	≥4.5		≥5.0
