INSULATION MATERIAL 2310 OIL SYNTHETIC FIBRE VARNISHED CLOTH

MOQ:	300KG
Price:	7.2USD~8.6USD/KG

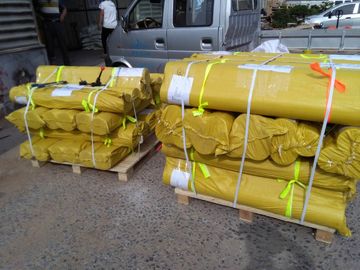

Standard Packaging:	each roll weight 11~13kg, each carton 4rolls . final package into pallet
Delivery Period:	10~15days
Payment Method:	L/C ,T/T, D/A, D/P ,100%LC ,Western union
Supply Capacity:	5000kg/15days

Detail Information

Product Description

Detail Information

Place of Origin

HENAN

Brand Name

NEWDESEN

Certification

ROHS, UL

Model Number

RAW MATERIAL:

Oil Varnish With Synthetic Fibre

Colour:

Yellow Or Dark Yellow

Thickness:

0.08~0.20mm

Width:

15~1300mm

Break Down Voltage:

4.5~8.7KV

Operating Temperature:

Class A 105 Degree

Model:

2310 & 2312

Standard:

JB/T 7772-1995

Product Description

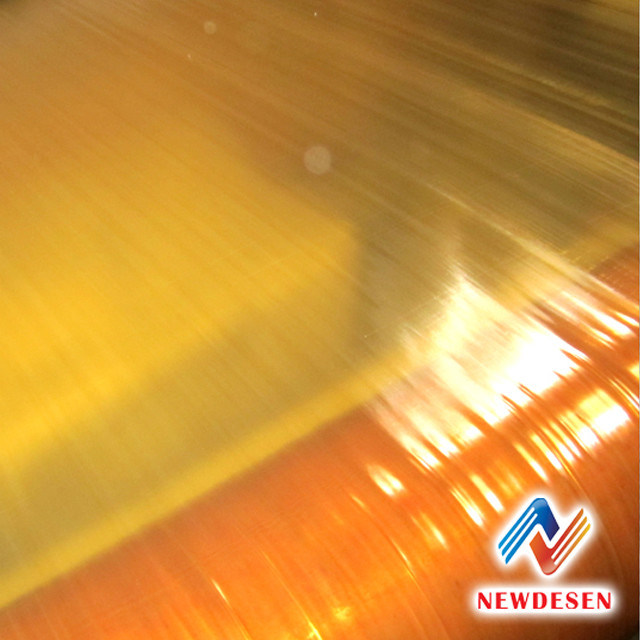

2310 2312 Oil varnished synthetic fabric.

High quality synthetic fabric is used as basic materials ,we get it dipped in a high-aggregational Oil resin then get it drying .its capability is better than item 2210 ,2212 ,but at a lower price .

heat-resistant :105, class A insulation

availability :thickness:0.08,0.10,0.12,0.15mm

Form: roll (width 900-1500mm), strips (width﹥10mm)

warranty period ;six months

Item	Checking measure			unit	Requirments
1	appearance				Uniform lacquer film ,no air bladder ,no crease ,or any other defect . lacquer film can’t be felt when open ,with neat cutting of the whole roll
2	width			mm	negotiable
3	Normal thickness			mm	0.12±0.020
4	thermoplastic (70±2℃,24h)			/	Lacquer film no felt ,no break off
5	Shrinkage 105±2℃,6h)(average )			%	≤4
6	Volume Resistance			Ω．m	Normality ≥1.0×1011
7	Breakdown voltage	room temperature	Medium	KV	≥7.2
		room temperature	min		≥4.8
		heating	medium		≥5.2
		heating	min		≥2.5
		After bending	medium		≥5.0
		After bending	min		≥2.5
