Diamond Dotted insulation paper of Electrical insulation paper
  • name
  • name
  • name

Diamond Dotted insulation paper of Electrical insulation paper

MOQ: 500KG
Price: 2.75USD
Standard Packaging: pallet size 1.1*1.1*1.15m , each pallet can hold 800kg .
Payment Method: D/A, L/C, D/P, T/T, Western Union
Supply Capacity: 1000KG PER DAY
Detail Information
Product Description
Detail Information
Place of Origin
XUCHANG
Brand Name
NEWDESEN
Certification
SGS, ISO2000,
Model Number
DDP INSULATION PAPER
BASE PAPER:
ELECTRICAL CABLE PAPER
RESIN:
Modified Epoxide Resin
Resin Color:
Original Color, Nature Color
Can Provide Thickness:
0.08~0.50mm
Width:
960~1250mm
Roll Weight:
50~200kg Per Roll
Product Description

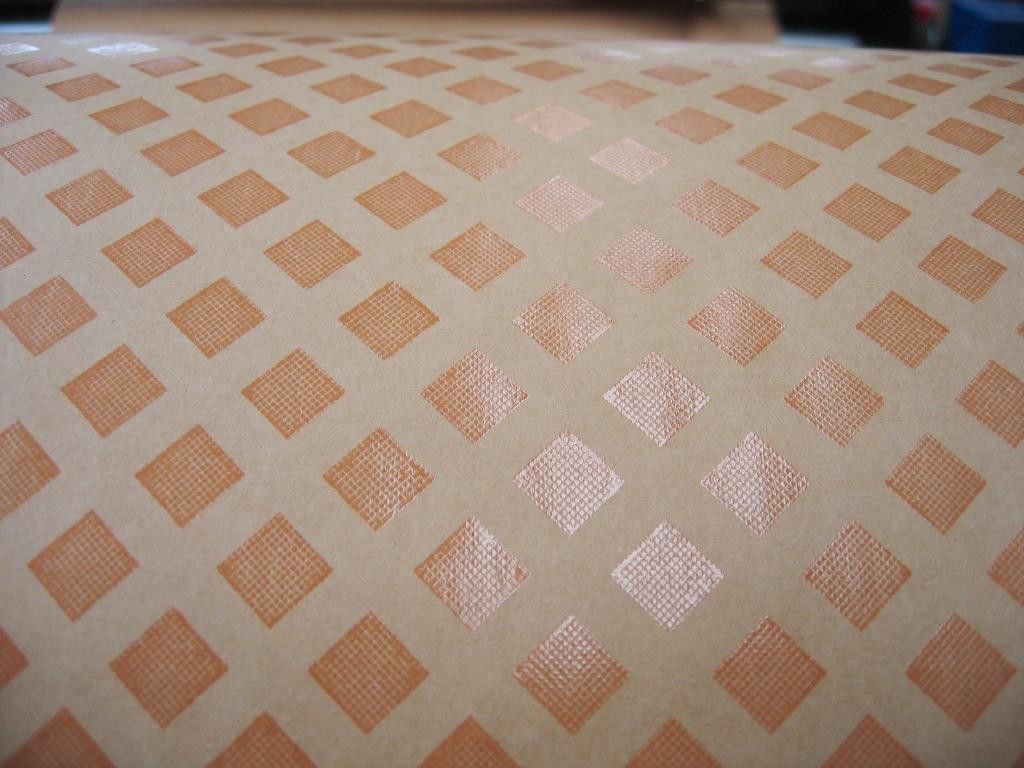

Diamond Dotted Insulation Paper( DDP) is made of electrical insulation paper with Diamond-shape epoxy resin dotted in both sides. The epoxy resin used in DDP contains a kind of incubative hardener material, it is a dry ad crisp material at normal temperature

This product has good dielectric properties and good machenical properties after being heat-solidification. It can be used as coils and between layers of oil immerged power and distribution transformers.
Thickness: 0.08mm 0.13mm 0.15mm 0.17mm 0.20mm 0.25mm 0.30mm  0.40mm  0.45mm  0.50mm
Width: 960mm 1000mm 1020mm 1050mm  1220mm 1250mm

Roll Diameter--- 280-330mm

Core Diameter --- 76±2mm

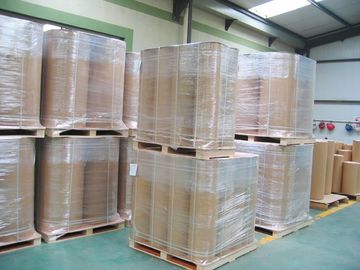

PACAGE WITH PALLET
Wechat: 707073142, Whastsapp 86 139 0374 4063





Diamond Dotted insulation paper of Electrical insulation paper 0







No Test items Unit Require
1 thickness mm 0.13
2 Base material tightness g/m3 0.85-1.10
3 Moisture % 4.0-8.0
4 Oil absorption % 20
5 Tensile strength Vertical N/10mm 110
Horizontal 50
6 Tear strength Vertical MN 900
Horizontal 1000
7 Breakdown Voltage In air KV 1.37
In oil 7
8 Adhesive strength Normal state KPA 650
100℃±2℃ 400

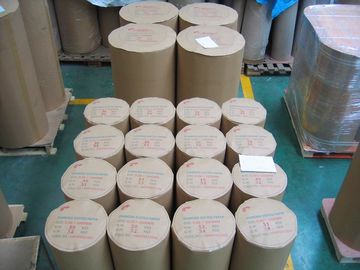

Diamond Dotted insulation paper of Electrical insulation paper 1



Diamond Dotted insulation paper of Electrical insulation paper 2



Diamond Dotted insulation paper of Electrical insulation paper 3
