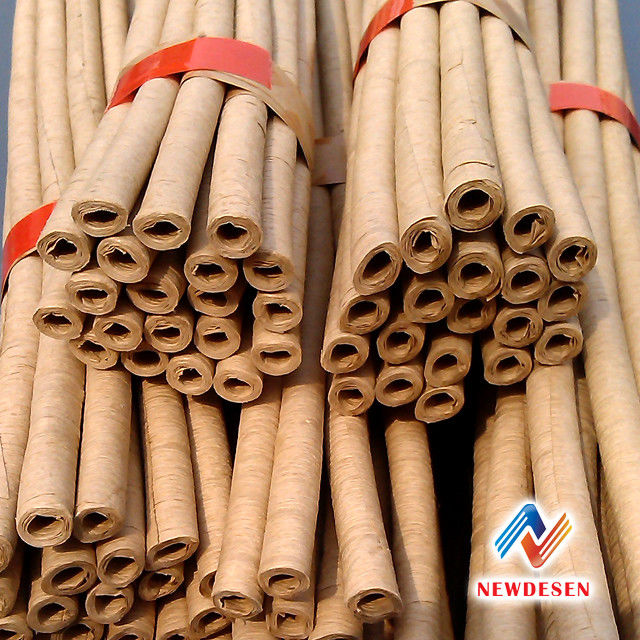

ELECTRICAL INSULATION FLEXIBLE REPE PAPER TUBE FOR TRANSFORMER

MOQ:	5000pcs
Price:	USD 0.1usd~1.0usd per pcs
Standard Packaging:	Waterproof film with carton then package into pallet
Delivery Period:	5~7days
Payment Method:	L/C, D/P, T/T, Western Union
Supply Capacity:	100000 pcs per week

Detail Information

Product Description

Detail Information

Place of Origin

HENAN

Brand Name

NEWDESEN

Certification

SGS, ROHS ,CCC

Model Number

ELECTRICAL CRINKLED INSULATING PAPER TUBE

MIN ID:

MAX ID:

MIN OD:

MAX OD:

Wall Thickness:

1mm~8mm Up To Customer Request Make That

LENGTH:

1000mm

Material:

Crinkled Insulating Paper

Insulating Package Or Insulation Protection

Color:

Nature

Logo:

Can Be Customer Logo

Product Description

Electrical insulation crepe paper produced by 100% imported pure pulp,through special wrinkling process, characterized by excellent oil-soluble performance, widely applied for the insulation of lapped parts of oil-transformers, mutual inductors and reactors, and wrapping of down-lead parts. helps to improve the electrical and mechanical performance.

ITEM	Standard value
Thickness: mm(crepe paper single layer)	0.35±0.05	0.50±0.08
Tensile strength, MD/CD > KN/M	MD 1.96 / CD 1.3
Elongation	>30%
Apparent density: g/cm3(Base paper)	0.75 to 0.85
Moisture content , ≤	8%	10%
PH water extract:	6.0 to 8.0
Ash content,% ≤	1%
Conductivity of aqueous extract: Ms/m	<10	≤ 8
Dielectric breakdown: crepe paper (volts/single layer, dry test)	950	1000
Dielectric breakdown strength (In oil)	≥20Mv/M
Length : mm	±20mm
Inner diameter:	±5%
Outer diameter:	±5%

Storage: Store in a dry and clean room, without being pressed,and keep aways from fire or heat,or in the sun.
