DIAMOND PATTERN ADHESIVE INSULATION PAPER USE FOR Oil immersible power transforme
  • name
  • name
  • name
  • name
  • name

DIAMOND PATTERN ADHESIVE INSULATION PAPER USE FOR Oil immersible power transforme

MOQ: 500KG
Price: 2.75USD
Payment Method: D/A, L/C, D/P, T/T, Western Union
Supply Capacity: 1000KG PER DAY
Detail Information
Product Description
Detail Information
Place of Origin
XUCHANG
Brand Name
NEWDESEN
Certification
SGS, ISO2000,
Model Number
DDP INSULATION PAPER
BASE PAPER:
ELECTRICAL CABLE PAPER
RESIN:
Modified Epoxide Resin
Resin Color:
Original Color, Nature Color
Can Provide Thickness:
0.08~0.50mm
Width:
960~1250mm
Roll Weight:
50~200kg Per Roll
Product Description

Diamond pattern adhesive insulating paper is a type of insulation material coating special modified epoxy resin one electrical insulating materials.

It is widely applied in inter-layer insulation and turn insulation of oil-immersed power transformers. During application the coated layer starts to melt under certain temperature in the process of coildrying and results in adhesion effect. As temperature rises, it starts to solidify and makes coils’ adjacent layers reliably bond into a fixed unit. The adhesive strength of epoxy resin is strong enough to prevent the displacement of coil layers in case of short-circuit. so as to ensure the long-term mechanical and electrical performance of insulation structure Product Solidification conditions: firstly ,temperature rises to 125±5℃ after maintaining 90±5℃ for three hours and then the product completely solidifies after maintaining for six fours

Wechat: 707073142, Whastsapp 86 139 0374 4063

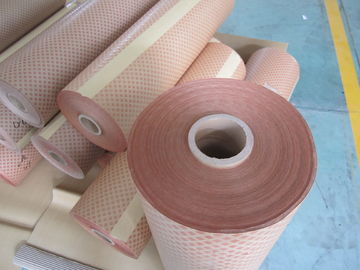

DIAMOND PATTERN ADHESIVE INSULATION PAPER USE FOR Oil immersible power transforme 0

Name of goods:

Diamond Pattern Paper, Diamond Dotted Insulating Presspaper, Diamond Dotted paper, DDP, Double Sided

Diamond Pattern Resin Coated Paper

Dimensions

Thickness(mm) ---0.08mm, 0.13mm ,0.15mm, 0.18mm , 0.20mm 0.25mm ,0.35mm ,0.40mm 0.45mm, 0.50mm

Width (mm)---960,1000,1020,1250

We also can produce Width of DDP according to customer’s requirements

Roll Diameter--- 280-330mm

Core Diameter --- 76±2mm



No Test items Unit Require
1 thickness mm 0.13
2 Base material tightness g/m3 0.85-1.10
3 Moisture % 4.0-8.0
4 Oil absorption % 20
5 Tensile strength Vertical N/10mm 110
Horizontal 50
6 Tear strength Vertical MN 900
Horizontal 1000
7 Breakdown Voltage In air KV 1.37
In oil 7
8 Adhesive strength Normal state KPA 650
100℃±2℃ 400

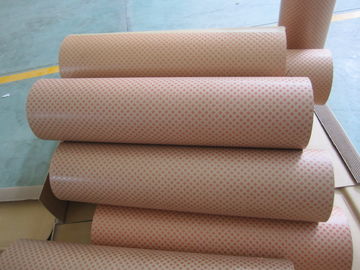

DIAMOND PATTERN ADHESIVE INSULATION PAPER USE FOR Oil immersible power transforme 1

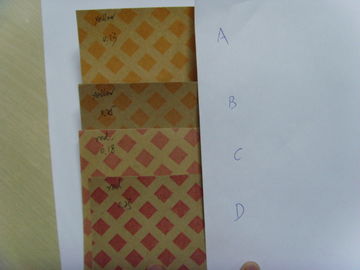

DIAMOND PATTERN ADHESIVE INSULATION PAPER USE FOR Oil immersible power transforme 2
