2740 F GRADE ACRYLIC RESIN COATED WITH FIBERGLASS SLEEVING

MOQ:	5000METER/SIZE
Price:	0.025~0.029
Standard Packaging:	export package all use carton package. some time will save the space will use woven bag, In a word, we always meet the requirements of our clients.
Delivery Period:	when get TT payment into 20days delivery to Chinese port
Payment Method:	L/C, D/A, D/P, T/T, Western Union
Supply Capacity:	150cartons need production time 10~13days

Detail Information

Product Description

Detail Information

Place of Origin

HENAN

Brand Name

NEWDESEN

Certification

ISO2008:1992, SGS

Model Number

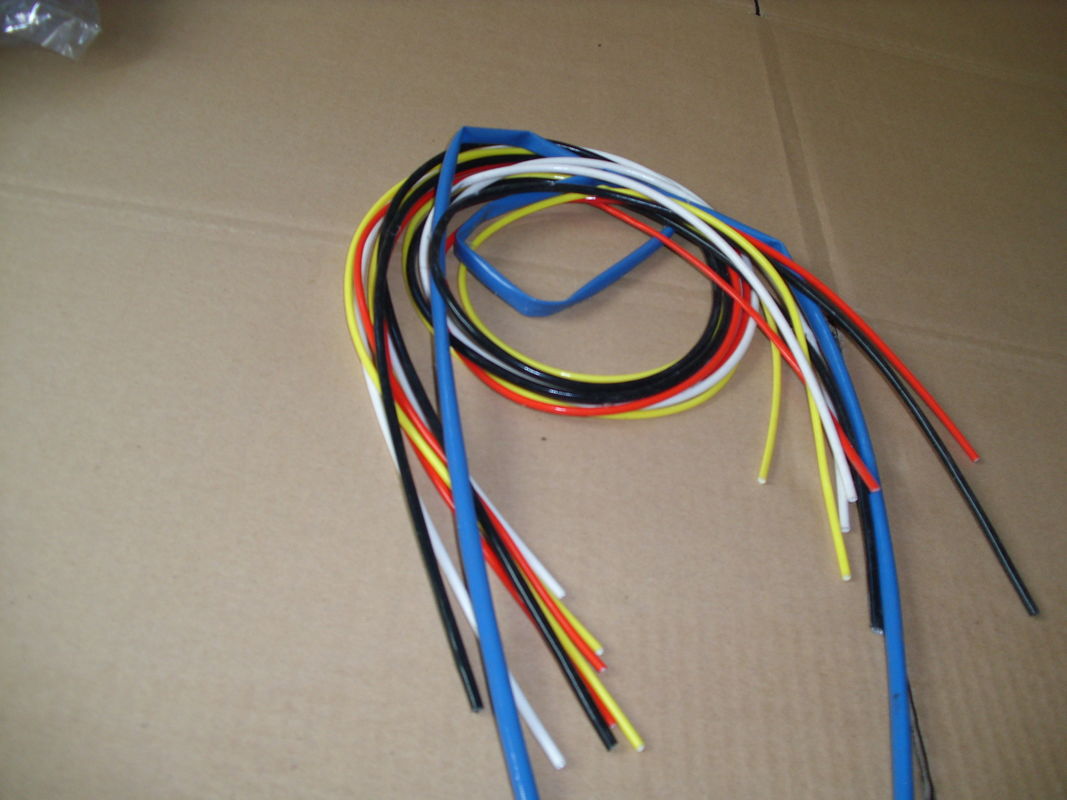

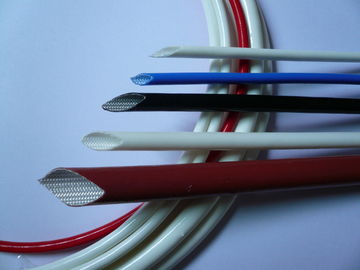

Color:

WHITE, BLACK, YELLOW, RED, GREEN, BLUE ,GRAY,

Diameter:

0.5~50mm

Rated Voltage:

1.5kv,2.5kv, 4.0kv, 4.0kv (ANTIFLAMING) 7.0kv

Material:

ACRLIC RESIN With Non-alkali Fiberglass Woven Pipe.

Packing:

Metre/PCS Or Metre/Roll

Temp:

155 Degree

Class:

Usage:

Cable Cover Insulation

HS CODE:

701990

STANDARD:

JB/T7117-1986

Product Description

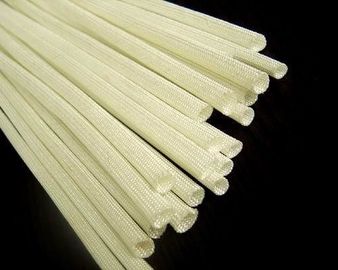

2740 F GRADE FIBERGLASS SLEEVING COATED WITH ACRYLIC RESIN IS MANUFACTURED WITH NON-ALKALI FIBERGLASS BRAIDED SLEEVING AND COATED WITH A LAYER OF MODIFIED ACRYLIC RESIN AND THEN THERMOSETTED TO FROM F GRADE INSULATING SLEEVING.IT POSSESSES RELIABLE HEAT RESISTANCE,GOOD QUALITIES OF DIELECTRIC,FAIR SOFTNESS AND ELASTICITY,FLAME RESISTANCE,IT CAN BE USED FOR WIRING INSULATION AND AS MECHANIC PROTECTION FOR MOTORS ,ELECTRICAL APPLIANCES, ELECTRICAL INSTRUMENTS ,WIRELESS SETS AND DOMESTIC ELECTRICAL APPLIANCES.

2740 Acrylic fiberglass sleeving

Heat-resistance: F class 155℃

Breakdown Voltage:1200v 2500v 4000v 7000v

Standard: JB/T7117-1986

Material : Non-alkali fiberglass braided sleeving

Coating: Acrylic varnish

Property: With excellent oil ,heat and benzene resistance , high dielectric property and elasticity.

Application: it can be used for the wiring insulation and mechanical protection for motors, electrical appliances,electrical instruments, wireless sets .

The specification available:

I.D.: 1-50mm

Length: in one meter or in coils. 50m 100m for one coils, also can be accroding to your request

Pacage: Plastic Bags or Carton

2740 Fiberglass sleeving Coated with Acrylic resin

Inner Diametor		Wall Thickness
Nominal	Tolerance	Minimun	Maximun
1; 1.5	±0.15	0.20	0.75
2;2.5	±0.20	0.20	0.75
3	±0.25	0.20	0.75
3.5;;4; 5; 6	±0.25	0.30	0.75
7; 8;	±0.50	0.30	0.75
9; 10; 12; 14; 16; 18; 20;	±0.50	0.40	0.9
23; 25;27;	±0.50	0.4	1.0
Property requirements
Resistance to Soldering heat		Pass (only for sleeving haveing nominal bore Diameter up to and including 5mm)
Insulation Resistance At room temp		10³MΩ
Flame propagation		Method A, 60s mas in addition ,the indicator flag on any one of the three test specimens shall not be burned nor shall flaming or glowing particles or flaming draps ignite the cotton
Oil resistance		The coating should not crack or appear detached after the sleeving has been dipped in transformer oil for 24h at a temperature of 105±2℃,but the colour of the sleeving is allowed to grow darker.
Benzene resistance		The coating should not be sticky or show delamination when the sleeving has been kept in methylbenzene at a normal temperature for 4hours
Thermal endurance,temperature index at 20000hours		155℃
Breakdown Voltage kv Straight mandrel with 25mm electrode	Room temp	Elevated temp	Damp heat
Central value	4.0	1.6	1.2
Lowest individualvalue	2.5	1.0	0.8

Storage Conditions :

Stored in a clean,dry,ventilated place,keep away from fire and heating,avoid direct sunlight.
