| Tempat asal: | Henan |
| Nama merek: | NEWDESEN |
| Sertifikasi: | ISO2008:1992, SGS |
| Nomor model: | 2740 |
| Kuantitas min Order: | 5000METER/UKURAN |
|---|---|
| Harga: | 0.025~0.029 |
| Kemasan rincian: | paket ekspor semua menggunakan paket karton. beberapa waktu akan menghemat ruang akan menggunakan ta |
| Waktu pengiriman: | ketika mendapatkan pembayaran TT dalam 20 hari pengiriman ke pelabuhan Cina |
| Syarat-syarat pembayaran: | L/C, D/A, D/P, T/T, Western Union |
| Menyediakan kemampuan: | 150 karton membutuhkan waktu produksi 10 ~ 13 hari |
| Warna: | PUTIH, HITAM, KUNING, MERAH, HIJAU, BIRU, ABU-ABU, | Diameter: | 0,5~50mm |
|---|---|---|---|
| Nilai Tegangan: | 1.5kv,2.5kv, 4.0kv, 4.0kv (ANTIFLAMING) 7.0kv | Bahan: | RESIN ACRLIC dengan pipa anyaman fiberglass non-alkali. |
| Sedang mengemas: | Meter/PCS atau Meter/Roll | Suhu: | 155 derajat |
| Kelas: | F | Penggunaan: | Isolasi Penutup Kabel |
| Kode Hs: | 701990 | Standar: | JB/T7117-1986 |

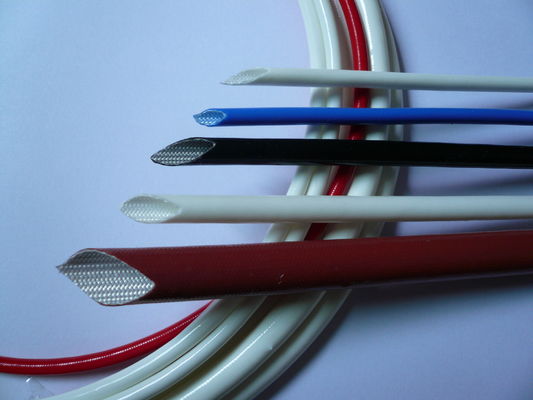

2740 F GRADE FIBERGLASS SLEEVING COATED WITH ACRYLIC RESIN IS MANUFACTURED WITH NON-ALKALI FIBERGLASS BRAIDED SLEEVING AND COATED WITH A LAYER OF MODIFIED ACRYLIC RESIN AND THEN THERMOSETTED TO FROM F GRADE INSULATING SLEEVING.IT POSSESSES RELIABLE HEAT RESISTANCE,GOOD QUALITIES OF DIELECTRIC,FAIR SOFTNESS AND ELASTICITY,FLAME RESISTANCE,IT CAN BE USED FOR WIRING INSULATION AND AS MECHANIC PROTECTION FOR MOTORS ,ELECTRICAL APPLIANCES, ELECTRICAL INSTRUMENTS ,WIRELESS SETS AND DOMESTIC ELECTRICAL APPLIANCES.

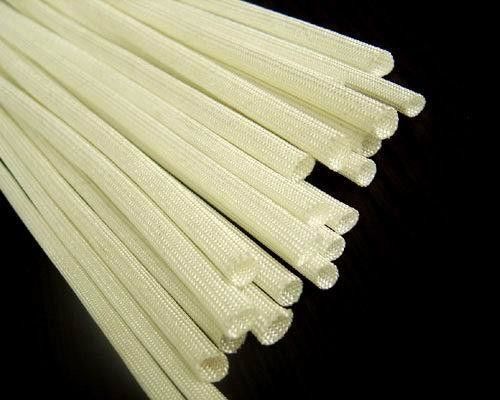

2740 Acrylic fiberglass sleeving
Heat-resistance: F class 155℃
Breakdown Voltage:1200v 2500v 4000v 7000v
Standard: JB/T7117-1986
Material : Non-alkali fiberglass braided sleeving
Coating: Acrylic varnish
Property: With excellent oil ,heat and benzene resistance , high dielectric property and elasticity.
Application: it can be used for the wiring insulation and mechanical protection for motors, electrical appliances,electrical instruments, wireless sets .
The specification available:
I.D.: 1-50mm
Length: in one meter or in coils. 50m 100m for one coils, also can be accroding to your request
Pacage: Plastic Bags or Carton
| Inner Diametor | Wall Thickness | ||
| Nominal | Tolerance | Minimun | Maximun |
| 1; 1.5 | ±0.15 | 0.20 | 0.75 |
| 2;2.5 | ±0.20 | 0.20 | 0.75 |
| 3 | ±0.25 | 0.20 | 0.75 |
| 3.5;;4; 5; 6 | ±0.25 | 0.30 | 0.75 |
| 7; 8; | ±0.50 | 0.30 | 0.75 |
| 9; 10; 12; 14; 16; 18; 20; | ±0.50 | 0.40 | 0.9 |
| 23; 25;27; | ±0.50 | 0.4 | 1.0 |
| Property requirements | |||
| Resistance to Soldering heat | Pass (only for sleeving haveing nominal bore Diameter up to and including 5mm) | ||
|
Insulation Resistance At room temp |
10³MΩ | ||
| Flame propagation | Method A, 60s mas in addition ,the indicator flag on any one of the three test specimens shall not be burned nor shall flaming or glowing particles or flaming draps ignite the cotton | ||
| Oil resistance | The coating should not crack or appear detached after the sleeving has been dipped in transformer oil for 24h at a temperature of 105±2℃,but the colour of the sleeving is allowed to grow darker. | ||
| Benzene resistance | The coating should not be sticky or show delamination when the sleeving has been kept in methylbenzene at a normal temperature for 4hours | ||
| Thermal endurance,temperature index at 20000hours | 155℃ | ||
| Breakdown Voltage kv Straight mandrel with 25mm electrode | Room temp | Elevated temp | Damp heat |
| Central value | 4.0 | 1.6 | 1.2 |
| Lowest individualvalue | 2.5 | 1.0 | 0.8 |
Storage Conditions :
Stored in a clean,dry,ventilated place,keep away from fire and heating,avoid direct sunlight.
