| Place of Origin: | HENAN |
| Brand Name: | NEWDESEN |
| Certification: | SGS, ROHS ,CCC |
| Model Number: | ELECTRICAL CRINKLED INSULATING PAPER TUBE |
| Minimum Order Quantity: | 5000pcs |
|---|---|
| Price: | USD 0.1usd~1.0usd per pcs |
| Packaging Details: | Waterproof film with carton then package into pallet |
| Delivery Time: | 5~7days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 100000 pcs per week |
| MIN ID: | 4mm | MAX ID: | 80mm |
|---|---|---|---|
| MIN OD: | 5mm | MAX OD: | 86mm |
| Wall Thickness: | 1mm~8mm Up To Customer Request Make That | LENGTH: | 1000mm |
| Material: | Crinkled Insulating Paper | USE: | Insulating Package Or Insulation Protection |
| Color: | Nature | Logo: | Can Be Customer Logo |

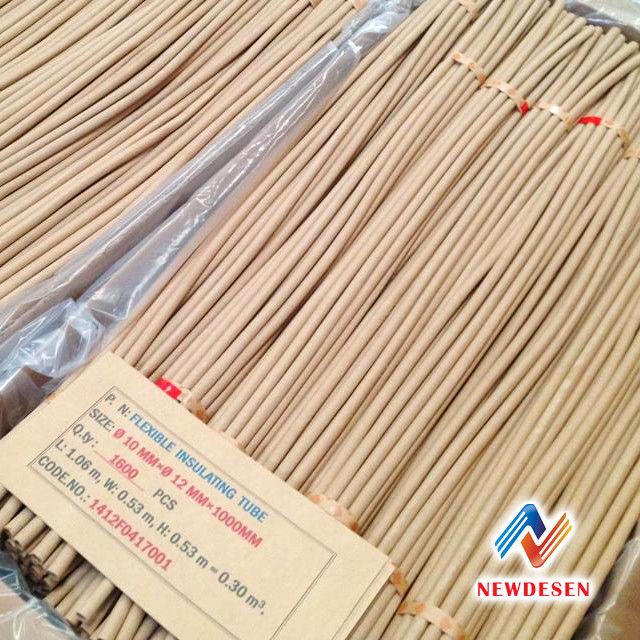

Electrical Crinkled Insulating Paper Tube made of electrical crinkled insulating paper through special process,is mainly used as insulating package materials of leads inside oil-immersed transformers.
Can process crinkled insulating paper tubes of various specifications according to customers' requirements
Storage: Store in a dry and clean room, without being pressed,and keep aways from fire or heat,or in the sun.
Application: Electrical insulation crepe paper tube for Oil -Transformer
Place of Origin: China (Mainland)
Brand Name:NEWDESEN
Product name: insulation crepe paper tube
Material: cable paper
Construction: 4-20 layers
Insulation class: A (105-ºC)
Length: 1000 -- 2000 mm or customized Color: Natural or Light brown
OEM, ODM service:
Avaliable Sample: Free
Inner Diameter: 3~50mm Outer Diameter: 8~54mm
Thickness of raw material: 0.05mm , 0.075mm,0.08mm,0.13mm
IEC Standard: IEC-60554
Material: wood pulp
Tensile Strength: 10.4Mpa
Product Package: wooden pallet
Technical data
Item |
Unit |
Thickness of raw material | ||||
| 0.05mm | 0.075mm | 0.08mm | 0.13mm | |||
| Thickness of crepe paper | mm | 0.35±0.05 | 0.48±0.08 | 0.80.60±0.08 | 0.80±0.10 | |
| Ash content | % | ≤ 0.7 | ≤ 0.7 | ≤ 1.0 | ≤ 1.0 | |
| Moisture | % | 6.0-9.0 | ||||
| Diethyl ether | % | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.5 | |
| Water extract PH value | 6.0-8.0 | |||||
| Polluted oil | % | ≤0.1 | ||||
Tensile strength |
MD | KN/M | ≥1.96 | ≥2.6 | ≥3.0 | ≥3.3 |
| TD | KN/M | ≥1.3 | ≥1.96 | ≥2.3 | ≥2.7 | |
| Wrinkling | % | ≥ 50 | ||||
| Breakdown voltage | V/layer | ≥950 | ≥1000 | ≥1000 | ≥1000 | |
| Electric conductivity | ms/m | ≤8.0 | ≤8.0 | ≤9.0 | ≤10.0 | |
