6520 DEEP BLUE RESSPAPER WITH MYLAR COMPOSITE INSULATION PAPER
  • name
  • name
  • name

6520 DEEP BLUE RESSPAPER WITH MYLAR COMPOSITE INSULATION PAPER

MOQ: 1000KG
Price: 1.75~2.1USD/KG
Standard Packaging: Cartons size 28*28*1002mm, each roll weight 55kg, 16roll/pallet, pallet size 1.1*1.1*1.15m
Delivery Period: 5~8days
Payment Method: D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Capacity: 1500KG/DAY
Detail Information
Product Description
Detail Information
Place of Origin
XUCHANG
Brand Name
NEWDESEN
Certification
ROHS ,UL
Model Number
6520
Model:
6520
Material:
PRESSPAPER /polyester Film
Colour:
GREEN, BROWN, DEEP BLUE,
Thickness:
0.13`0.50mm
Width:
1000mm
Brown Down Voltage:
5~7KV
Mylar Thickness:
0.036mm
Brand:
NEWDESEN
Stardand:
JB/T4059-1999
Ooperating Temperature:
120 Degree ,Class E
Product Description

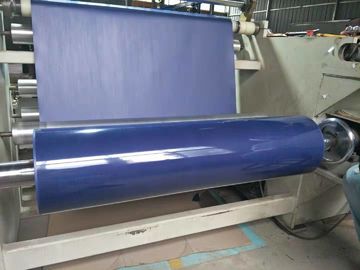

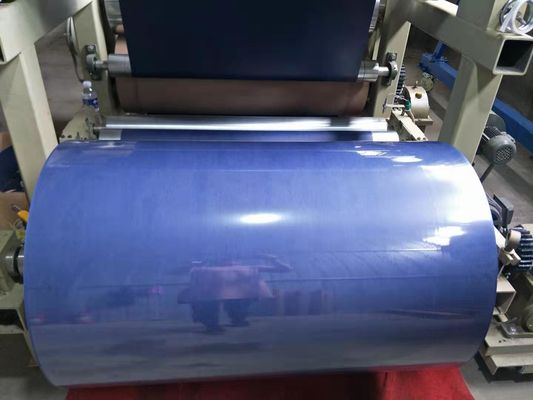

6520 flexible composite deep blue insulating paper composite foil is the composite of 6020 polyester film painted with adhensives and electrical-insulation presspaper. It is suitable to be used in electric machine and electric equipment for insulating groove or liner and for insulation between wire circles.



Heat-resistance: E class 120℃
Standard: JB/T4095-1991
Material : Polyester film and fish paper



PROPETRY:

  • The surface is smooth and flat.

  • high dielectric property and mechanical strength.





Storage life---1 year
The specification available:

Thickness: 0.13Mmm  0.15mm 0.17mm 0.20mm 0.23mm 0.25mm 0.28mm 0.30mm 0.35mm 0.40mm 0.45mm 0.50mm

Width: 1000m color: blue, green, cyan, brown
Pacage: Plastic Bags or Carton



XUCHANG NEWDESEN INDUSTRY CO.,LTD

NANHAI STREET, DONGCHENG DISTRICT ,XUCHANG ,HENAN,CHINA

TELP.86 139 0374 4063 FAX.86 374 222 9868

Email: creditzf@163.com

6520 Polyester film insulation paper (Deep blue color)

Test items Unit index
Thickness mm 0.15 0.17 0.20 0.22 0.25 0.27 0.30 0.40 0.50 0.60
Thickness tolerance % ±10 ±10 ±10 ±10 ±10 ±10 ±10 ±10 ±10 ±10
Norminal Grammage g/m2 190±28 215±32 250±38 275±40 310±46 330±50 370±55 490±73 610±90 730±110
Polyester film thickness um 36
Tensile strength ≥ MD no bending

N/10mm

width

 ≥135 ≥150 ≥170 ≥190 ≥210 ≥240 ≥270 ≥320 ≥410 ≥500
MD after bending ≥80 ≥90 ≥100 ≥120 ≥130 ≥140 ≥160 ≥230 ≥300 ≥370
TD no bending ≥80 ≥90 ≥100 ≥110 ≥120 ≥130 ≥150 ≥200 ≥260 ≥320
TD after bending ≥60 ≥60 ≥80 ≥80 ≥80 ≥90 ≥100 ≥130 ≥170 ≥200

Elongation

at break ≥

 MD % ≥2 ≥3
TD ≥8 ≥10
Break down Voltage No bending kv ≥7.0
After bending ≥6.0
Bonding Strength at room temperature ----- Not delamination

Thermal bonding

(130±2)℃,10min

 --- Not layered, not blister, not adhesive glue flow problems

Storage Conditions :

Stored in a clean,dry,ventilated place,keep away from fire and heating,avoid direct sunlight.
