| Place of Origin: | HENAN |
| Brand Name: | NEWDESEN |
| Certification: | ROHS |
| Model Number: | HEAT SHRINK TUBE |
| Minimum Order Quantity: | 1000M PER SIZE |
|---|---|
| Price: | 0.015~0.025usd/m |
| Packaging Details: | PLASTIC BAG WITH CARTON |
| Delivery Time: | after get TT payment into 20days delivery to Chinese port |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 15~20days will finish 20ft container sleeving |
| COLOUR: | WHITE, BLACK, RED, YELLOW ,BLUE，GREEN | DIAMETER: | 1~200MM |
|---|---|---|---|
| RADIAL SHRINKAGE: | 2：1 | APPLICATION: | HIGH TEMPERATURE |
| OPERATING TEMPERATURE: | -55~125℃ |

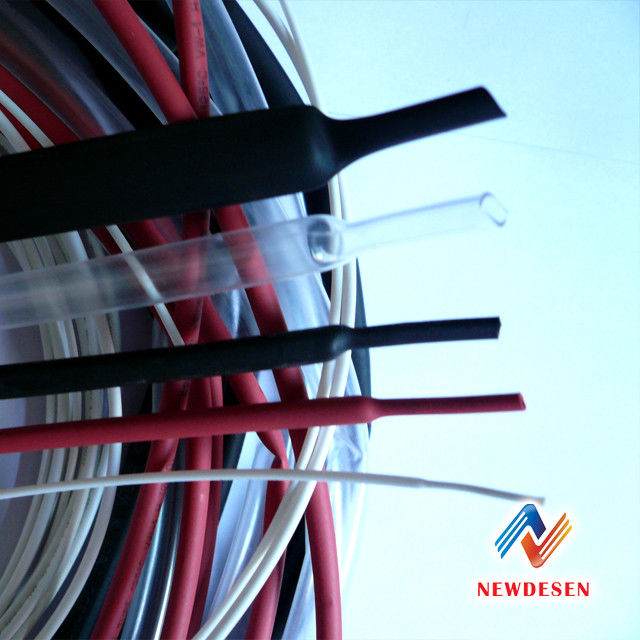

Heat shrinkable tube:
1.Product description:
The heat shrinkable tube is characterized by halogen-free, Flame resistant.This kind of heat shrinkable tube environmentally friendly, soft, Insulation, shrink at low temperature. Voltage level of this heat shrinkable tube is 600V.
2.Application of heat shrinkable tube:
The heat shrinkable tube is for insulation and protection of components, terminals, wiring connectors and wiring strapping, marking and identification mechanical protection.
3.Performance of heat shrinkable tube:
| Pliancy | Flexible |
| Wall Type | Single |
| Radial shrinkage (%) | ≥50 |
| Longitudinal shrinkage(%) | ≤±5 |
| Tensile Strength(MPa) | ≥10.4 |
| Elongation(%) | ≥200 |
| Tensile Strength after aging(MPa) | ≥7.3(Test condition:158.0±1.0℃,168hrs) |
| Elongation after aging(%) | ≥100(Test condition:158.0±1.0℃,168hrs) |
| With heart rate/concentricity rate(%) | ≥65 |
| Volume resistance(Ω.m) | ≥1014 |
| Breakdown Voltage (kv/mm) | ≥15 (60s) no breakdown |
| Corrosion | pass(Test condition:158.0±1.0℃,168hrs) |
| Copper stability | Elongation≥100(Test condition:158.0±1.0℃,168hrs) |
4.Specification of heat shrinkable tube:
| Item | Specification | Size Before shrinkage | Size After shrinkage | Packaging (m/roll) | ||
| Inner Dia (mm) | Wall thickness (mm) | Inner Dia (mm) | Wall thickness (mm) | |||
| S9010.6BK | Φ0.6 | 0.8±0.2 | 0.16±0.08 | ≤0.35 | 0.26±0.06 | 200 |
| S9010.7BK | Φ0.7 | 0.9±0.2 | 0.15±0.08 | ≤0.4 | 0.30±0.06 | 200 |
| S9010.8BK | Φ0.8 | 1.3±0.2 | 0.15±0.08 | ≤0.45 | 0.33±0.06 | 200 |
| S9011.0BK | Φ1.0 | 1.5±0.2 | 0.18±0.08 | ≤0.6 | 0.36±0.06 | 200 |
| S9011.5BK | Φ1.5 | 2.0±0.2 | 0.20±0.08 | ≤0.8 | 0.40±0.08 | 200 |
| S9012.0BK | Φ2.0 | 2.5±0.2 | 0.20±0.08 | ≤1.0 | 0.42±0.08 | 200 |
| S9012.5BK | Φ2.5 | 3.0±0.2 | 0.22±0.08 | ≤1.25 | 0.42±0.08 | 200 |
| S9013.0BK | Φ3.0 | 3.5±0.3 | 0.25±0.10 | ≤1.5 | 0.46±0.08 | 200 |
| S9013.5BK | Φ3.5 | 4.0±0.3 | 0.25±0.10 | ≤1.75 | 0.46±0.08 | 200 |
| S9014.0BK | Φ4.0 | 4.5±0.3 | 0.25±0.10 | ≤2.0 | 0.48±0.08 | 200 |
| S9014.5BK | Φ4.5 | 5.0±0.3 | 0.25±0.10 | ≤2.25 | 0.50±0.10 | 100 |
| S9015.0BK | Φ5.0 | 5.5±0.4 | 0.25±0.10 | ≤2.5 | 0.50±0.10 | 100 |
| S9016.0BK | Φ6.0 | 6.5±0.4 | 0.28±0.12 | ≤3.0 | 0.56±0.10 | 100 |
| S9016.5BK | Φ6.5 | 7.0±0.4 | 0.30±0.12 | ≤3.25 | 0.56±0.10 | 100 |
| S9017.0BK | Φ7.0 | 7.5±0.4 | 0.30±0.12 | ≤3.5 | 0.58±0.10 | 100 |
| S9018.0BK | Φ8.0 | 8.5±0.5 | 0.30±0.12 | ≤4.0 | 0.60±0.10 | 100 |
| S9019.0BK | Φ9.0 | 9.5±0.5 | 0.30±0.12 | ≤4.5 | 0.60±0.10 | 100 |
| S90110BK | Φ10 | 10.5±0.5 | 0.30±0.12 | ≤5.0 | 0.60±0.10 | 100 |
| S90111BK | Φ11 | 11.5±0.5 | 0.30±0.12 | ≤5.5 | 0.60±0.10 | 100 |
| S90112BK | Φ12 | 12.5±0.5 | 0.30±0.12 | ≤6.0 | 0.60±0.10 | 100 |
| S90113BK | Φ13 | 13.5±0.5 | 0.36±0.12 | ≤6.5 | 0.65±0.12 | 100 |
| S90114BK | Φ14 | 14.5±0.5 | 0.36±0.12 | ≤7.0 | 0.65±0.12 | 100 |
| S90115BK | Φ15 | 15.5±0.5 | 0.36±0.12 | ≤7.5 | 0.65±0.12 | 100 |
| S90116BK | Φ16 | 16.5±0.5 | 0.36±0.12 | ≤8.0 | 0.65±0.12 | 100 |
| S90117BK | Φ17 | 17.5±0.5 | 0.36±0.12 | ≤8.5 | 0.65±0.12 | 100 |
| S90118BK | Φ18 | 18.7±0.6 | 0.40±0.15 | ≤9.0 | 0.70±0.12 | 100 |
| S90120BK | Φ20 | 20.7±0.6 | 0.40±0.15 | ≤10.0 | 0.75±0.15 | 100 |
| S90122BK | Φ22 | 22.7±0.6 | 0.40±0.15 | ≤11.0 | 0.80±0.15 | 100 |
| S90125BK | Φ25 | 25.7±0.7 | 0.40±0.15 | ≤12.5 | 0.90±0.15 | 50 |
| S90128BK | Φ28 | 29.0±0.7 | 0.45±0.20 | ≤14,0 | 0.95±0.15 | 50 |
| S90130BK | Φ30 | 31±0.7 | 0.45±0.20 | ≤15.0 | 0.95±0.15 | 50 |
| S90135BK | Φ35 | 36±1.0 | 0.50±0.22 | ≤17.5 | 1.00±0.20 | 50 |
| S90140BK | Φ40 | 41±1.0 | 0.55±0.25 | ≤20.0 | 1.00±0.25 | 50 |
| S90145BK | Φ45 | 46±1.0 | 0.55±0.25 | ≤22.5 | 1.00±0.25 | 25 |
| S90150BK | Φ50 | 51.5±1.5 | 0.60±0.25 | ≤26.0 | 1.20±0.25 | 25 |
| S90155BK | Φ55 | ≥55 | 0.60±0.25 | ≤28.0 | 1.20±0.25 | 25 |
| S90160BK | Φ60 | ≥60 | 0.60±0.25 | ≤30.0 | 1.20±0.25 | 25 |
| S90170BK | Φ70 | ≥70 | 0.70±0.30 | ≤35.0 | 1.45±0.25 | 25 |
| S90180BK | Φ80 | ≥80 | 0.70±0.30 | ≤40.0 | 1.45±0.25 | 25 |
| S90190BK | Φ90 | ≥90 | 0.70±0.30 | ≤45.0 | 1.45±0.25 | 25 |
| S901100BK | Φ100 | ≥100 | 0.70±0.30 | ≤50.0 | 1.45±0.25 | 25 |
5. Inner package of heat shrinkable tube:
A. Standard Packing of heat shrinkable tube: 12rx200m/roll + carton roll + Label + Export Carton
B. Customized Packing of heat shrinkable tube: Cutted tube in plastic bag,zip lock bag,Header card bag, plastic box, PE Jar, Canister , other packing can be supplied according to customers request.
