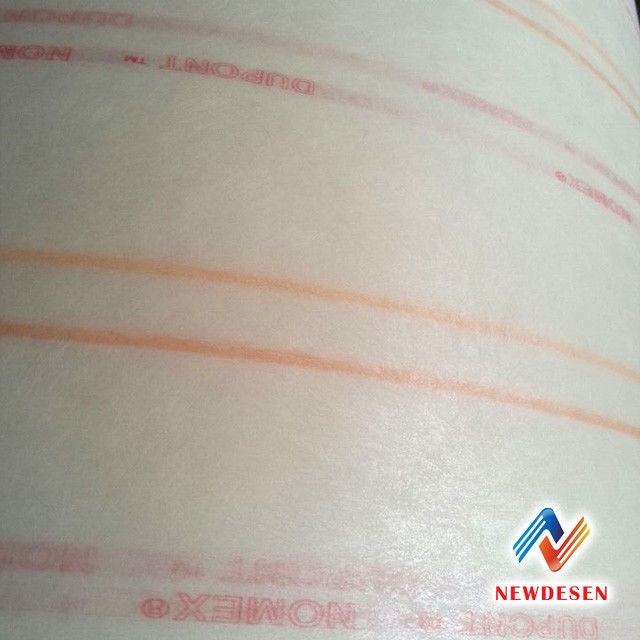

NMN DUPONT NOMEX MYLAR INSULATION PAPER 6640
  • name
  • name
  • name
  • name

NMN DUPONT NOMEX MYLAR INSULATION PAPER 6640

MOQ: 300 kg
Price: 7~20USD/KG
Standard Packaging: each roll weight 53~58kg into box, then 16roll packing into pallet
Delivery Period: after get payment into 10days delivery to Chinese port
Payment Method: L/C, T/T, D/A, Western Union, MoneyGram
Supply Capacity: 8~15days
Detail Information
Product Description
Detail Information
Place of Origin
XUCHANG
Brand Name
NEWDESEN
Certification
ROHS, UL
Model Number
6640
Brand:
DUPONT NOMEX
Model:
6640
Colour:
Yellow Line & Original Line On White Body
Temperature Class:
Class F & Class H
Width:
914( Mill-edge) 904(scrap Edge)
Material:
DUPONT NOMEX ,Polyester Film
Thickness:
0.13~0.50mm
Place Of Origin:
XUCHANG
Roll Weight:
53~58kg Per Roll
Standard:
JB/T56073.47-1999
Product Description

6640 NMN insulation paper (Nomex +Mylar film + Nomex) is a fiber paper with two- story aryi compound from bonding with the polyester film. Heat-resistant grade F & H grade. Has good flexibility, excellent mechanical strength, dielectric properties anti-tear strength and absorption capacity of paint.



can provide size :

0.13mm, 0.15mm, 0.18mm, 0.20mm ,0.25mm ,0.30mm ,0.33mm, 0.35mm, 0.38mm, 0.40mm, 0.45mm 0.50mm .width:914mm



Application Remarks

NMN is mainly used as a slot liner,slot closure, phase-to-phase and turn-to-turn insulation in low or medium voltage electrical motors of Class F (155℃) or Class H (180℃) insulation system ,in addition, its also used as interlayer insulation in transformers and other electrical machines and appliances



Appearance :

Surface of materials is uniformity, smooth and haven’t air bubble ,pinhole, ripple and blemish ets



No Technical Speclification(NMN) Unit Values
1 Thickness mm 0.15 0.18 0.20 0.23 0.25 0.30 0.35
2 Thickness tolerance mm ±0.02 ±0.02 ±0.03 ±0.03 ±0.03 ±0.04 ±0.04
3 Nominal Grammage and Tolerance g 180±25 210±30 240±30 260±35 300±40 350±50 430±50
4 Tensile Strength MD No Bending

N/10

mm

 ≥150 ≥160 ≥180 ≥200 ≥220 ≥270 ≥320
      After Bending   ≥80 ≥110 ≥130 ≥150 ≥180 ≥200 ≥260
    TD No Bending   ≥90 ≥110 ≥130 ≥150 ≥180 ≥200 ≥250
      After Bending   ≥70 ≥90 ≥110 ≥130 ≥150 ≥170 ≥200
5 Elongation MD   % ≥10 ≥12
    TD     ≥15 ≥18
7

MD

Breakdown voltage

TD

 KV ≥7 ≥10 ≥11 ≥12 ≥13 ≥15 ≥20
      ≥6 ≥8 ≥9 ≥10 ≥12 ≥13 ≥16
8 Bond strength at 25 degree C   No delamination
9 Bond strength at 155 degree C   No delamination ,no blister,no adhesive flow
10 Temperature   ≥180
