VG-201 POLYVINYI CHLORIDE RESIN COATED WITH FIBERGLASS SLEEVING

MOQ:	10000m
Price:	US $0.0123-0.0125 / Meter
Standard Packaging:	Packaging DetailsPacking in carton or pallets according to sizes
Delivery Period:	after get payment into 20days delivery to China
Payment Method:	L/C, T/T, D/A
Supply Capacity:	15~30daysfinished

Detail Information

Product Description

Detail Information

Place of Origin

HENAN

Brand Name

NEWDESEN

Certification

ISO1998,SGS

Model Number

Material:

PVC Resin With Fiberglass

Insulation Protection

Color:

White With Blue Red And Green Line

Sample:

Sample Avaliable

Diameter:

0.5~30mm

Type:

Insulation Sleeving

Temp:

105 Degree

Rated Voltage:

1500V 2500V 4000V

Model Number:

Place Of Origin:

Xuchang, China (Mainland)

Application:

Low Voltage

Usage:

Insulation Protection,Wire And Cable Protection,motor,electric Instrument And Radio Equipment

HS Code:

701990

Product Description

THE KIND OF FIBERGLASS SLEEVING IS THE NON-ALKALI FIBERGLASS BRAIDED SLEEVING COATED WITH POLYVINYL CHIORDE RESIN,ITS PRODUCED WITH THE PROCESS OF THERMOPLASTICIZATION.

THE POLYVINYL CHLORIDE FIBERGLASS SLEEVING POSSESSES GOOD QUALITIES OF DIELECTRIC,CHEMICAL RESISTANCE,EXCELLENT SOFTNESS AND ELASTICITY,IT CAN BE USED FOR WIRING INSULATION AND MECHANICAL PROTECTION FOR ELECTRICAL MACHINERY,ELECTRICAL APPLIANCES ,ELECRICAL INSTRUMENTS AND APPARATUS,MEDICAL INSTRUMENTS AND APPARATUS,WIRELESS SETS,TV SETS AND DOMESTIC ELECTRICAL APPLIANCES OF ELECTRICAL FANS ,WASHING MECHINE ECT...

LENGTH:100+/-10MM (CONTINUOUS LENGTH MAY BE NEGOTIATED)

Heat-resistance: A class 105℃

Breakdown Voltage:1500v 2500v 4000v

Standard: JB/T8151.2-1999

Material : Non-alkali fiberglass braided sleeving

Coating: Polyvinyl chloride resin

Property: With excellent softness and elasticity, high dielectric and chemical property .

Application: it can be used for the wiring insulation and mechanical protection for motors, electrical appliances,electrical instruments, wireless sets and domestic electrical appliances

The specification available:

I.D.: 0.5-30mm

Length: in one meter or in coils. 50m 100m for one coils, also can be accroding to your request

Pacage: Plastic Bags or Carton

It could be 1meter per piece, 100meters per roll, or according to clients' request.

With bags or cartons.

Item	Unit	Normal value
inner dia.& wall thickness(mm)	mm	inner dia(mm)			wall thickness(mm)
		standard		tolerance	min	max
		0.5;0.8		±0.10	0.20	0.50
		1.0;1.5;2.0;2.5;3.0		±0.15	0.20	0.75
		3.5;4.0;5.0;6.0;7.0;8.0		±0.25	0.30	0.75
		9;10;12;14;16;18;20		±0.50	0.40	0.90
Bending after heating	/	No cracking or detachment of coating shall be visible after bending around mandrels after 96h at 150ºC
Bending at low temperature		No cracking or detachment of coating shall be visible after bending around mandrels while at -25ºC
Breakdown voltage	kv		Average		Lowest
		Room temp.	4.0		2.5
		Elevated temp.	1.2		0.8
		Damp heat	1.2		0.8
insulation resistance	MΩ	≥1.0X103
The quality warranty period	6 month
Temperature index	105ºC

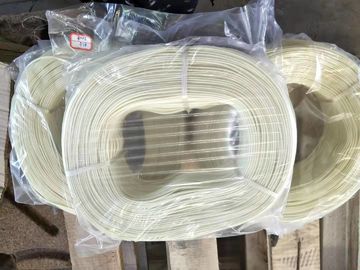

VG-201 POLYVINYI CHLORIDE RESIN COATED WITH FIBERGLASS SLEEVING 0

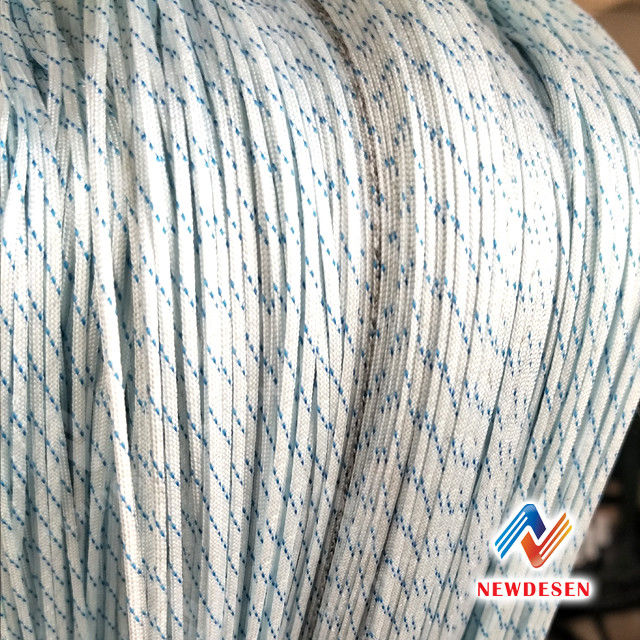

VG-201 POLYVINYI CHLORIDE RESIN COATED WITH FIBERGLASS SLEEVING 1

VG-201 POLYVINYI CHLORIDE RESIN COATED WITH FIBERGLASS SLEEVING 2

VG-201 POLYVINYI CHLORIDE RESIN COATED WITH FIBERGLASS SLEEVING 3

VG-201 POLYVINYI CHLORIDE RESIN COATED WITH FIBERGLASS SLEEVING 4
