| Place of Origin: | XUCHANG |
| Brand Name: | NEWDESEN |
| Certification: | SGS, ISO2000, |
| Model Number: | DDP INSULATION PAPER |
| Minimum Order Quantity: | 1000KG |
|---|---|
| Price: | 2.3~2.95USD |
| Packaging Details: | pallet size 1.1*1.1*1.15m , each pallet can hold 800kg . |
| Payment Terms: | D/A, L/C, D/P, T/T, Western Union |
| Supply Ability: | 1000KG PER DAY |
| BASE PAPER: | ELECTRICAL CABLE PAPER | RESIN: | Modified Epoxide Resin |
|---|---|---|---|
| Resin Color: | Original Color, Nature Color | Thickness: | 0.08~0.50mm |
| Width: | 960~1250mm | Roll Weight: | 50~200kg Per Roll |
| HS CODE: | 48239090 |
| ITEM | TYPICAL VALUES | MATTER OF FACT | |
|
Caliper: (inch) (millimeter) |
0.010 0.25 |
||
| Base paper thickness mm | 0.25 ± 10% | 0.25 | |
| Resin thickness single side mm | 0.006-0.012 mm | 0.012 | |
| DDP thickness (just for reference) | Base paper + resin |
0.262 (0.262, 0.262,0.261) |
|
| Width: mm | 1000±5 | 1003-1007 | |
| Apparent density: g/cm3 | ≥0.90 | 0.93 | |
| Moisture content ,﹪ | 6.0 to 9.0﹪ | 6.8 | |
| PH water extract: | 6.0 to 8.5 | 7.3 | |
| Ash content,﹪ maximum | ≤0.5 | 0.42 | |
|
Conductivity of aqueous extract Ms/m |
≤8.0 | 7.4 | |
|
Elongation MD ﹪ CMD ﹪ |
≥2.0 ≥5.4 |
2.0 6.8 |
|
|
Edge Internal tearing resistance N Machine direction: Cross machine direction |
113.4 115.4 |
||
|
Tear strength, Machine direction: mN Cross machine direction: mN |
≥2000 ≥2300 |
3660 5200 |
|
|
Tensile strength, N/mm2 Machine direction: Cross machine direction: |
≥75 ≥35 |
86.8 44.8 |
|
|
Dielectric breakdown: (volts/layer ,dry test) |
≥2100 |
2133 (2200,2100,2100) |
|
| Bond strength: Kpa | ≥450 | 819 | |

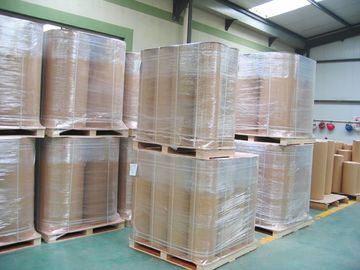

PACAGE WITH PALLET
