    Detail produk:

    Tempat asal: Xuchang
    Nama merek: NEWDESEN
    Sertifikasi: SGS, ISO2000,
    Nomor model: KERTAS ISOLASI DDP

    Syarat-syarat pembayaran & pengiriman:

    Kuantitas min Order: 1000KG
    Harga: 2.3~2.95USD
    Kemasan rincian: ukuran palet 1,1*1,1*1,15m, setiap palet dapat menampung 800kg.
    Syarat-syarat pembayaran: D/A, L/C, D/P, T/T, Western Union
    Menyediakan kemampuan: 1000kg per hari
    Hubungi sekarang
    Detil Deskripsi produk
    Kertas dasar: KERTAS KABEL LISTRIK Damar: Resin epoksida yang dimodifikasi
    Warna Damar: Warna asli, warna Alam Ketebalan: 0,08~0,50mm
    Lebar: 960~1250mm Berat gulungan: 50~200kg per gulung
    Kode Hs: 48239090

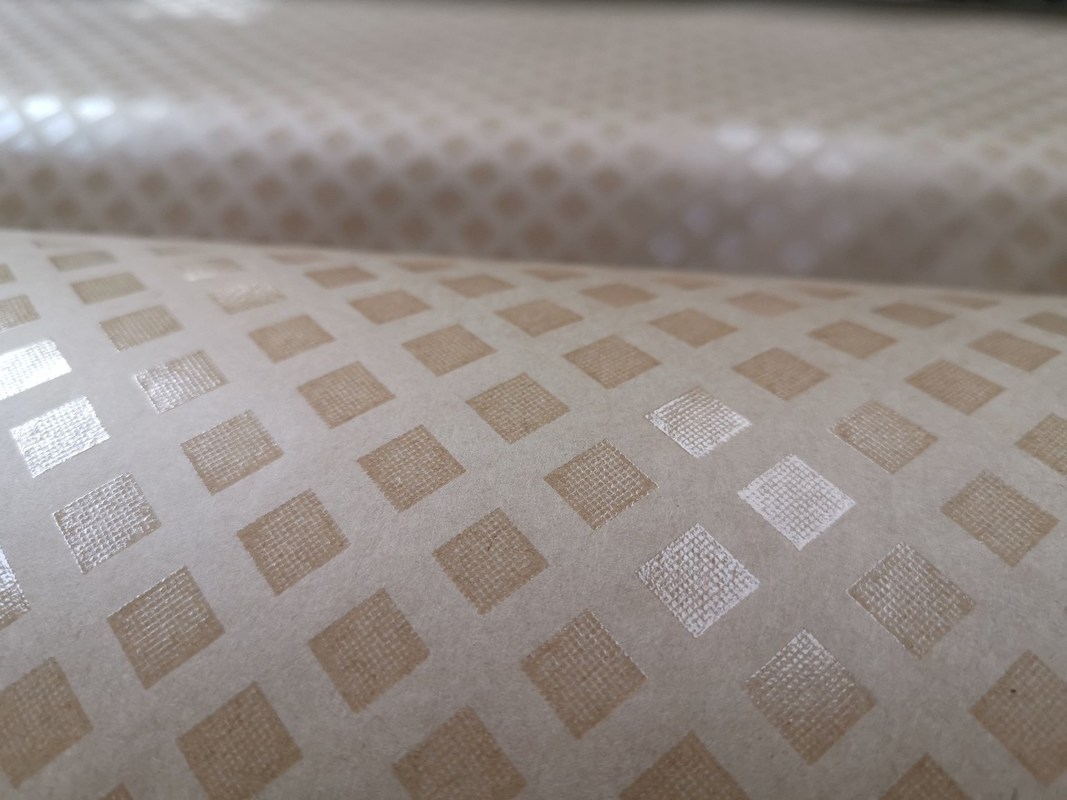

    Diamond Dotted Insulation Paper( DDP) is made of electrical insulation paper with Diamond-shape epoxy resin dotted in both sides. The epoxy resin used in DDP contains a kind of incubative hardener material, it is a dry ad crisp material at normal temperature

    This product has good dielectric properties and good machenical properties after being heat-solidification. It can be used as coils and between layers of oil immerged power and distribution transformers.
    Thickness: 0.08mm 0.13mm 0.15mm 0.17mm 0.20mm 0.25mm 0.30mm  0.40mm  0.45mm  0.50mm
    Width: 960mm 1000mm 1020mm 1050mm  1220mm 1250mm

    Roll Diameter--- 280-330mm

    Core Diameter --- 76±2mm

    DIAMOND PATTERN PAPER DATA SHEET



    ITEM TYPICAL VALUES MATTER OF FACT

    Caliper: (inch)

    (millimeter)

    0.010

    0.25
    Base paper thickness mm 0.25 ± 10% 0.25
    Resin thickness single side mm 0.006-0.012 mm 0.012
    DDP thickness (just for reference) Base paper + resin

    0.262

    (0.262, 0.262,0.261)
    Width: mm 1000±5 1003-1007
    Apparent density: g/cm3 ≥0.90 0.93
    Moisture content ,﹪ 6.0 to 9.0﹪ 6.8
    PH water extract: 6.0 to 8.5 7.3
    Ash content,﹪ maximum ≤0.5 0.42

    Conductivity of aqueous extract

    Ms/m

    		 ≤8.0 7.4

    Elongation MD ﹪

    CMD ﹪

    ≥2.0

    ≥5.4

    2.0

    6.8

    Edge Internal tearing resistance N

    Machine direction:

    Cross machine direction





    113.4

    115.4

    Tear strength,

    Machine direction: mN

    Cross machine direction: mN



    ≥2000

    ≥2300



    3660

    5200

    Tensile strength, N/mm2

    Machine direction:

    Cross machine direction:



    ≥75

    ≥35



    86.8

    44.8

    Dielectric breakdown:

    (volts/layer ,dry test)

    		 ≥2100

    2133

    (2200,2100,2100)
    Bond strength: Kpa ≥450 819

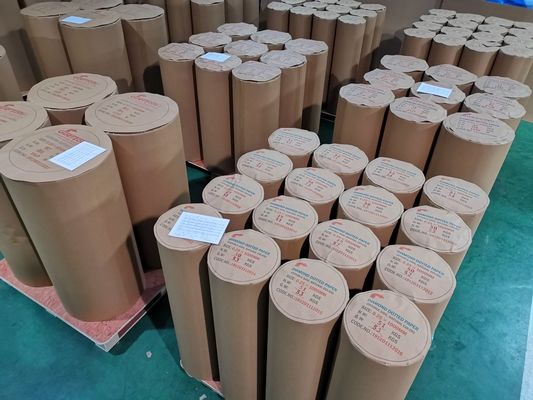

    PACAGE WITH PALLET


    Wechat: 707073142, Whastsapp 86 139 0374 4063
