Diamond Dotted insulation paper & DDP INSULATION PAPER use for oil transformer
  • name
  • name
  • name
  • name

Diamond Dotted insulation paper & DDP INSULATION PAPER use for oil transformer

MOQ: 1000KG
Price: 2.3~2.95USD
Standard Packaging: pallet size 1.1*1.1*1.15m , each pallet can hold 800kg .
Payment Method: D/A, L/C, D/P, T/T, Western Union
Supply Capacity: 1000KG PER DAY
Detail Information
Product Description
Detail Information
Place of Origin
XUCHANG
Brand Name
NEWDESEN
Certification
SGS, ISO2000,
Model Number
DDP INSULATION PAPER
BASE PAPER:
ELECTRICAL CABLE PAPER
RESIN:
Modified Epoxide Resin
Resin Color:
Original Color, Nature Color
Thickness:
0.08~0.50mm
Width:
960~1250mm
Roll Weight:
50~200kg Per Roll
HS CODE:
48239090
Product Description

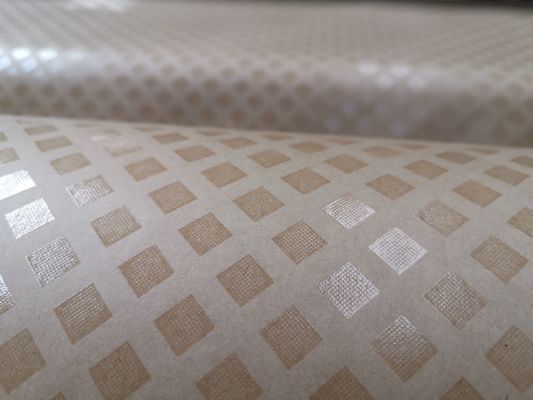

Diamond Dotted Insulation Paper( DDP) is made of electrical insulation paper with Diamond-shape epoxy resin dotted in both sides. The epoxy resin used in DDP contains a kind of incubative hardener material, it is a dry ad crisp material at normal temperature

This product has good dielectric properties and good machenical properties after being heat-solidification. It can be used as coils and between layers of oil immerged power and distribution transformers.
Thickness: 0.08mm 0.13mm 0.15mm 0.17mm 0.20mm 0.25mm 0.30mm  0.40mm  0.45mm  0.50mm
Width: 960mm 1000mm 1020mm 1050mm  1220mm 1250mm

Roll Diameter--- 280-330mm

Core Diameter --- 76±2mm

DIAMOND PATTERN PAPER DATA SHEET



ITEM TYPICAL VALUES MATTER OF FACT

Caliper: (inch)

(millimeter)

0.010

0.25
Base paper thickness mm 0.25 ± 10% 0.25
Resin thickness single side mm 0.006-0.012 mm 0.012
DDP thickness (just for reference) Base paper + resin

0.262

(0.262, 0.262,0.261)
Width: mm 1000±5 1003-1007
Apparent density: g/cm3 ≥0.90 0.93
Moisture content ,﹪ 6.0 to 9.0﹪ 6.8
PH water extract: 6.0 to 8.5 7.3
Ash content,﹪ maximum ≤0.5 0.42

Conductivity of aqueous extract

Ms/m

 ≤8.0 7.4

Elongation MD ﹪

CMD ﹪

≥2.0

≥5.4

2.0

6.8

Edge Internal tearing resistance N

Machine direction:

Cross machine direction





113.4

115.4

Tear strength,

Machine direction: mN

Cross machine direction: mN



≥2000

≥2300



3660

5200

Tensile strength, N/mm2

Machine direction:

Cross machine direction:



≥75

≥35



86.8

44.8

Dielectric breakdown:

(volts/layer ,dry test)

 ≥2100

2133

(2200,2100,2100)
Bond strength: Kpa ≥450 819



PACAGE WITH PALLET


Wechat: 707073142, Whastsapp 86 139 0374 4063
