2715 Insulation PVC Fiberglass Sleeve
  • name
  • name
  • name
  • name
  • name

2715 Insulation PVC Fiberglass Sleeve

MOQ: 10000m
Price: US $0.0123-0.0125 / Meter
Standard Packaging: Packaging DetailsPacking in carton or pallets according to sizes
Delivery Period: after get payment into 20days delivery to China
Payment Method: L/C, T/T, D/A
Supply Capacity: 15~30daysfinished
Detail Information
Product Description
Detail Information
Place of Origin
HENAN
Brand Name
NEWDESEN
Certification
ISO1998,SGS
Model Number
2715
Material:
PVC Resin With Fiberglass
Use:
Insulation Protection
Color:
White With Blue Red And Green Line
Sample:
Sample Avaliable
Diameter:
0.5~50mm
Type:
Insulation Sleeving
Temp:
105 Degree
Rated Voltage:
1500V 2500V 4000V
Model Number:
2715
Place Of Origin:
Xuchang, China (Mainland)
Application:
Low Voltage
Usage:
Insulation Protection,Wire And Cable Protection,motor,electric Instrument And Radio Equipment
Product Name:
2715
Product Description

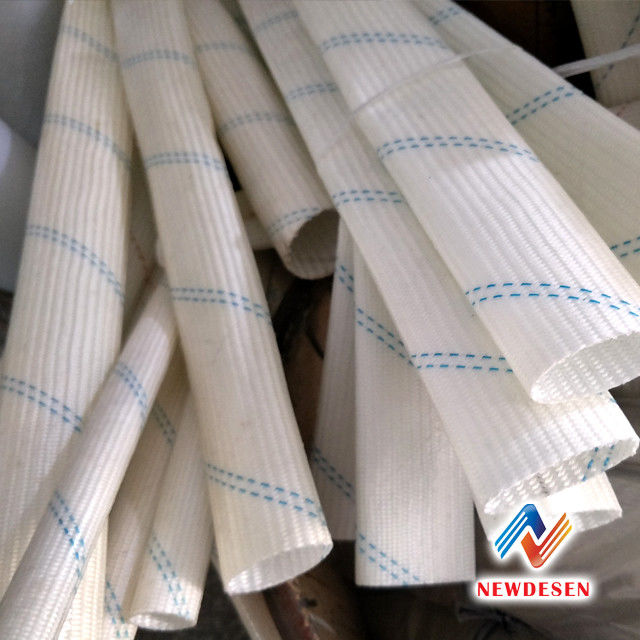

2715 insulation PVC fiberglass sleeve

Heat-resistance: A class 105℃

Breakdown Voltage:1500v 2500v 4000v

Standard: JB/T7116-1986

Material : Non-alkali fiberglass braided sleeving

Coating: Polyvinyl chloride resin

Property: With excellent softness and elasticity, high dielectric and chemical property .

Application: it can be used for the wiring insulation and mechanical protection for motors, electrical appliances,electrical instruments, wireless sets and domestic electrical appliances

The specification available:

I.D.: 0.5-40mm

Length: in one meter or in coils. 50m 100m for one coils, also can be accroding to your request

Pacage: Plastic Bags or Carton



It could be 1meter per piece, 100meters per roll, or according to clients' request.

With bags or cartons.



Item Unit Normal value
inner dia.& wall thickness(mm) mm inner dia(mm) wall thickness(mm)
    standard tolerance min max
    0.5;0.8 ±0.10 0.20 0.50
    1.0;1.5;2.0;2.5;3.0 ±0.15 0.20 0.75
    3.5;4.0;5.0;6.0;7.0;8.0 ±0.25 0.30 0.75
    9;10;12;14;16;18;20 ±0.50 0.40 0.90
Bending after heating / No cracking or detachment of coating shall be visible after bending around mandrels after 96h at 150ºC
Bending at low temperature   No cracking or detachment of coating shall be visible after bending around mandrels while at -25ºC
Breakdown voltage kv   Average Lowest
    Room temp. 4.0 2.5
    Elevated temp. 1.2 0.8
    Damp heat 1.2 0.8
insulation resistance MΩ ≥1.0X103
The quality warranty period 6 month
Temperature index 105ºC





2715 Insulation PVC Fiberglass Sleeve 02715 Insulation PVC Fiberglass Sleeve 1

2715 Insulation PVC Fiberglass Sleeve 2

2715 Insulation PVC Fiberglass Sleeve 3

2715 Insulation PVC Fiberglass Sleeve 4

2715 Insulation PVC Fiberglass Sleeve 5

For more information, please feel free to contact Lisa

MOB: 86 139 0374 4063

creditzf@163.com

QQ: 707073142
