High Electric Strength Insulation Presspaper/Pressboard for Electrical Transformers
  • name
  • name

High Electric Strength Insulation Presspaper/Pressboard for Electrical Transformers

MOQ: 1000KG
Price: 1.3~1.5USD/KG
Standard Packaging: Cartons size 28*28*1002mm, each roll weight 55kg, 16roll/pallet, pallet size 1.1*1.1*1.15m
Delivery Period: 5~8days
Payment Method: D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Capacity: 1500KG/DAY
Detail Information
Product Description
Detail Information
Place of Origin
HENAN
Brand Name
NEWDESEN
Certification
ROHS
Model Number
presspaper
Model:
6510
Material:
Fish Paper
Colour:
GREEN, BROWN, DEEP BLUE,
Thickness:
0.10~0.50mm
Width:
1000mm
Brand:
NEWDESEN
Product Description


Electrical insulation paper applies to rated voltage not more than 500kv transformers, reactors and other inter-turn insulation paper.Electrical insulation paper is roll paper, roll width of 625mm-1250mm, roll diamter 550-720mm, or according to the provision of the contract order.


Aprrarent Density: 1.0-1.25g/cm3
Material: Unbleached sulphate pulp thickness: 0.1-0.5mm
Color: Brown, red, dark blue


Feature: Good mechanical stength, high electric strength resistance, larger tightness, smaller shrinkage, excellent flatness are the main strong strengths of this product.
It be mainly used in the clapboards of transformers and other components such as insulation tube.


"NEWDESEN" thin insulation paper has good mechanical strength, high electrical strength, smooth surface, full of toughness, widely used in electrical machinery, electrical appliances, instruments and other equipment as insulation materials, but also used in the production of 6520 composite insulation paper products.Can also be used in machine gasket, clothing, footwear, printing and packaging and other related industries



                             Storage life---1 year
                             The specification available:

                Thickness: 0.10~0.50mm

                 Width: 1000m color: blue, green, cyan, brown
                Package: woven bag or pallet package



Technical Data sheet
No Index name Unit Index requirement
1 Thickness mm 0.5 1.0 1.5 2.0 3.0
2 Thickness tolerance % ±7.5 ±5 ±5 ±5 ±5
3 Apparent density g/m2 1.00-1.25
4 Tensile Strength(min) MD N/mm2 >110
CD N/mm2 >80
breadth:50
5 Elongation MD % >7.0
CD % >9.0
breadth:50
6 Shrinking rate (max) % length:1.0 breadth:4.0 Thickness:6.0
7 Absorption of oil(min) % >10
8 Electricity strength In air KV/mm ≥10 ≥10 ≥10 ≥10 ≥10
In oil ≥40 ≥30 ≥25 ≥25 ≥25   ±5 ±5 ±5
9 Moisture content % ≤8.0
10 Ash Conent % ≤1.0



Mobile:86 139 0374 4063.
Mail: creditzf@163.com

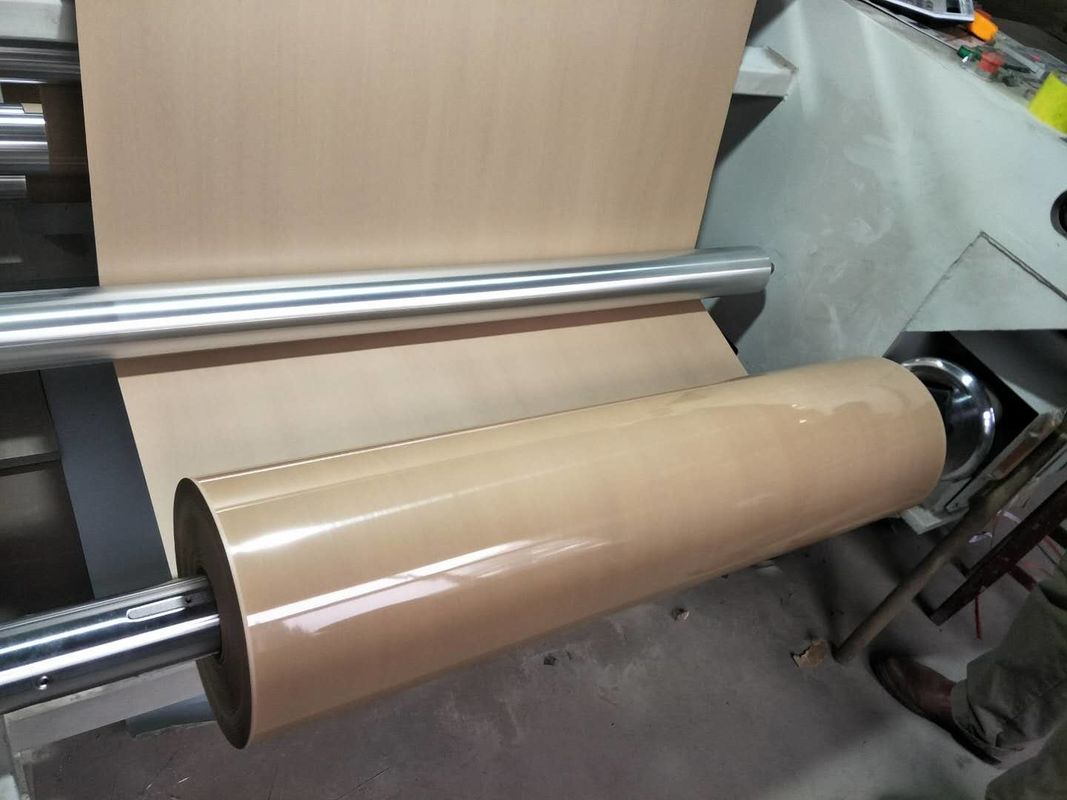

High Electric Strength Insulation Presspaper/Pressboard for Electrical Transformers 0
Skype: zhufenglisa

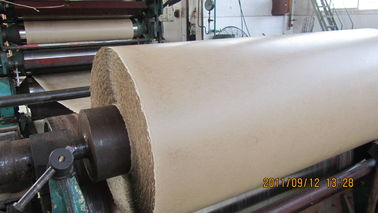

High Electric Strength Insulation Presspaper/Pressboard for Electrical Transformers 1
Whatsapp: 86 139 03744063
Wechat: 707073142
