| Place of Origin: | XUCHANG |
| Brand Name: | NEWDESEN |
| Certification: | ROHS ,UL |
| Model Number: | 6521 |
| Minimum Order Quantity: | 1000KG |
|---|---|
| Price: | 1.75~2.1USD/KG |
| Packaging Details: | Cartons size 28*28*1002mm, each roll weight 55kg, 16roll/pallet, pallet size 1.1*1.1*1.15m |
| Delivery Time: | 5~8days |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1500KG/DAY |
| Model: | 6521 | Material: | FISH PAPER /polyester Film |
|---|---|---|---|
| Colour: | GREEN, BROWN, DEEP BLUE, | Thickness: | 0.13`0.50mm |
| Width: | 1000mm | Brown Down Voltage: | 5~7KV |
| Mylar Thickness: | 0.025mm | Brand: | NEWDESEN |
| Stardand: | JB/T4059-1999 | Ooperating Temperature: | 120 Degree ,Class E |

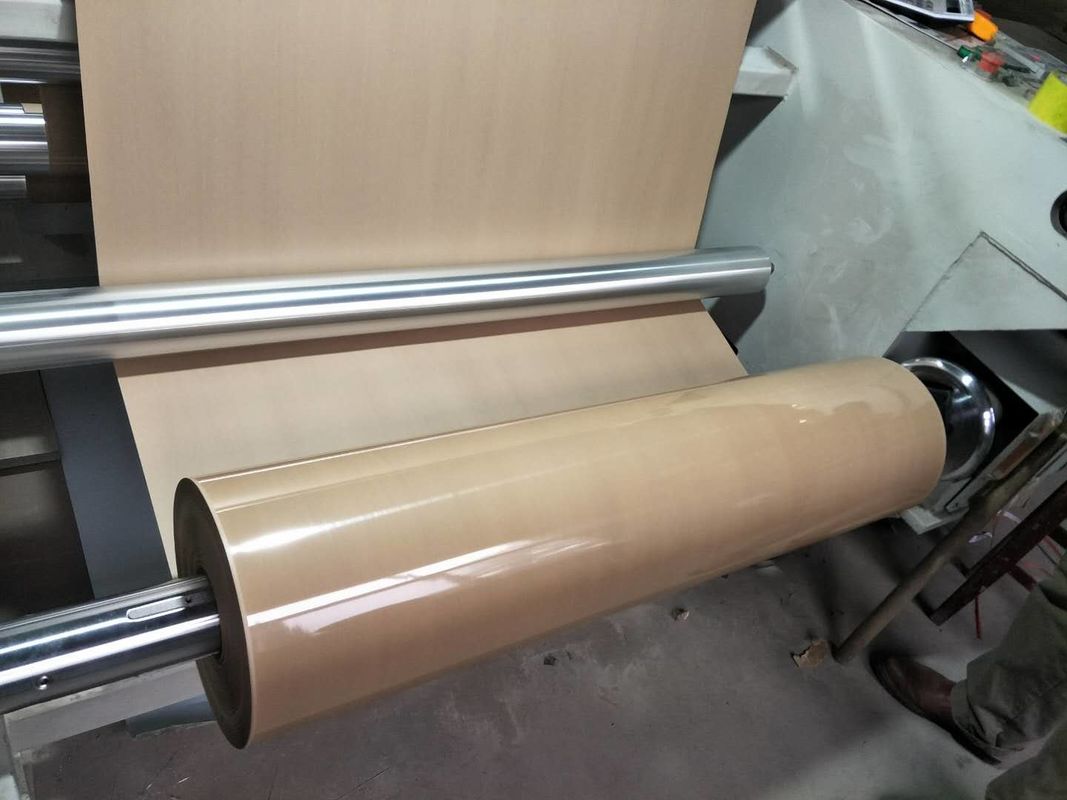

6521 flexible composite Nature presspaper composite is the composite of 6020 polyester film painted with adhensives and electrical-insulation presspaper. It is suitable to be used in electric machine and electric equipment for insulating groove or liner and for insulation between wire circles.
Heat-resistance: E class 120℃
Standard: JB/T4095-1991
Material : Polyester film and Nature presspaper
Storage life---1 year
The specification available:
Thickness: 0.13Mmm 0.15mm 0.17mm 0.20mm 0.23mm 0.25mm 0.28mm 0.30mm 0.35mm 0.40mm 0.45mm 0.50mm
Width: 1000m color: blue, green, cyan, brown

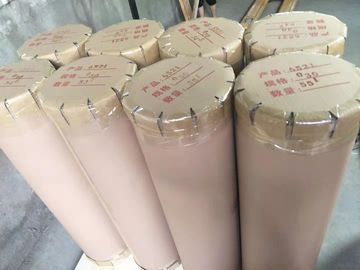

Pacage: Plastic Bags or Carton
XUCHANG NEWDESEN INDUSTRY CO.,LTD
NANHAI STREET, DONGCHENG DISTRICT ,XUCHANG ,HENAN,CHINA
TELP.86 139 0374 4063
Email: creditzf@163.com
6521 Polyester film with presspaper composite insulation paper
| Test items | Unit | index | |||||||||||
| Thickness | mm | 0.15 | 0.17 | 0.20 | 0.22 | 0.25 | 0.27 | 0.30 | 0.40 | 0.50 | 0.60 | ||
| Thickness tolerance | % | ±10 | ±10 | ±10 | ±10 | ±10 | ±10 | ±10 | ±10 | ±10 | ±10 | ||
| Norminal Grammage | g/m2 | 115±17 | 190±28 | 215±32 | 275±40 | 310±46 | 330±50 | 370±55 | 490±73 | 610±90 | 730±110 | ||
| Polyester film thickness | um | 25 | |||||||||||
| Tensile strength ≥ | MD no bending |
N/10mm width |
≥135 | ≥150 | ≥180 | ≥190 | ≥210 | ≥240 | ≥270 | ≥320 | ≥410 | ≥500 | |
| MD after bending | ≥80 | ≥90 | ≥100 | ≥110 | ≥120 | ≥140 | ≥160 | ≥230 | ≥300 | ≥370 | |||
| TD no bending | ≥80 | ≥90 | ≥100 | ≥110 | ≥120 | ≥130 | ≥150 | ≥200 | ≥260 | ≥320 | |||
| TD after bending | ≥60 | ≥60 | ≥70 | ≥75 | ≥80 | ≥90 | ≥100 | ≥130 | ≥170 | ≥200 | |||
|
Elongation at break ≥ |
MD | % | ≥2 | ≥3 | |||||||||
| TD | ≥8 | ≥10 | |||||||||||
| Break down Voltage | No bending | kv | ≥6.0 | ||||||||||
| After bending | ≥5.0 | ||||||||||||
| Bonding Strength at room temperature | ----- | Not Layered | |||||||||||
|
Thermal bonding (130±2)℃,10min |
--- | Not layered, not blister, not gummosis phenomenon | |||||||||||
Storage Conditions :
Stored in a clean,dry,ventilated place,keep away from fire and heating,avoid direct sunlight.
