| Place of Origin: | HENAN |
| Brand Name: | NEWDESEN |
| Certification: | ROHS, UL |
| Model Number: | 2432 |
| Minimum Order Quantity: | 300KG |
|---|---|
| Price: | 4.5USD~5.4USD/KG |
| Packaging Details: | each roll weight 11~13kg, each carton 4rolls . final package into pallet |
| Delivery Time: | 10~15days |
| Payment Terms: | L/C ,T/T, D/A, D/P ,100%LC ,Western union |
| Supply Ability: | 5000kg/15days |
| RAW MATERIAL: | ALKYD VARNISHED , FIBERGLASS CLOTH | Colour: | Yellow Or Dark Yellow |
|---|---|---|---|
| Thickness: | 0.11~0.25mm | Width: | 15~1300mm |
| Break Down Voltage: | 5.0~10.0KV | Operating Temperature: | Class B 130 Degree |
| Model: | 2432 | Standard: | JB/T8148.1-1999 |

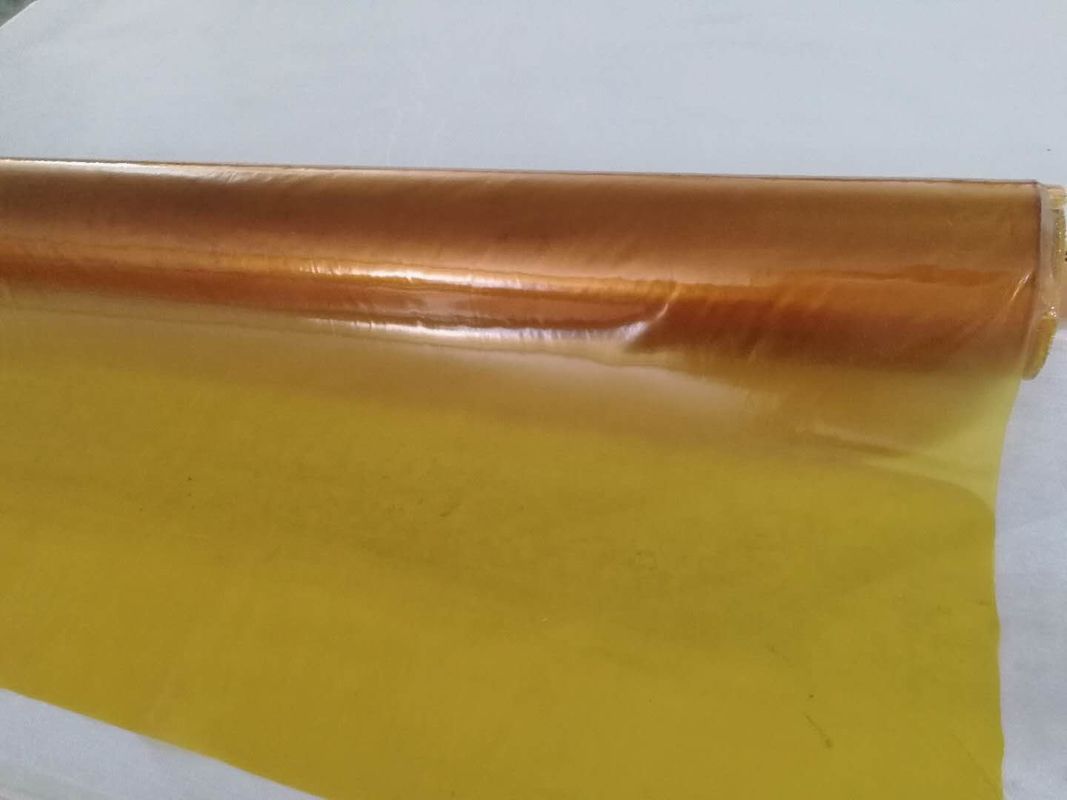

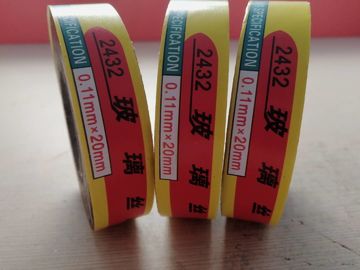

2432 alkyd fiberglass varnish tape (cloth)
Heat-resistance: B class 130℃
Standard: JB/T8148.1-1999
Material : Non-alkali fiberglass cloth Coating: alkyd resin
Property: With high dielectric property and mechanical strength, Excellent oil resistance , Fungus and dampproof
Application: Mainly used for the insulating binding and liner of the electrical motor and appliances.
The specification available:
Thickness: 0.11mm 0.13mm 0.15mm 0.17mm 0.20mm 0.24mm
Width: 15mm; 20mm; 25mm; 50mm; 1000mm;1250mm (Special specification can be negotiated)
Pacage: Plastic or Carton
| Number | Test Content | Technical Index | Unit | Test Result | Report | |
| 1 | Appearance | Uniform paint film, no bubble, crease, injury and impurities | / | Approval | Approval | |
| 2 | width | 20 | mm | 20 | Approval | |
| 3 | Standard thickness | 0.12±0.012 | mm | 0.125 | Approval | |
| 0.15±0.015 | mm | 0.153 | Approval | |||
| 0.18±0.018 | mm | 0.184 | Approval | |||
|
4
|
Breakdown Voltage 23±2℃ Mid-value |
0.12 | ≥6.0 | KV | 6.2 | Approval |
| 0.15 | ≥7.0 | KV | 7.4 | Approval | ||
| 0.18 | ≥8.0 | KV | 8.5 | Approval | ||
|
Breakdown Voltage 23±2℃ Min-value |
0.12 | ≥4.5 | KV | 4.8 | Approval | |
| 0.15 | ≥6.0 | KV | 6.7 | Approval | ||
| 0.18 | ≥6.5 | KV | 6.6 | Approval | ||
|
Breakdown Voltage 130±2℃ Mid-value |
0.12 | ≥3.0 | KV | 3.6 | Approval | |
| 0.15 | ≥3.5 | KV | 4.1 | Approval | ||
| 0.18 | ≥4.0 | KV | 4.2 | Approval | ||
| 5 |
Tensile strength Warp direction |
0.12 | ≥85 | N/10MM WIDTH | 90 | Approval |
| 0.15 | ≥105 | 115 | Approval | |||
| 0.18 | ≥111 | 124 | Approval | |||
|
Tensile strength Weft direction |
0.12 | ≥52 | N/10MM WIDTH | 58 | Approval | |
| 0.15 | ≥65 | 72 | Approval | |||
| 0.18 | ≥78 | 85 | Approval | |||
