ELECTRIAL INSULATING PAPER 6641 CLASS F DMD INSULATION PAEPR USED IN MOTOR SLOT
  • name
  • name
  • name
  • name

ELECTRIAL INSULATING PAPER 6641 CLASS F DMD INSULATION PAEPR USED IN MOTOR SLOT

MOQ: 1000kg
Price: 2.3~3.5kg/USD
Standard Packaging: exporting cartons and pallet, each roll 55kg, one pllast 16rolls, the pallet size 1.1*1.1*1.15m
Delivery Period: 8~15days
Payment Method: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Capacity: 8~10days finished
Detail Information
Product Description
Detail Information
Place of Origin
HENAN
Brand Name
NEWDESEN
Certification
ROHS, UL
Model Number
6641
Modle Number:
6641
RaInsulation Paperw Material:
Non-woven Fabrics With Transparency Mylar
Application:
Motor Usage
Place Of Origin:
HENAN
Width:
10~1200mm
Thickness:
0.13~0.45mm
Color:
Pink, Green, Blue
Standard:
Q/XJ-6641-2007
Ooperating Temperature:
155 Degree
Product Description

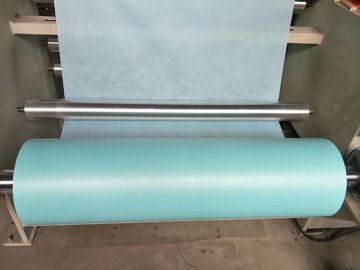

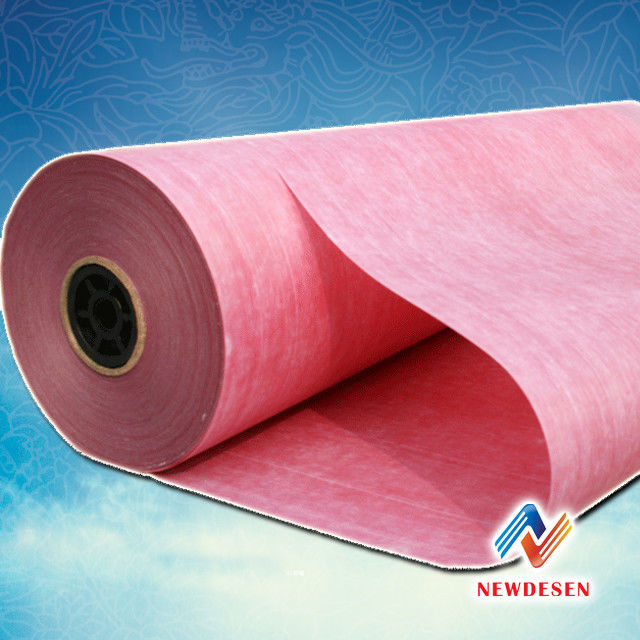

6641 F-DMD Flexible  composite Material  insulation paper

Heat-resistance: F class 155℃

6641-F DMD insulation paper consists of two layers of polyester fiber non-woven fabric and one layer of polyester film in the center, the used adhensive is F CLASS ,acid-free and temperature resistant.



Property:With high dielectric, heat resistance, mechanical strength and impregnated property, as slot ,interurn and liner insualtion in transformers.



The specification available:

Thickness: 0.15mm  0.20mm 0.25mm 0.30mm 0.35mm 0.40mm 0.45mm

Width: 1000m Color: Pink, watermelon, Blue and White



Form: in rolls.



Pacage: Plastic Bags or Carton Storage life---1 year



No Technical Speclification Unit Values
1 Thickness mm 0.15 0.18 0.20 0.23 0.25 0.30 0.35 0.40 0.45
2 Thickness tolerance mm ±0.02 ±0.025 ±0.03 ±0.03 ±0.03 ±0.03 ±0.035 ±0.040 ±0.045
3 Nominal Grammage and Tolerance g/m2 140±20 190±28 220±33 260±39 300±45 350±52 425±63 500±75 560±84
4 Thickness of polyester film mm 0.05 0.075 0.10 0.125 0.15 0.19 0.25 0.30 0.35
5 Tensile Strength MD No Bending N/10 ≥80 ≥120 ≥140 ≥180 ≥190 ≥270 ≥270 ≥340 ≥370
      After Bending   ≥80 ≥105 ≥120 ≥150 ≥170 ≥200 ≥200 ≥320 ≥350
    CD No Bending   ≥80 ≥105 ≥120 ≥150 ≥170 ≥200 ≥300 ≥320 ≥350
      After Bending   ≥70 ≥90 ≥100 ≥120 ≥130 ≥150 ≥200 ≥220 ≥250
6 Elongation MD No Bending Mm/width ≥15
      After Bending   ≥10 ≥5 ≥3
    CD No Bending   ≥20
      After Bending   ≥10 ≥5 ≥2
7 Breakdown voltage KV ≥6 ≥7 ≥9 ≥10 ≥12 ≥15 ≥18 ≥20 ≥22
8 Bond strength at 25℃   No delamination
9 Bond strength at 180±2℃,10min   No delamination ,no blister,no adhesive flow
10 Temperature   155





ELECTRIAL INSULATING PAPER 6641 CLASS F DMD INSULATION PAEPR USED IN MOTOR SLOT 0

mobile: 86 139 0374 4063

ELECTRIAL INSULATING PAPER 6641 CLASS F DMD INSULATION PAEPR USED IN MOTOR SLOT 1

mail: creditzf@163.com

ELECTRIAL INSULATING PAPER 6641 CLASS F DMD INSULATION PAEPR USED IN MOTOR SLOT 2

skype: zhufenglisa

ELECTRIAL INSULATING PAPER 6641 CLASS F DMD INSULATION PAEPR USED IN MOTOR SLOT 3

wechat: 707073142

ELECTRIAL INSULATING PAPER 6641 CLASS F DMD INSULATION PAEPR USED IN MOTOR SLOT 4

QQ: 707073142

ELECTRIAL INSULATING PAPER 6641 CLASS F DMD INSULATION PAEPR USED IN MOTOR SLOT 5



ELECTRIAL INSULATING PAPER 6641 CLASS F DMD INSULATION PAEPR USED IN MOTOR SLOT 6



ELECTRIAL INSULATING PAPER 6641 CLASS F DMD INSULATION PAEPR USED IN MOTOR SLOT 7



4. Why you choose us?

1) High performance cost ratio with steady quality
2) OEM service and Prompt Delivery
3) The fast speed of reply your email and can make quotation sheet just for you.
4) Can provide free sample, only need you bear the sample fee.
5) Supply good after-sales service, we will follow-up the situation after using, if have problems, we will find out the reason and deal with positively.

5. Packing:
exporting cartons and pallet

6. Delivery time and payment terms:

1) 10-20 days usually, if quantity is large, the lead time is around 30 days.
