| Place of Origin: | HENAN |
| Brand Name: | NEWDESEN |
| Certification: | ISO2000:1998, SGS ,UL |
| Model Number: | 2753 |
| Minimum Order Quantity: | 5000M PER SIZE |
|---|---|
| Price: | 0.015~0.025USD/METER |
| Packaging Details: | CARTON |
| Delivery Time: | AFTER GET TT PAYMENT INTO 15DAYS DELIVERY TO CHINESE PORT |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | ONE 20FT CONTAINER NEED 20DAYS |
| COLOUR: | NATURE, WHITE, BLACK, YELLOW ,RED | MATERIAL: | SILICONE RESIN With NON-ALKALY FIBERGLASS SLEEVES |
|---|---|---|---|
| DIAMETER: | 1.0~30MM | BREAKDOWN VOLTAGE: | 1.2kv 1.5kv 2.5kv 4.0kv |
| PAKCAGE: | BY MESTER OR BY ROLL |

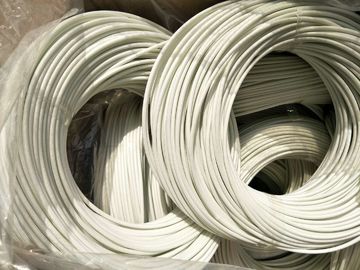

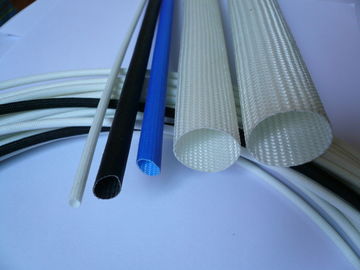

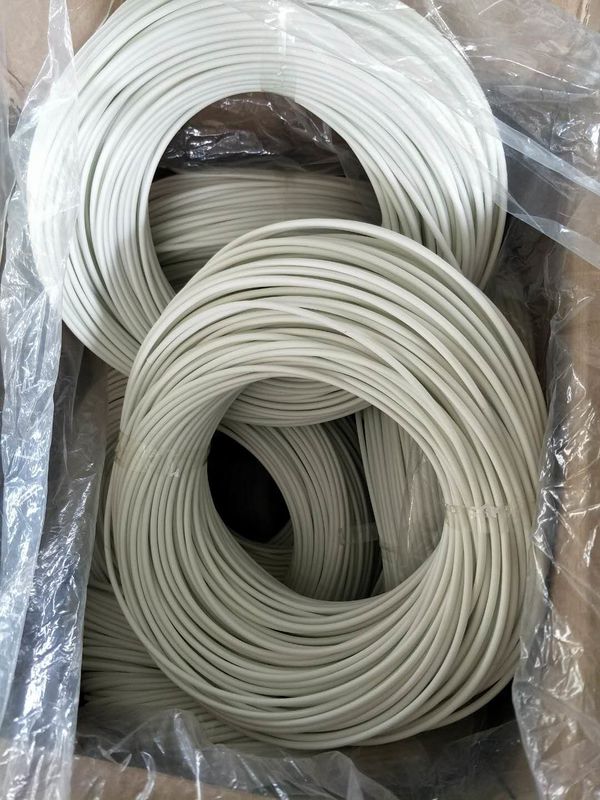

2753Silicone resin fiberglass self-extinguishing sleeving
Heat-resistance: H class 180℃
Breakdown Voltage: 1200v 1500v 2500v 4000v
Standard: JB/T7093-1993
Material : Non-alkali fiberglass braided sleeving
Coating: Self-extinguishing Silicone resion
Property: With high dielectric property ,good stiffness and cold resistance
Self-extingushing time less than 10s
Application: it can be used for the wiring insulation and mechanical protection for motors,electrical instruments, wireless sets
The specification available:
I.D.: 1-30mm
Length: in one meter or in coils. 50m 100m for one coils, also can be accroding to your request
Pacage: Plastic Bags or Carton
