NATURE PRESSPAPER WITH POLYESTER FILM FLEXIBLE COMPOSITE INSULATION PAPER

Products

INSULATION PRESSBOARD

707073142@qq.com

86 186 3744 2323

Contact Now

NATURE PRESSPAPER WITH POLYESTER FILM FLEXIBLE COMPOSITE INSULATION PAPER

MOQ:	1000KG
Price:	1~2.1USD/KG
Standard Packaging:	Cartons size 28281002mm, each roll weight 55kg, 16roll/pallet, pallet size 1.11.11.15m
Delivery Period:	5~8days
Payment Method:	D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Capacity:	1500KG/DAY

Detail Information

Product Description

Detail Information

Place of Origin

HENAN

Brand Name

NEWDESEN

Certification

ROHS ,ISO2000

Model Number

Model:

Material:

Press Paper /polyester Film

Colour:

NATURE /BROWN

Thickness:

0.13`0.50mm

Width:

1000mm

Brown Down Voltage:

5~7KV

Mylar Thickness:

0.025 0.030 0.036 And 0.05mm

Brand:

NEWDESEN

Stardand:

JB/T4059-1999

Ooperating Temperature:

120 Degree ,Class E

Product Description

6521 NATURE PRESSPAPER WITH POLYESTER FILM FLEXIBLE COMPOSITE INSULATING PAPER
Heat-resistance: E class 120℃
Standard: JB/T4095-1991
Material : Polyester film and fish paper

FLEXIBLE COMPOSITE INSULATING PAPER 6520 BROWN INSULATION PAPER composite foil is the composite of 6020 polyester film painted with adhensives and electrical-insulation paperboard. It is suitable to be used in electric machine and electric equipment for insulating groove or liner and for insulation between wire circles.

Property:

The surface is smooth and flat.
high dielectric property and mechanical strength.

Storage life---1 year
The specification available:

Thickness: 0.15mm 0.17mm 0.20mm 0.23mm 0.25mm 0.30mm 0.35mm 0.40mm 0.45mm

Width: 1000m color: blue, green, cyan, brown
Pacage: Plastic Bags or Carton

Number	Index		Unit	Describe
1	Thickness		mm	0.15	0.20	0.30
2	Tolerance value		mm	±0.020	±0.030	±0.030
3	Nominal quantification and deviation		g/m2	190±30	255±38	372±55
4	mylar thickness		um	0.03
5	Tensile strengh	MD no bending	N/10mm width	≥135	≥170	≥260
		TD no bending		≥80	≥100	≥120
5	Elongation	MD	%	≥2.0	≥3
		CD	%	≥6.0	≥8
6	Breakdown voltabe	no bending	KV	≥6.0
7		after bending		≥5.0
8	Bonding strength at room temperature		－	No delamination
9	Hot bonding (130±2)℃ 10min		－	No blister modelamination and no adhensive flow

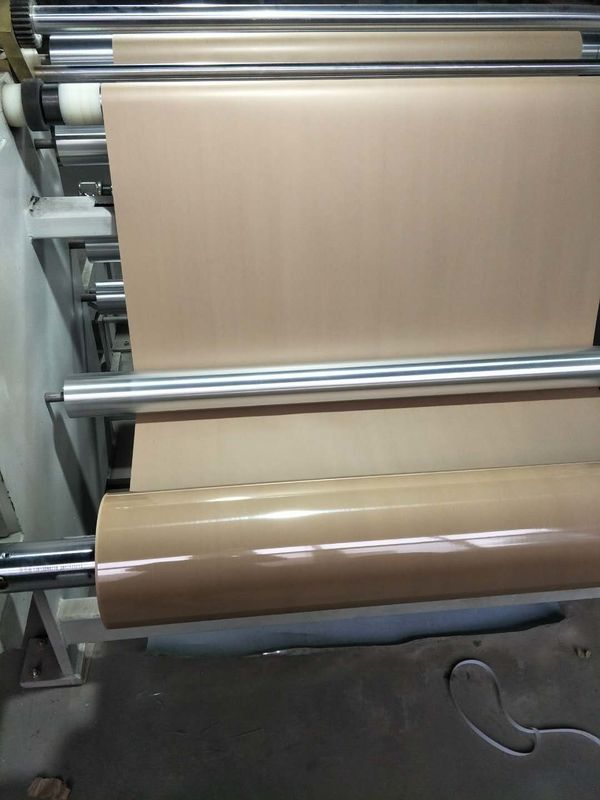

NATURE PRESSPAPER WITH POLYESTER FILM FLEXIBLE COMPOSITE INSULATION PAPER 0
