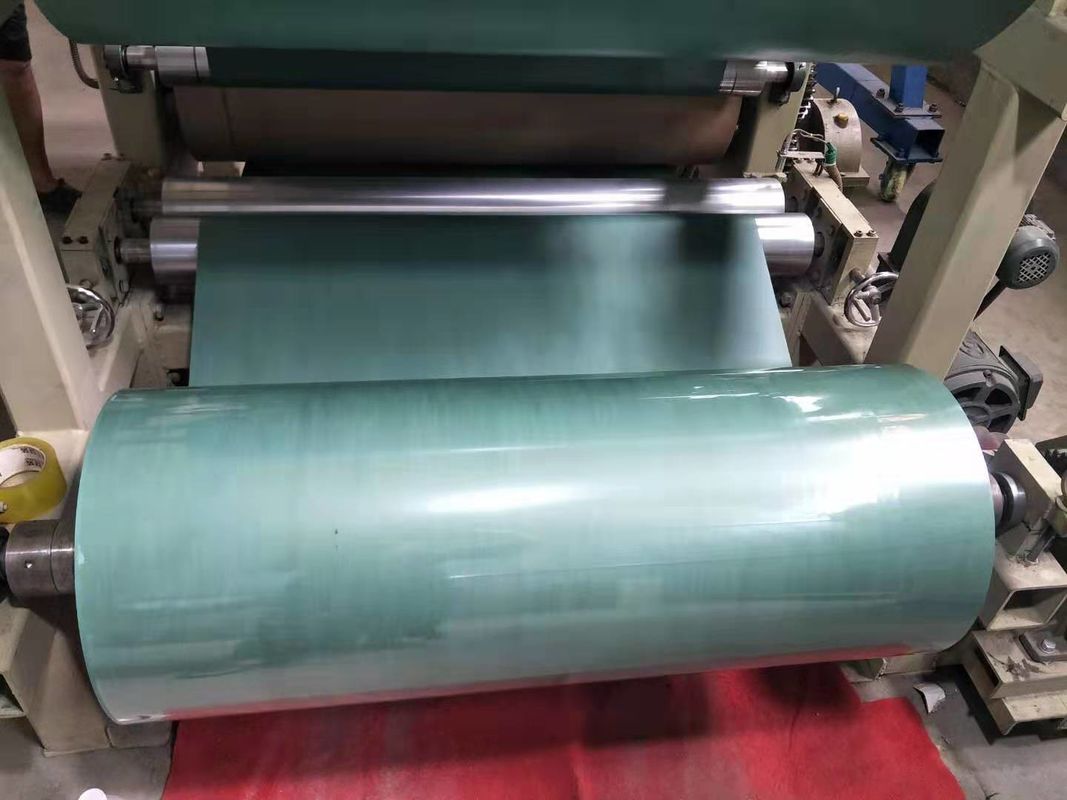

HIGH QUALITY POLYESTER FILM INSULATION PAPER 6520 GREEN COLOR
  • name
  • name
  • name
  • name

HIGH QUALITY POLYESTER FILM INSULATION PAPER 6520 GREEN COLOR

MOQ: 1000KG
Price: 1.6~1.8USD/KG
Standard Packaging: Cartons size 28*28*1002mm, each roll weight 55kg, 16roll/pallet, pallet size 1.1*1.1*1.15m
Delivery Period: 5~8days
Payment Method: D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Capacity: 1500KG/DAY
Detail Information
Product Description
Detail Information
Place of Origin
XUCHANG
Brand Name
NEWDESEN
Certification
ROHS ,UL
Model Number
6520
Model:
6520
Material:
Fish Paper /polyester Film
Colour:
GREEN, BROWN, DEEP BLUE,
Thickness:
0.13`0.50mm
Width:
1000mm
Brown Down Voltage:
5~7KV
Mylar Thickness:
0.025mm 0.030mm 0.036mm
Brand:
NEWDESEN
Stardand:
JB/T4059-1999
Ooperating Temperature:
120 Degree ,Class E
Logo:
Customer Logo,Custom Made Accepted And Company Brand Accepted
Certification:
ISO9001,SGS TUV ISO
Paper Weight:
135-350 Gsm
Design:
Custermers' Logo
Main Market:
North America,UK Brazil Chile France Greece Germany Spain Italy American China,Europe And Asia Pacific Region
Product Description

6520 polyester film composite electrical insulation paper is made of electrical fish paper and polyester film layer formed by adhesive bonding. this material has a excellent performance in both electrical and mechanical properties.
1).Heat-resistance: E class 120℃
2).Standard: JB/T4095-1991
3).Material : Polyester film and fish paper


4).Certification: ISO Quality certification;SGS System Certification;Electrical machinery industry by product quality supervision and inspection center material testing.
5).Thickness:0.13mm-0.50mm
6).Width:1000mm
7). MOQ:1000kg
8). Delivery time:10 days.


 Application: widly used for small motor and electrical insulation slot liner,gasket and turn to turn and layer insulation,liner insulation,transformer insulation,and other electrical insulation with termperature requirement not exceeding 120 C.

Class E insulation (120)

Property:

  • The surface is smooth and flat.
  • high dielectric property and mechanical strength.

Storage life---1 year

Pacage: Plastic Bags or Carton


Number Index Unit Describe
1 Thickness mm 0.15 0.20 0.30
2 Tolerance value mm ±0.020 ±0.030 ±0.030
3 Nominal quantification and deviation g/m2 190±30 255±38 372±55
4 mylar thickness um 0.03
5 Tensile strengh MD no bending N/10mm width ≥135 ≥170 ≥260
TD no bending ≥80 ≥100 ≥120
5 Elongation MD % ≥2.0 ≥3
CD % ≥6.0 ≥8
6 Breakdown voltabe no bending KV ≥6.0
7 after bending ≥5.0
8 Bonding strength at room temperature － No delamination
9 Hot bonding (130±2)℃ 10min － No blister modelamination and no adhensive flow
