| Tempat asal: | Xuchang |
| Nama merek: | NEWDESEN |
| Sertifikasi: | ROHS ,UL |
| Nomor model: | 6520 |
| Kuantitas min Order: | 1000KG |
|---|---|
| Harga: | 1.6~1.8USD/KG |
| Kemasan rincian: | Karton ukuran 28*28*1002mm, masing-masing gulungan berat 55kg, 16roll/pallet, ukuran palet 1.1*1.1*1 |
| Waktu pengiriman: | 5 ~ 8 hari |
| Syarat-syarat pembayaran: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Menyediakan kemampuan: | 1500 kg/hari |
| model: | 6520 | Bahan: | kertas ikan / film poliester |
|---|---|---|---|
| Warna: | HIJAU, COKLAT, BIRU TUA, | Ketebalan: | 0,13`0,50mm |
| Lebar: | 1000mm | Tegangan turun: | 5~7KV |
| Ketebalan Mylar: | 0,025mm 0,030mm 0,036mm | Merek: | BARUDESEN |
| bintang dan: | JB/T4059-1999 | Suhu Operasional: | 120 Derajat, Kelas E |
| logo: | Logo Pelanggan, Custom made diterima dan merek perusahaan diterima | Sertifikasi: | ISO9001,SGS TUV ISO |
| Berat Kertas: | 135-350 GSM | Desain: | Logo Custerers |
| Pasar Utama: | Amerika Utara, Inggris Brasil Chili Prancis Yunani Jerman Spanyol Italia Amerika Tiongkok, Eropa, da |

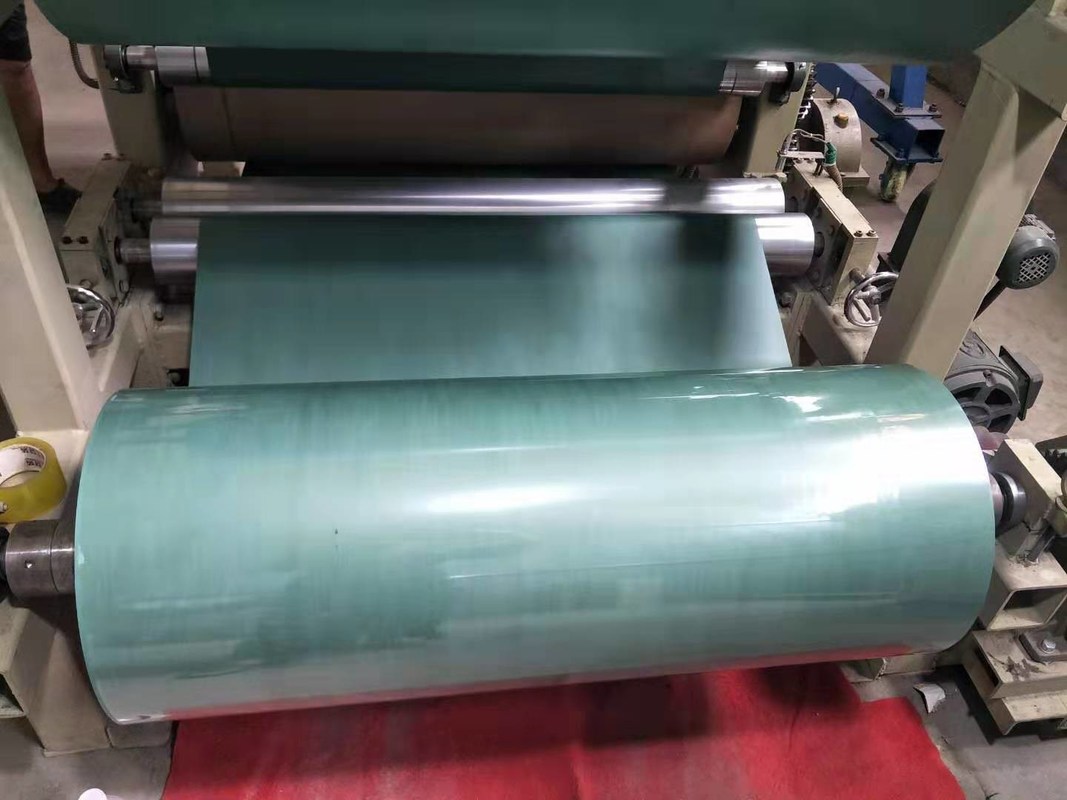

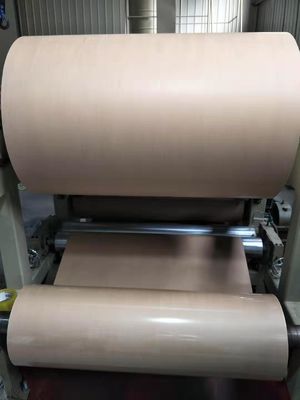

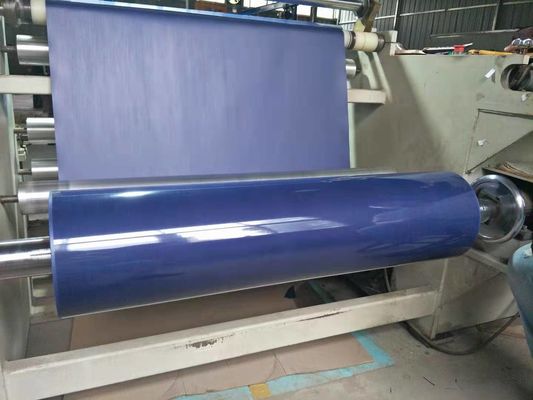

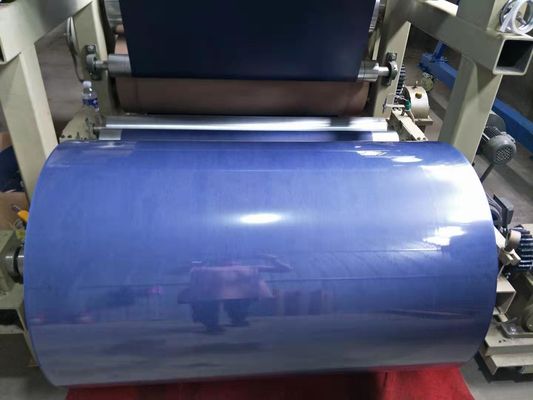

6520 polyester film composite electrical insulation paper is made of electrical fish paper and polyester film layer formed by adhesive bonding. this material has a excellent performance in both electrical and mechanical properties.
1).Heat-resistance: E class 120℃
2).Standard: JB/T4095-1991
3).Material : Polyester film and fish paper
4).Certification: ISO Quality certification;SGS System Certification;Electrical machinery industry by product quality supervision and inspection center material testing.
5).Thickness:0.13mm-0.50mm
6).Width:1000mm
7). MOQ:1000kg
8). Delivery time:10 days.
Application: widly used for small motor and electrical insulation slot liner,gasket and turn to turn and layer insulation,liner insulation,transformer insulation,and other electrical insulation with termperature requirement not exceeding 120 C.
Class E insulation (120)
Property:
Storage life---1 year
Pacage: Plastic Bags or Carton
| Number | Index | Unit | Describe | |||
| 1 | Thickness | mm | 0.15 | 0.20 | 0.30 | |
| 2 | Tolerance value | mm | ±0.020 | ±0.030 | ±0.030 | |
| 3 | Nominal quantification and deviation | g/m2 | 190±30 | 255±38 | 372±55 | |
| 4 | mylar thickness | um | 0.03 | |||
| 5 | Tensile strengh | MD no bending | N/10mm width | ≥135 | ≥170 | ≥260 |
| TD no bending | ≥80 | ≥100 | ≥120 | |||
| 5 | Elongation | MD | % | ≥2.0 | ≥3 | |
| CD | % | ≥6.0 | ≥8 | |||
| 6 | Breakdown voltabe | no bending | KV | ≥6.0 | ||
| 7 | after bending | ≥5.0 | ||||
| 8 | Bonding strength at room temperature | － | No delamination | |||
| 9 | Hot bonding (130±2)℃ 10min | － | No blister modelamination and no adhensive flow | |||
