ELECTRICAL INSULATION PRESSBOARD FOR ELECTRICAL EQUIPMENT AND TRANSFORMER
  • name
  • name
  • name

ELECTRICAL INSULATION PRESSBOARD FOR ELECTRICAL EQUIPMENT AND TRANSFORMER

MOQ: 1000 kg
Price: 1.3~2.0USD/KG
Standard Packaging: each pallet weight 500 &1000kg/pallet, the pallet size 1*2*0.35&0.6m
Delivery Period: after get payment into 10days delivery to Chinese port
Payment Method: L/C, T/T, D/A, Western Union, MoneyGram
Supply Capacity: 8~15days
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
NEWDESEN
Certification
ISO9001, ROHS
Model Number
INSULATION PRESSBOARD
Brand:
NEWDESEN
Model:
PRESSBOARD

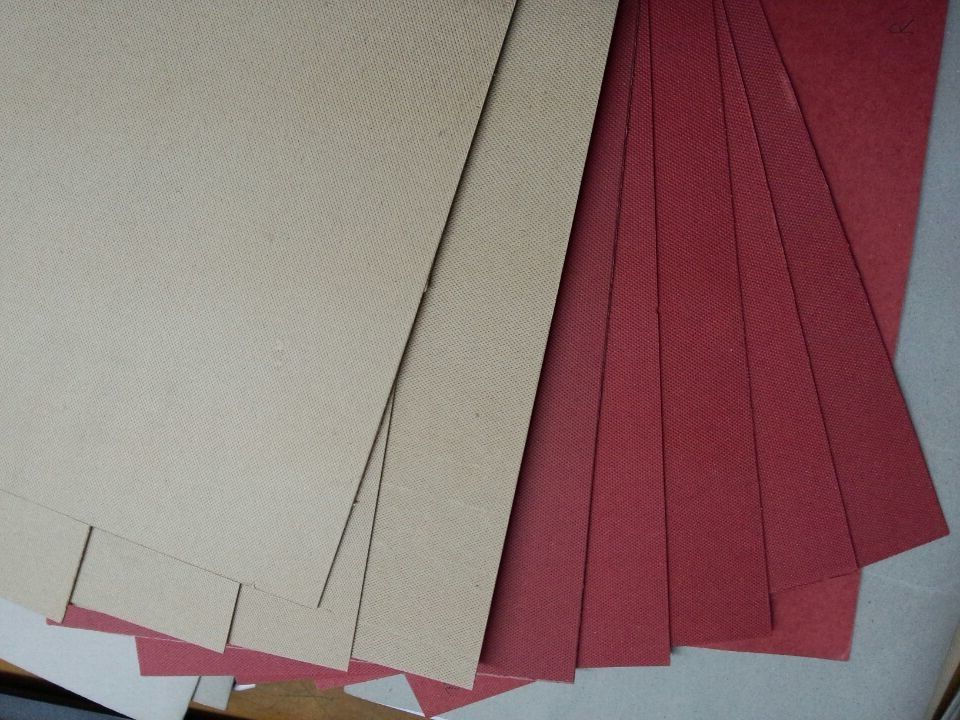

Colour:
NATURE, RED
Thickness:
0.5~4.0mm
Size:
1000*1000mm, 1000*2000mm, 1000*650mm
Max Voltage:
35~110KV
Package:
500kg/pallet , 1000kg/pallet
HS Code:
4811
Standard:
IEC60641-2:2004
Product Description

INSULATION PRESSBOARD
Insulation Pressboard is a special product based on pure cellulose taken from long-fibred coniferous wood. This is structured into a fibrous tissue without additional adhesive and then pressed. Due to its high chemical purity, pressboard is excellently suited as an insulation material in electric machines, capacitors and oil-filled transformers. 100% wood or cotton thick board is characterized by its high density.



Insulation class A (105 °C)
made by 100 % sulphate pulp
High hardness and stiffness
Low shrinkage and compatibility
High purity and mechanical strength
Good compatibility with liquid dielectrics
Further processing is ensured since the pressboard can be punched, folded, cut and formed without difficulty.



Applications
To use as insulations material in Power and Distribution Transformers
It is the base material for components like cyclinders, strips, spacers, rings. washers, plates, machine formed and moulded parts, punchings and laminates.

Available
Thickness: 0.80mm - 5.0mm
Sheet dimension: 1000mm x 2000mm, 2100mm x 4200mm
Special dimensions on request



XUCHANG NEWDESEN INDUSTRY CO.,LTD

QUALITY & TEST REPORT

Description of Goods 0.4mm PRESSPAPER Color:Natural
Products standard FACTORY STANDARD Quality class A
Property unit Normal Value Inspection result Inspection Method
Thickness mm 0.4 0.41 IEC60641-2.2004
Tolerance of Thickmess % ±10 -1.0
Apparent density g/cm3 1.00～1.20 1.02
Tensile strength M.D MPa ≥55 56.2
C.M.D MPa ≥30 31.3
Elongation M.D % ≥2.0 2.2
C.M.D % ≥6.0 7.4
Shrinkage M.D % ≤1.0 0.48
C.M.D % ≤1.5 1.4
Thickness % ≤7.0 6.3
Ash content % ≤1.0 0.95
Oil absorption % ≥10.0 19.1
PHofaqueous extract   6～9 7.45
Conductivity of aqueous extract mS/m ≤9.0 8.3
Electrical strength in oil kV/mm ≥8 8.2
Moisture content % ≤8.0 7.4

Conclusion::This product is qualified.

The test results are passed according with the Standard of Factory standard



Inspector: Verified by:

Inspect Department: Inspector Time:: 2017.11


ELECTRICAL INSULATION PRESSBOARD FOR ELECTRICAL EQUIPMENT AND TRANSFORMER 0

Mobile: 86 139 0374 4063

ELECTRICAL INSULATION PRESSBOARD FOR ELECTRICAL EQUIPMENT AND TRANSFORMER 1

Mail: creditzf@163.com

ELECTRICAL INSULATION PRESSBOARD FOR ELECTRICAL EQUIPMENT AND TRANSFORMER 2

Skype: zhufenglisa

ELECTRICAL INSULATION PRESSBOARD FOR ELECTRICAL EQUIPMENT AND TRANSFORMER 3

Wechat : 707073142

ELECTRICAL INSULATION PRESSBOARD FOR ELECTRICAL EQUIPMENT AND TRANSFORMER 4

QQ: 707073142

ELECTRICAL INSULATION PRESSBOARD FOR ELECTRICAL EQUIPMENT AND TRANSFORMER 5ELECTRICAL INSULATION PRESSBOARD FOR ELECTRICAL EQUIPMENT AND TRANSFORMER 6

WHATSAPP:86 139 0374 4063
