| Tempat asal: | Cina |
| Nama merek: | NEWDESEN |
| Sertifikasi: | ISO9001, ROHS |
| Nomor model: | PAPAN PERS ISOLASI |
| Kuantitas min Order: | 1000kg |
|---|---|
| Harga: | 1.3~2.0USD/KG |
| Kemasan rincian: | setiap palet berat 500 &1000kg/palet, ukuran palet 1*2*0,35&0,6m |
| Waktu pengiriman: | setelah mendapatkan pembayaran dalam 10 hari pengiriman ke pelabuhan Cina |
| Syarat-syarat pembayaran: | L/C, T/T, D/A, Western Union, MoneyGram |
| Menyediakan kemampuan: | 8 ~ 15 hari |
| Merek: | BARUDESEN | model: | PAPAN PERS |
|---|---|---|---|

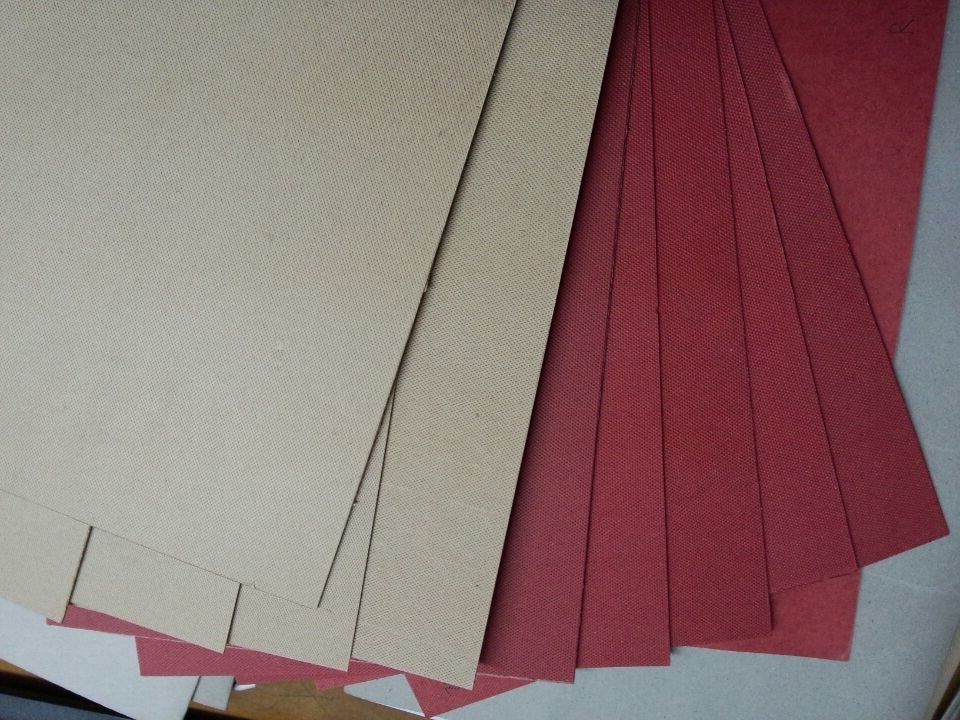

| Warna: | ALAM, MERAH | Ketebalan: | 0,5~4,0mm |
| Ukuran: | 1000*1000mm, 1000*2000mm, 1000*650mm | Tegangan maks: | 35~110KV |
| Kemasan: | 500kg/palet, 1000kg/palet | Kode Hs: | 4811 |
| Standar: | IEC60641-2:2004 |

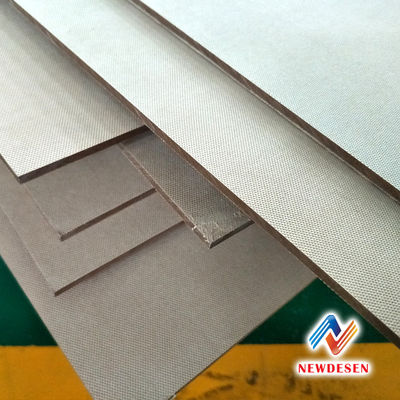

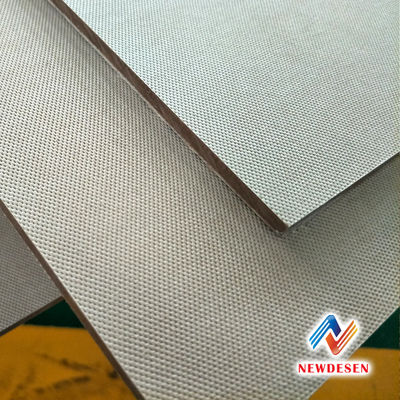

INSULATION PRESSBOARD
Insulation Pressboard is a special product based on pure cellulose taken from long-fibred coniferous wood. This is structured into a fibrous tissue without additional adhesive and then pressed. Due to its high chemical purity, pressboard is excellently suited as an insulation material in electric machines, capacitors and oil-filled transformers. 100% wood or cotton thick board is characterized by its high density.
Insulation class A (105 °C)
made by 100 % sulphate pulp
High hardness and stiffness
Low shrinkage and compatibility
High purity and mechanical strength
Good compatibility with liquid dielectrics
Further processing is ensured since the pressboard can be punched, folded, cut and formed without difficulty.
Applications
To use as insulations material in Power and Distribution Transformers
It is the base material for components like cyclinders, strips, spacers, rings. washers, plates, machine formed and moulded parts, punchings and laminates.
Available
Thickness: 0.80mm - 5.0mm
Sheet dimension: 1000mm x 2000mm, 2100mm x 4200mm
Special dimensions on request
XUCHANG NEWDESEN INDUSTRY CO.,LTD
QUALITY & TEST REPORT
| Description of Goods | 0.4mm PRESSPAPER Color:Natural | |||||||
| Products standard | FACTORY STANDARD | Quality class | A | |||||
| Property | unit | Normal Value | Inspection result | Inspection Method | ||||
| Thickness | mm | 0.4 | 0.41 | IEC60641-2.2004 | ||||
| Tolerance of Thickmess | % | ±10 | -1.0 | |||||
| Apparent density | g/cm3 | 1.00～1.20 | 1.02 | |||||
| Tensile strength | M.D | MPa | ≥55 | 56.2 | ||||
| C.M.D | MPa | ≥30 | 31.3 | |||||
| Elongation | M.D | % | ≥2.0 | 2.2 | ||||
| C.M.D | % | ≥6.0 | 7.4 | |||||
| Shrinkage | M.D | % | ≤1.0 | 0.48 | ||||
| C.M.D | % | ≤1.5 | 1.4 | |||||
| Thickness | % | ≤7.0 | 6.3 | |||||
| Ash content | % | ≤1.0 | 0.95 | |||||
| Oil absorption | % | ≥10.0 | 19.1 | |||||
| PHofaqueous extract | 6～9 | 7.45 | ||||||
| Conductivity of aqueous extract | mS/m | ≤9.0 | 8.3 | |||||
| Electrical strength in oil | kV/mm | ≥8 | 8.2 | |||||
| Moisture content | % | ≤8.0 | 7.4 | |||||
|
Conclusion::This product is qualified. The test results are passed according with the Standard of Factory standard
Inspector: Verified by: |
||||||||
Inspect Department: Inspector Time:: 2017.11
