3240 Laminated Epoxy Glass Fiber sheet For Electrical Insulation

Products

INSULATING SLEEVE

ELECTRIAL INSULATION TAPE

POLYESTER FILM

VARNISHED CLOTH

INSULATION PAPER

INSULATION PRESSBOARD

707073142@qq.com

86 186 3744 2323

Contact Now

3240 Laminated Epoxy Glass Fiber sheet For Electrical Insulation

MOQ:	1000 kg
Price:	2.6~4.3USD/KG
Standard Packaging:	each pallet weight 500 &1000kg/pallet, the pallet size 120.35&0.6m
Delivery Period:	after get payment into 10days delivery to Chinese port
Payment Method:	L/C, T/T, D/A, Western Union, MoneyGram
Supply Capacity:	8~15days

Detail Information

Product Description

Detail Information

Place of Origin

HENAN

Brand Name

NEWDESEN

Certification

ISO9001, ROHS

Model Number

Brand:

NEWDESEN

Model:

Color:

YELLOW, Little Green

Thickness:

0.5~100mm

Size:

1020*2020mm, 1120*2240mm

Density:

1.70~1.95g/cm3

Package:

500kg/pallet , 1000kg/pallet

HS Code:

392690

Standard:

JB/T8149.2-2000

Material:

Glass Fiber Cloth , Epoxy Resin

Type:

Insulation Sheet

Product Description

3240 Laminated Epoxy Glass Fiber sheet For Electrical Insulation

3240 glass fiber sheet is made of E-glass fabric impregnated with epoxy resin by processing under high temperature and pressure.

This fiberglass epoxy sheet having excellent mechanical and electrical properties, good heat and moisture resistance.

Applicable to insulating structural parts in motors, mechanical and electrical equipment, and can be used in transformer oil.

3240 fiberglass epoxy sheet Technical Data

Properties		Unit	Grade 3240
Flexural strength perpendicular to laminations	≥	MPa	340
Flexural strength parallel to laminations	≥	MPa	290
Impact strength parallel to laminations (Charpy)	≥	kJ/m^2	33
Insulation resistance after immersion in water (D-24/23)	≥	W	5.0×10^8
Dielectric strength perpendicular to laminations (in 90±2℃ transformer oil, 3 mm in thickness)	≥	MV/m	17
Breakdown voltage parallel to laminations (in 90±2℃ transformer oil)	≥	kV	30
Dissipation factor (50Hz)	≤	-	0.05
Water absorption (D-24/23, 1.6mm in thickness)	≤	mg	19
Density	-	g/cm^3	(1.70-1.90)
Color	-	-	Yellow

Size: 0.50~120mm x1010mmx2010mm
Color: YELLOW
Package: Pallet

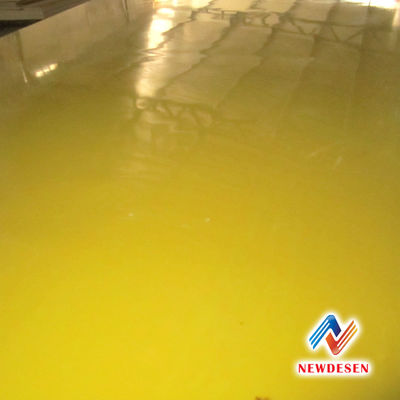

3240 Laminated Epoxy Glass Fiber sheet For Electrical Insulation 0

Wechat : 707073142

3240 Laminated Epoxy Glass Fiber sheet For Electrical Insulation 1

QQ: 707073142

3240 Laminated Epoxy Glass Fiber sheet For Electrical Insulation 2

Skype: Zhufenglisa

3240 Laminated Epoxy Glass Fiber sheet For Electrical Insulation 3

Mobile: 86 139 0374 4063

QQ: 707073142

3240 Laminated Epoxy Glass Fiber sheet For Electrical Insulation 4

WHATSAPP:86 139 0374 4063

Heat Resistance Epoxy Glass Cloth Fiber Board Insulation Fiberglass Material Plate 3240 Sheets

Contact Now

Fiber Board Fabric Fiberglass Plate 3240 Epoxy Glass Cloth Sheet

Contact Now

3025 Phenolic Cotton Cloth Laminate Sheet & insulation sheet

Contact Now

ELECTRICAL INSULATION NATURE PRESSBOARD for power and distribution transformer

Contact Now

ELECTRICAL INSULATION PRESSBOARD FOR ELECTRICAL EQUIPMENT AND TRANSFORMER

Contact Now

INSULATION PRESSBOARD FOR ELECTRICAL EQUIPMENT PRESSPAPER /PRESSBOARD FOR TRANSFORMER

Contact Now

RED COLOR PRESSBOARD

Contact Now
