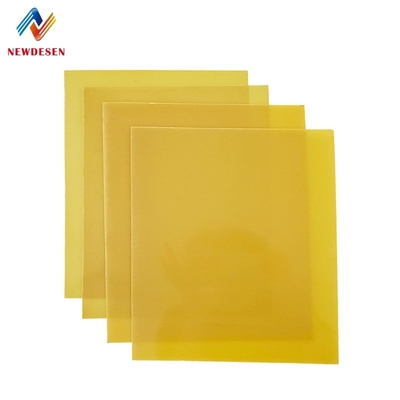

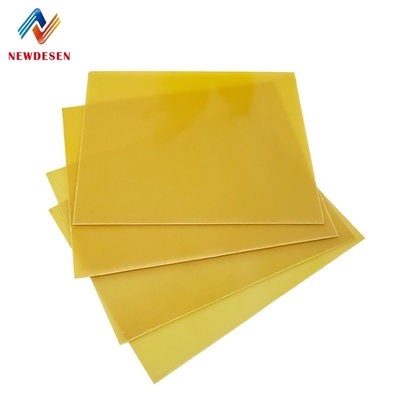

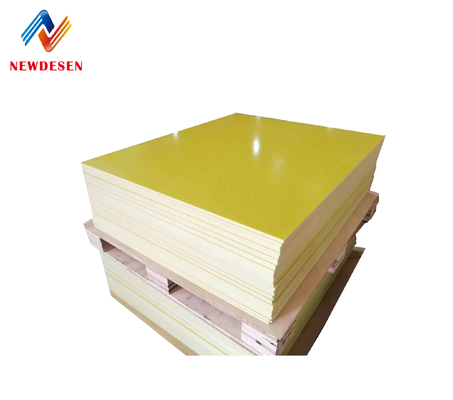

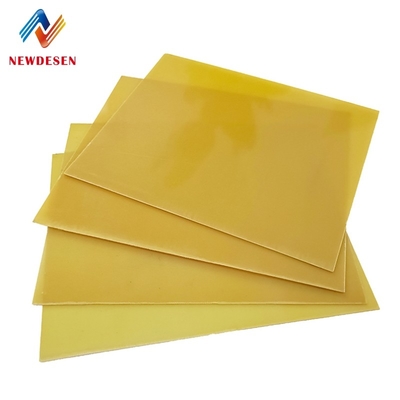

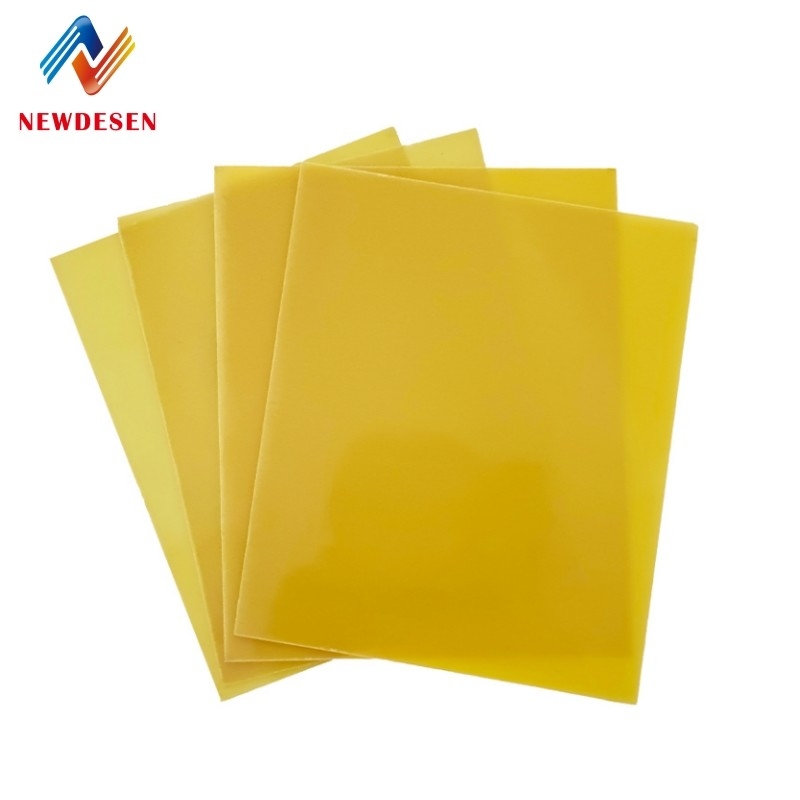

Heat Resistance Epoxy Glass Cloth Fiber Board Insulation Fiberglass Material Plate 3240 Sheets

3240epoxy fiber glass sheet

Place of Origin: China (Mainland)
Type: fiberglass Insulation Materials Sheet
Model Number: 3240
Temperature: 130-180 Degree
Application: High Voltage temperature insulation material
Material: Epoxy resin and glass fiber cloth
Tensile Strength: ≥340MPa
Density: 2.08g/cm3
Thickness:0.1-200mm
Usage: Motor/Transformer Insulation Protection
Parallel bending strength: ≥33KJ/M2
Vertical electric strength: ≥9Kv
Parallel breakdown voltage: ≥35Kv
Dielectric loss factor: ≤0.4
Surface resistivity: ≥10 13Ω
Surface: flat and smooth
Normal Size: 1020mmx 2040mm (40" x 80") or customized
Rated Voltage: 10-1000 kv
Size: Regular 980mm×1980mm(38"x78");1020mmx1220mm(40"x48");1020mm x 2040mm(40" x 80");1220mmx2470mm(48" x 97") Special specifications can be customized.
Color: Yellow Black Green or according to customer's requirment
Water absorption(1-20mm thickness): 17~73mg
Feature: Heat-Resistant,Dielectric Properties
Sample: Sample Avaliable
Standard:GB/T 1303-2009 / IEC60893-2003
Certification: SGS, ROHS,CTI
