| Place of Origin: | HENAN |
| Brand Name: | NEWDESEN |
| Certification: | ROHS, UL |
| Model Number: | 6640 |
| Minimum Order Quantity: | 300 kg |
|---|---|
| Price: | 7~20USD/KG |
| Packaging Details: | each roll weight 53~58kg into box, then 16roll packing into pallet |
| Delivery Time: | after get payment into 10days delivery to Chinese port |
| Payment Terms: | L/C, T/T, D/A, Western Union, MoneyGram |
| Supply Ability: | 8~15days |
| Brand: | DUPONT NOMEX | Model: | 6640 |
|---|---|---|---|
| Colour: | Yellow Line & Original Line On White Body | Temperature Class: | Class F & Class H |
| Width: | 914( Mill-edge) 904(scrap Edge) | Material: | DUPONT NOMEX ,Polyester Film |
| Thickness: | 0.13~0.50mm | Place Of Origin: | HENAN |
| Roll Weight: | 53~58kg Per Roll | Standard: | JB/T56073.47-1999 |

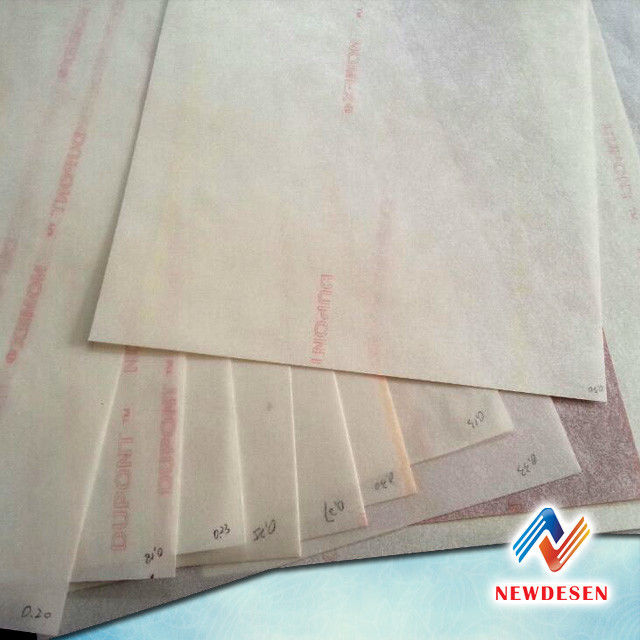

ELECTRIAL INSULATING PAPER NMN & NPN NOMEX-POLYESTER-NOMEX LAMINATES CLASS F INSULATION PAPER . NMN Nomex-mylar-Nomex Laminated is a three-poly flexible laminated consisting of PET film coated on both sides with Dupont Nomex Paper. NMN also called as NPN, shows high thermal resistance,excellent mechanical properties, and electrical properties, it is designed for automatic insertion machines.
can provide size :
0.13mm, 0.15mm, 0.18mm, 0.20mm ,0.25mm ,0.30mm ,0.33mm, 0.35mm, 0.38mm, 0.40mm, 0.45mm 0.50mm .width:914mm
Application Remarks
NMN is mainly used as a slot liner,slot closure, phase-to-phase and turn-to-turn insulation in low or medium voltage electrical motors of Class F (155℃) or Class H (180℃) insulation system ,in addition, its also used as interlayer insulation in transformers and other electrical machines and appliances
Appearance :
Surface of materials is uniformity, smooth and haven’t air bubble ,pinhole, ripple and blemish ets
| No | Technical Speclification(NMN) | Unit | Values | |||||||||||||||||
| 1 | Thickness | mm | 0.15 | 0.18 | 0.20 | 0.23 | 0.25 | 0.30 | 0.35 | |||||||||||
| 2 | Thickness tolerance | mm | ±0.02 | ±0.02 | ±0.03 | ±0.03 | ±0.03 | ±0.04 | ±0.04 | |||||||||||
| 3 | Nominal Grammage and Tolerance | g | 180±25 | 210±30 | 240±30 | 260±35 | 300±40 | 350±50 | 430±50 | |||||||||||
| 4 | Tensile Strength | MD | No Bending |
N/10 mm |
≥150 | ≥160 | ≥180 | ≥200 | ≥220 | ≥270 | ≥320 | |||||||||
| After Bending | ≥80 | ≥110 | ≥130 | ≥150 | ≥180 | ≥200 | ≥260 | |||||||||||||
| TD | No Bending | ≥90 | ≥110 | ≥130 | ≥150 | ≥180 | ≥200 | ≥250 | ||||||||||||
| After Bending | ≥70 | ≥90 | ≥110 | ≥130 | ≥150 | ≥170 | ≥200 | |||||||||||||
| 5 | Elongation | MD | % | ≥10 | ≥12 | |||||||||||||||
| TD | ≥15 | ≥18 | ||||||||||||||||||
| 7 |
MD Breakdown voltage TD |
KV | ≥7 | ≥10 | ≥11 | ≥12 | ≥13 | ≥15 | ≥20 | |||||||||||
| ≥6 | ≥8 | ≥9 | ≥10 | ≥12 | ≥13 | ≥16 | ||||||||||||||
| 8 | Bond strength at 25 degree C | No delamination | ||||||||||||||||||
| 9 | Bond strength at 155 degree C | No delamination ,no blister,no adhesive flow | ||||||||||||||||||
| 10 | Temperature | ≥180 | ||||||||||||||||||
