ELECTRIAL INSULATING PAPER NMN & NPN NOMEX-POLYESTER-NOMEX LAMINATES CLASS F INSULATION PAPER
  • name
  • name
  • name
  • name

ELECTRIAL INSULATING PAPER NMN & NPN NOMEX-POLYESTER-NOMEX LAMINATES CLASS F INSULATION PAPER

MOQ: 300 kg
Price: 7~20USD/KG
Standard Packaging: each roll weight 53~58kg into box, then 16roll packing into pallet
Delivery Period: after get payment into 10days delivery to Chinese port
Payment Method: L/C, T/T, D/A, Western Union, MoneyGram
Supply Capacity: 8~15days
Detail Information
Product Description
Detail Information
Place of Origin
HENAN
Brand Name
NEWDESEN
Certification
ROHS, UL
Model Number
6640
Brand:
DUPONT NOMEX
Model:
6640
Colour:
Yellow Line & Original Line On White Body
Temperature Class:
Class F & Class H
Width:
914( Mill-edge) 904(scrap Edge)
Material:
DUPONT NOMEX ,Polyester Film
Thickness:
0.13~0.50mm
Place Of Origin:
HENAN
Roll Weight:
53~58kg Per Roll
Standard:
JB/T56073.47-1999
Product Description

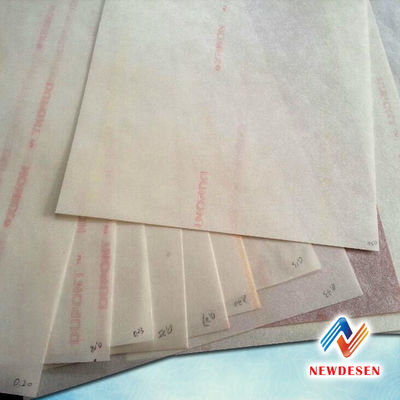

ELECTRIAL INSULATING PAPER NMN & NPN NOMEX-POLYESTER-NOMEX LAMINATES CLASS F INSULATION PAPER . NMN Nomex-mylar-Nomex Laminated is a three-poly flexible laminated consisting of PET film coated on both sides with Dupont Nomex Paper. NMN also called as NPN, shows high thermal resistance,excellent mechanical properties, and electrical properties, it is designed for automatic insertion machines.



can provide size :

0.13mm, 0.15mm, 0.18mm, 0.20mm ,0.25mm ,0.30mm ,0.33mm, 0.35mm, 0.38mm, 0.40mm, 0.45mm 0.50mm .width:914mm



Application Remarks

NMN is mainly used as a slot liner,slot closure, phase-to-phase and turn-to-turn insulation in low or medium voltage electrical motors of Class F (155℃) or Class H (180℃) insulation system ,in addition, its also used as interlayer insulation in transformers and other electrical machines and appliances



Appearance :

Surface of materials is uniformity, smooth and haven’t air bubble ,pinhole, ripple and blemish ets



No Technical Speclification(NMN) Unit Values
1 Thickness mm 0.15 0.18 0.20 0.23 0.25 0.30 0.35
2 Thickness tolerance mm ±0.02 ±0.02 ±0.03 ±0.03 ±0.03 ±0.04 ±0.04
3 Nominal Grammage and Tolerance g 180±25 210±30 240±30 260±35 300±40 350±50 430±50
4 Tensile Strength MD No Bending

N/10

mm

 ≥150 ≥160 ≥180 ≥200 ≥220 ≥270 ≥320
      After Bending   ≥80 ≥110 ≥130 ≥150 ≥180 ≥200 ≥260
    TD No Bending   ≥90 ≥110 ≥130 ≥150 ≥180 ≥200 ≥250
      After Bending   ≥70 ≥90 ≥110 ≥130 ≥150 ≥170 ≥200
5 Elongation MD   % ≥10 ≥12
    TD     ≥15 ≥18
7

MD

Breakdown voltage

TD

 KV ≥7 ≥10 ≥11 ≥12 ≥13 ≥15 ≥20
      ≥6 ≥8 ≥9 ≥10 ≥12 ≥13 ≥16
8 Bond strength at 25 degree C   No delamination
9 Bond strength at 155 degree C   No delamination ,no blister,no adhesive flow
10 Temperature   ≥180
