Customizable Insulation Paper MGM Mylar Glass Fiber Cloth Composite for Electrical Motors
  • name
  • name
  • name
  • name
  • name

Customizable Insulation Paper MGM Mylar Glass Fiber Cloth Composite for Electrical Motors

MOQ: 600 kg
Price: 4~7USD/KG
Standard Packaging: each roll weight 53~58kg into box, then 16roll packing into pallet
Delivery Period: after get payment into 10days delivery to Chinese port
Payment Method: L/C, T/T, D/A, Western Union, MoneyGram
Supply Capacity: 10000KGS/PER MONTHS
Detail Information
Product Description
Detail Information
Place of Origin
XUCHANG
Brand Name
NEWDESEN
Certification
ROHS, UL
Model Number
MGM
Brand:
NEWDESEN
Model:
MGM
Colour:
WHITE And GOLD YELLOW
Temperature Class:
Class F & Class H
Width:
1000mm Or 1200mm
Material:
NON-ALKALI FIBERGLASS CLOTH And POLYESTER FILM
Thickness:
0.15~0.40mm
Place Of Origin:
XUCHANG
Roll Weight:
53~58kg Per Roll
HS CODE:
392069
Product Description

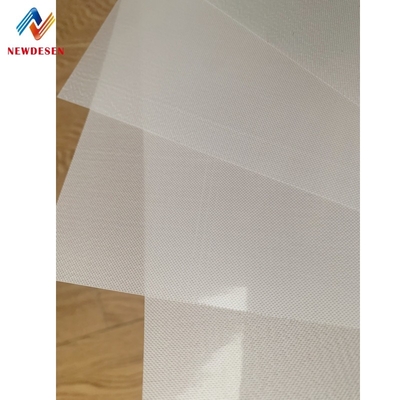

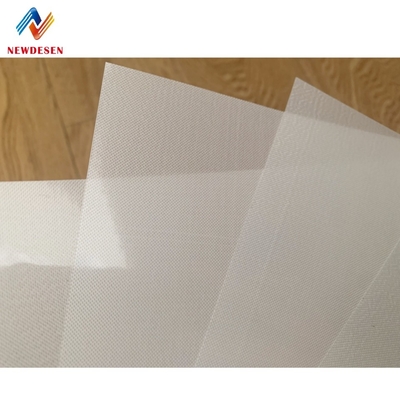

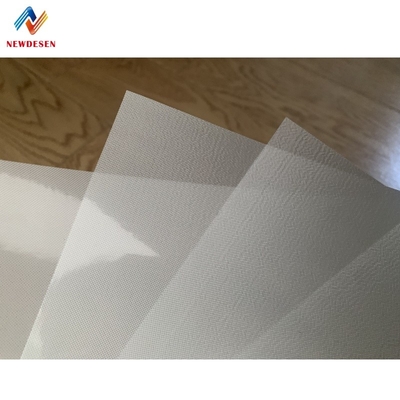

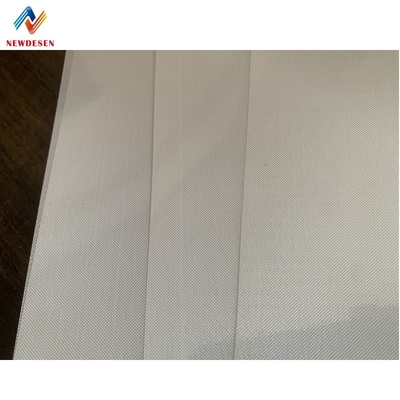

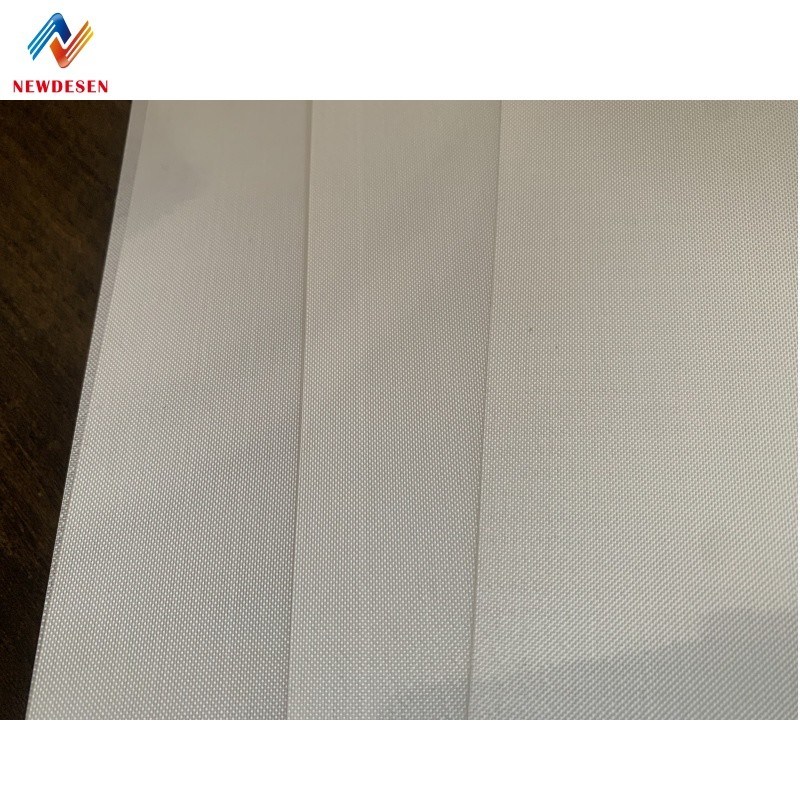

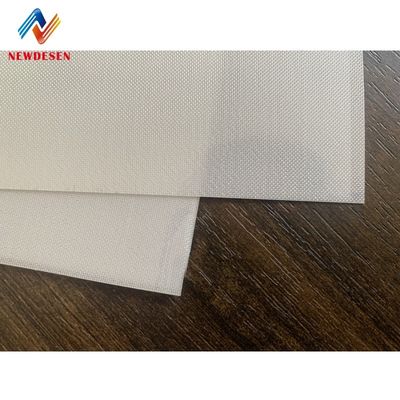

MGM Mylar Glass fiber cloth Mylar flexible composite foil  the MGM  flexible composite Made of two layers of Polyester film on both sides, and with one layer of alkali-free fiberglass

cloth in the middle.



can provide thickness:

0.13mm, 0.15mm, 0.18mm, 0.20mm ,0.25mm ,0.30mm ,0.33mm, 0.35mm, 0.38mm, 0.40mm, 0.45mm 0.50mm .width:914mm





Features:

  Excellet mechanical strength and electrical properties of polyester film.

  Good flexibility and the most ability of fiberglass cloth.

  Insulation Class: F Class (155℃.

  Appearance: Smooth, beautiful, shining.



Application Remarks

MGM composite flexible  is mainly used as a slot liner,slot closure, phase-to-phase and turn-to-turn insulation in low or medium voltage electrical motors of Class F (155℃) or Class H (180℃) insulation system ,in addition, its also used as interlayer insulation in transformers and other electrical machines and appliances



Performance requirements as follows



No. Name Unit Value
1 Thickness mm 0.13 0.15 0.17 0.20 0.25
2 Tolerance of thickness mm ± 0.015 ± 0.02
3 Grammage and tolerance g /m2 178±15 197±20 233±25 267±25 337±30
4 Tensile strength, no bending MPa ≥ 150
5 Elongation at break, no bending % ≥ 60
6 Dimensional stability at high temperature ℃ ≥ 200
7 Breakdown ≥ KV 11 13 14 15 18
8 Adhesive property at room temperature -- No delamination
9 Adhesive property at room temperature,(180 ±2)℃,10 minutes -- No delamination, no bubble, no adhesive flow
10 Long time thermostability,Insulation Class ℃ 155



Customizable Insulation Paper MGM Mylar Glass Fiber Cloth Composite for Electrical Motors 0

Mobile: 86 139 0374 4063

Customizable Insulation Paper MGM Mylar Glass Fiber Cloth Composite for Electrical Motors 1

Mail: creditzf@163.com

Customizable Insulation Paper MGM Mylar Glass Fiber Cloth Composite for Electrical Motors 2

Skype: zhufenglisa  Wechat : 70707314   QQ: 707073142

Customizable Insulation Paper MGM Mylar Glass Fiber Cloth Composite for Electrical Motors 3

WHATSAPP:86 139 0374 4063

Customizable Insulation Paper MGM Mylar Glass Fiber Cloth Composite for Electrical Motors 4
