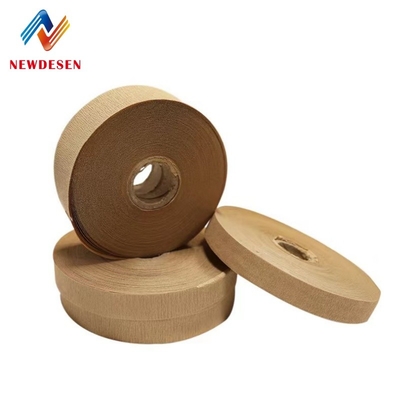

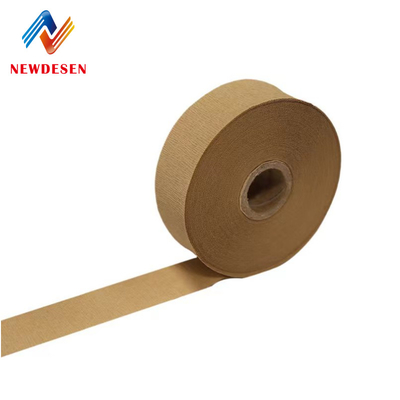

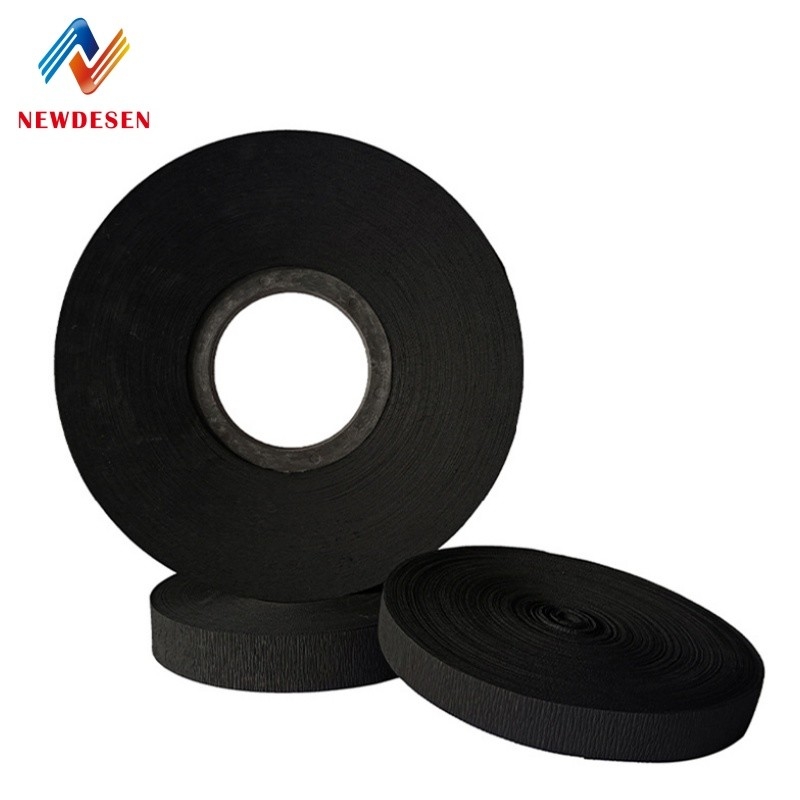

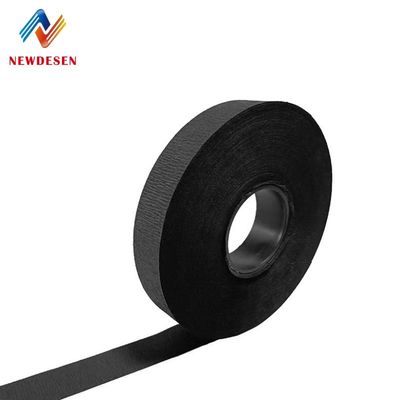

Transformer Insulation crepe Paper with Thickness Options of 0.35-0.90mm

Products

INSULATION PRESSBOARD

707073142@qq.com

86 186 3744 2323

Contact Now

Transformer Insulation crepe Paper with Thickness Options of 0.35-0.90mm

MOQ:	300kgs
Price:	USD 2.0~3.1usd/kg
Standard Packaging:	Waterproof film with carton then package into pallet
Delivery Period:	5~7days
Payment Method:	L/C, D/P, T/T, Western Union
Supply Capacity:	1000kg per week

Detail Information

Product Description

Detail Information

Place of Origin

HENAN

Brand Name

NEWDESEN

Certification

SGS, ROHS ,CCC

Model Number

CREPE PAPER INSULATION TAPE

Base Paper Thickness:

0.05mm 0.075mm 0.08mm 0.10mm 0.13mm

Can Provide Width:

20mm 25mm 30mm 40mm~960mm

Base Paper:

XueShan Brand Paper

Wrinkled:

Coarse Texture And Microgroove

Color:

Nature Or Brown

Product Description

Insulation Crepe Paper is one of the most important solid insulation materials used in transformers. Its quality directly influences the life span of the transformer. The BDV is enhanced by up to 80% as compared to base kraft paper. To ensure of best quality of Crepe paper, the base kraft paper is manufactured using longer fibers of pure wood pulp.

Features
1. Insulation class A (105 ° C)
2. Color: Natural brown
3. High purity and high oil-absorption
4. Good dielectric strength
5. Excellent compatibility with insulating liquids (mineral oils, silicon oils and ascerol oils).
6. Free from conductive particles
Applications:
Crepe Papers are used for transformer
thickness: 0.05-0.13mm

special : base paper thickness 0.05mm 0.075mm 0.08mm 0.10mm 0.13mm

Thickness tolerance :+/-0.05mm

Crinkly insulating paper width have 20mm 25mm 30mm 40mm and 50mm also can provide 960mm

Storage : store in a dry and clean room and keep away from fire or heat, or in the sun.

No	Item		unit	(paper thickness)
No	Item		unit	0.05mm	0.075mm	0.08mm	0.13mm
1	Thickness of crepe paper		mm	0.35±0.05	0.38±0.08	0.40-0.60	0.70-0.90
2	(ash content)		%	≤0.7	≤0.7	≤0.8	≤0.8
3	(water content)		%	≤7.0	≤7.0	≤8.0	≤8.0
4	PH(water Ph)			6.0-8.0	6.0-8.0	6.0-8.0	6.0-8.0
5	(oil pollution)		%	<0.1
6	Tensile strength	(MD)	N	30	40	45	50
6	Tensile strength	TD	N	20	30	35	40
7	(crepe percentage)		%	50
8	(Breakdown voltage)		V/	≥950	≥1000	≥1000	≥1000
9	Electrical conductivity		ms/m			≤9.0	≤10
10	density		g/m2	60±10%	110±10%	110±10%	120-150

Crepe papers are made from base paper weighing 25 - 180 G/M2 (15 -111 lbs/ream).
