ELECTRIC CREPE INSULATION PAPER USE FOR OIL-IMMERSED TRANSFORMER

MOQ:	300kgs
Price:	RMB/USD + 2.5~4.5usd/kg
Standard Packaging:	Waterproof film with carton then package into pallet
Delivery Period:	5~7days
Payment Method:	L/C, D/P, T/T, Western Union
Supply Capacity:	1000kg per week

Detail Information

Product Description

Detail Information

Place of Origin

HENAN

Brand Name

NEWDESEN

Certification

SGS, ROHS ,CCC

Model Number

CRINKLED INSULATING PAPER

Base Paper:

XueShan Brand Paper

Base Paper Thickness:

0.05mm 0.075mm 0.08mm 0.10mm 0.13mm

Wrinkled:

Coarse Texture And Microgroove

Can Provide Width:

20mm 25mm 30mm 40mm~960mm

Color:

Nature Or Brown

Product Description

Electrical crepe insulation paper for transformer

We supply electrical insulation crepe paper, it is mainly used for winding insulation of oil-immersed transformer, reactor and mutual inductor. The whole width is 550mm or 1100mm. We can cut it to 8mm. The recommended thickness is 0.35mm, 0.46mm,0.55mm heat resistance 0.65mm and 0.8mm.

Technical Parameters

Property	Unit	Standard
Thickness and tolerance	Mm	0.35±0.05	0.46±0.05	0.65±0.1	0.8±0.01	Heat resisting 0.55±0.88
Roll of width	Mm	550±2	550±2	550±2	1100±3	550±2
Base weight	g/m3	86-96	126-136	180-190	280-290	140-170
Density	g/cm3	0.15-0.3	0.2-0.35	0.21-0.44	0.24-0.37	0.21-0.38
Tensile strength	Kg/15mm	MD≥2.0	MD≥4.0	MD≥6.0	MD≥6.0	MD≥5.0
Elongation	%	MD≥100	MD≥100	MD≥100	MD≥80	MD≥100
Breakdown voltage	Kv	Ave.≥1.00	Ave.≥1.10	Ave.≥1.30	Ave.≥1.50	Ave.≥1.20
Breakdown voltage	Kv	Min.≥0.70	Min≥0.80	Min≥1.00	Min≥2.01	Min≥0.90
Nitrogen content	%	--	--			1.3-3.0
Moisture content	%	≤10
Ash content	%	≤0.7
Protube rances	Number/inch	≥20

special : base paper thickness 0.05mm 0.075mm 0.08mm 0.10mm 0.13mm

Thickness tolerance :+/-0.05mm

Crinkly insulating paper width have 8mm 10mm 20mm 25mm 30mm 40mm and 50mm also can provide 550mm and 960mm

Storage : store in a dry and clean room and keep away from fire or heat, or in the sun.

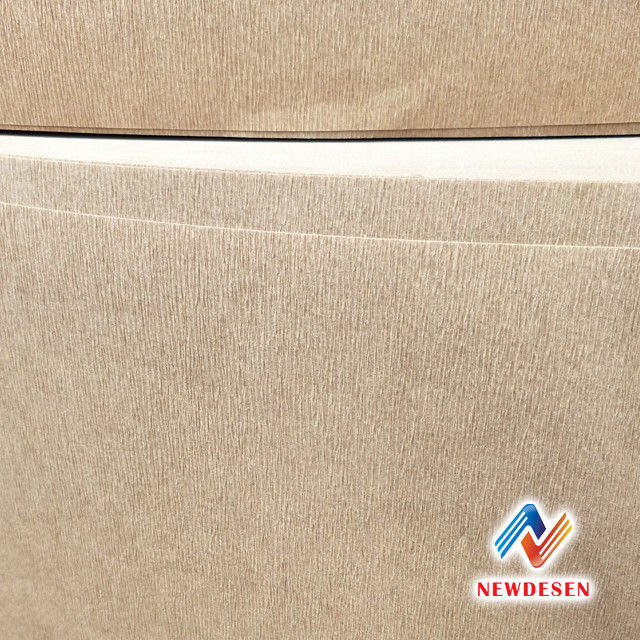

ELECTRIC CREPE INSULATION PAPER USE FOR OIL-IMMERSED TRANSFORMER 0
