DIAMOND DOTTED DDP ELECTRICAL INSULATING PAPER FOR OIL TRANSFORMER

MOQ:	1000 kg
Price:	2.6~3.2USD/KG

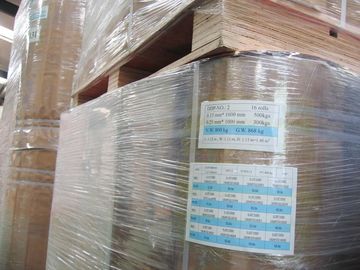

Standard Packaging:	each roll weight 53~58kg into box, then 16roll packing into pallet
Delivery Period:	after get payment into 10days delivery to Chinese port
Payment Method:	L/C, T/T, D/A, Western Union, MoneyGram
Supply Capacity:	8~15days

Detail Information

Product Description

Detail Information

Place of Origin

HENAN

Brand Name

NEWDESEN

Certification

ROHS, UL

Model Number

DIAMOND DOTTED INSULATING PAPER

Brand:

NEWDESEN

Model:

DDP INSULATION PAPER

Colour:

ORIGINAL COLOR FOR EPOXY RESIN

Width:

625~1300mm

Material:

CABLE PAPER ,EPOXY RESIN

Thickness:

0.08~0.50mm

Place Of Origin:

HENAN

Roll Weight:

53~58kg Per Roll

Standard:

JB/T 10442.3-2004

Product Description

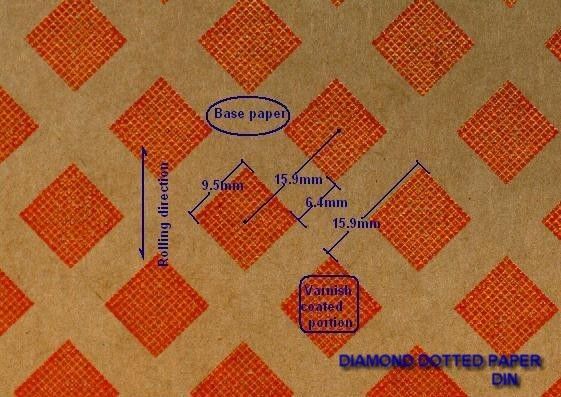

DIAMOND DOTTED DDP ELECTRICAL INSULATING PAPER FOR OIL TRANSFORMER

Name of goods:

Diamond Pattern Paper, Diamond Dotted Insulating Presspaper, Diamond Dotted paper, DDP, Double Sided

Diamond Pattern Resin Coated Cable Paper

Dimensions

Thickness(mm) ---0.08mm, 0.13mm ,0.18mm , 0.20mm 0.25mm ,0.35mm ,0.40mm 0.50mm

Width (mm)---.625 ,960,1000,1020,1250

We also can produce Width of DDP according to customer’s requirements

Roll Diameter--- 280-330mm

Core Diameter --- 76±2mm

ITEM	TYPICAL VALUES	MATTER OF FACT
Caliper: (inch) (millimeter)	0.003 0.08
Thickness: mm	0.08±0.008mm +0.01	0.088 (0.088,0.088,0.089)
Width: mm	1000±5	1001-1003
Apparent density: g/cm³	≥0.95	0.98
Moisture content ,﹪	4.0 to 8.0﹪	5.8
PH water extract:	6.5 to 8.5	7.13
Elongation MD ﹪ CMD ﹪	≥2.0 ≥5.4	2.3 7.8
Edge Internal tearing resistance N Machine direction: Cross machine direction		26.4 27.5
Tear strength, Machine direction: mN Cross machine direction: mN	≥450 ≥500	612 800
Conductivity of aqueous extract Ms/m	≤8.0	6.6
Ash content,﹪ maximum	≤0.7	0.19
Coating thickness per side mm	0.006 to 0.012	0.012
Tensile strength, N/mm² Machine direction: Cross machine direction:	70 35	92.5 48.5
Dielectric breakdown: (volts/layer ,dry test)	≥750	967 (1000,1000,900)
Bond strength: Kpa	450kpa	760
