| Lugar de origem: | Henan |
| Marca: | NEWDESEN |
| Certificação: | ROHS, UL |
| Número do modelo: | 2440 |
| Quantidade de ordem mínima: | 300kg |
|---|---|
| Preço: | 6.6USD~7.5USD/KG |
| Detalhes da embalagem: | cada rolo pesa 11 ~ 13kg, cada caixa 4 rolos. pacote final em palete |
| Tempo de entrega: | 10~15days |
| Termos de pagamento: | L/C, T/T, D/A, D/P, 100%LC, união ocidental |
| Habilidade da fonte: | 5000kg/15 dias |
| Matéria-prima: | poliéster envernizado, tecido de fibra de vidro | Cor: | amarelo ou amarelo escuro |
|---|---|---|---|
| Grossura: | 0,10 ~ 0,25 mm | Largura: | 15~1300mm |
| Divida a tensão: | 5,0~10,0KV | Temperatura operacional: | Classe F 155grau |
| Modelo: | 2440 | Padrão: | JB/T8148.2-1999 |

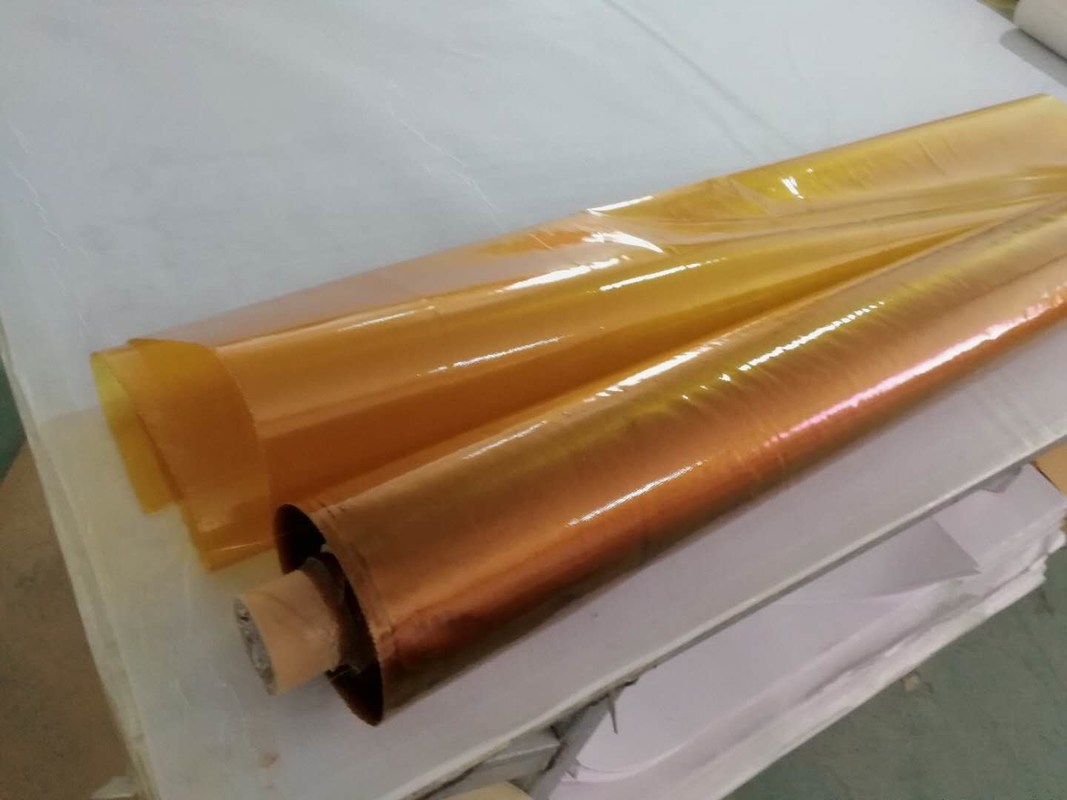

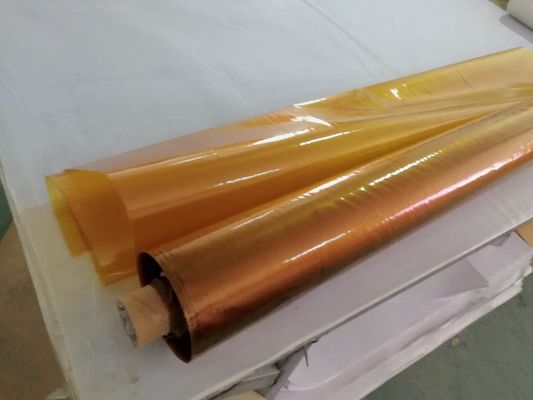

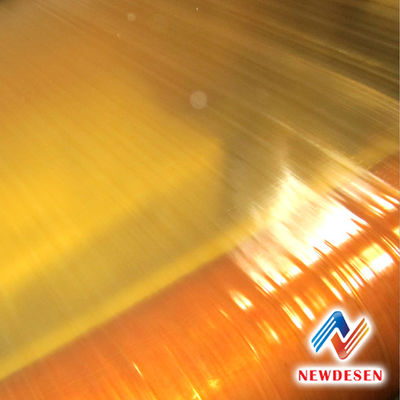

2440 polyester varnished glass cloth
Heat-resistance: F class 155℃
Standard: JB/T8148.2-1999
Material: Non-alkali fiberglass cloth Coating: polyester varnish
Property: With high dielectric,mechanical property and good oil resistance.
Application: As liner and wrapping insulation for common motors, transformers, appliance with Class F insulation system.
The specification available:
Thickness: 0.11mm 0.13mm 0.15mm 0.17mm 0.20mm 0.24mm
Width: 15mm; 20mm; 25mm; 50mm; 1000mm;1250mm (Special specification can be negotiated)

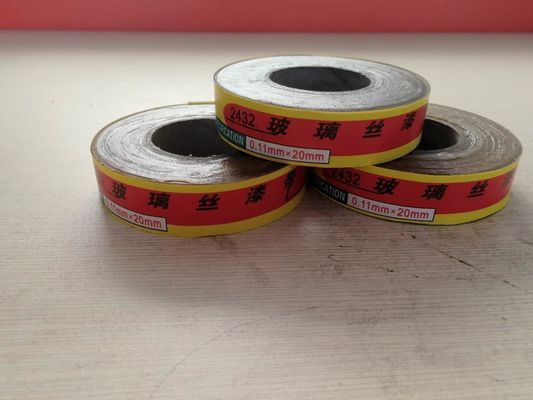

Pacage: Plastic or Carton
| Number | Test Content | Technical Index | Unit | Test Result | Report | |
| 1 | Appearance | Uniform paint film, no bubble, crease, injury and impurities | / | Approval | Approval | |
| 2 | width | 20 | mm | 20 | Approval | |
| 3 | Standard thickness | 0.12±0.012 | mm | 0.125 | Approval | |
| 0.15±0.015 | mm | 0.153 | Approval | |||
| 0.18±0.018 | mm | 0.184 | Approval | |||
|
4
|
Breakdown Voltage 23±2℃ Mid-value |
0.12 | ≥6.0 | KV | 6.2 | Approval |
| 0.15 | ≥7.0 | KV | 7.4 | Approval | ||
| 0.18 | ≥8.0 | KV | 8.5 | Approval | ||
|
Breakdown Voltage 23±2℃ Min-value |
0.12 | ≥4.5 | KV | 4.8 | Approval | |
| 0.15 | ≥6.0 | KV | 6.7 | Approval | ||
| 0.18 | ≥6.5 | KV | 6.6 | Approval | ||
|
Breakdown Voltage 130±2℃ Mid-value |
0.12 | ≥3.0 | KV | 3.6 | Approval | |
| 0.15 | ≥3.5 | KV | 4.1 | Approval | ||
| 0.18 | ≥4.0 | KV | 4.2 | Approval | ||
| 5 |
Tensile strength Warp direction |
0.12 | ≥85 | N/10MM WIDTH | 90 | Approval |
| 0.15 | ≥105 | 115 | Approval | |||
| 0.18 | ≥111 | 124 | Approval | |||
|
Tensile strength Weft direction |
0.12 | ≥52 | N/10MM WIDTH | 58 | Approval | |
| 0.15 | ≥65 | 72 | Approval | |||
| 0.18 | ≥78 | 85 | Approval | |||
