| Tempat asal: | Xuchang |
| Nama merek: | NEWDESEN |
| Sertifikasi: | ISO2000 SGS |
| Nomor model: | 2432 |
| Kuantitas min Order: | 300kg |
|---|---|
| Harga: | 5USD/KG |
| Kemasan rincian: | kotak dan palet |
| Waktu pengiriman: | menjadi 7 hari |
| Syarat-syarat pembayaran: | L/C, D/A, D/P, T/T, Western Union |
| Menyediakan kemampuan: | 1000kg/hari |
| Jenis: | pita isolasi yang dipernis | Bahan: | kain fiberglass dengan pernis alkid |
|---|---|---|---|
| Warna: | Kuning keemasan atau kuning muda | Ketebalan: | 0,11~0,25mm |
| Lebar: | 10~1250mm | Kemasan: | tas anyaman atau kotak |
| Kelas Isolasi: | B 130 | Tegangan tembus: | 7~12kv |

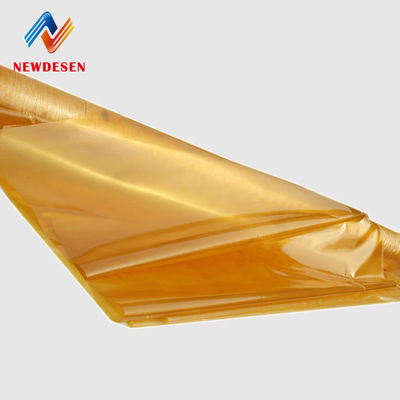

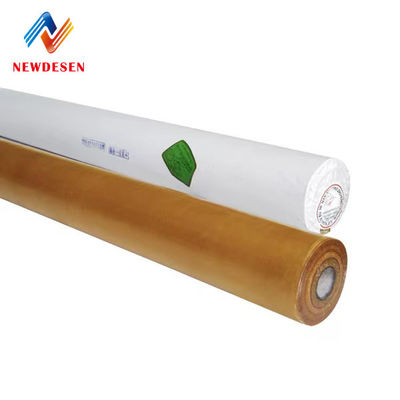

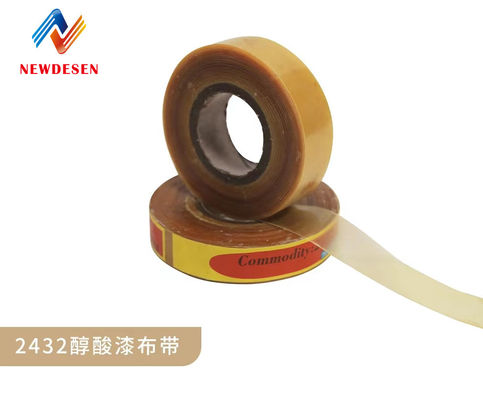

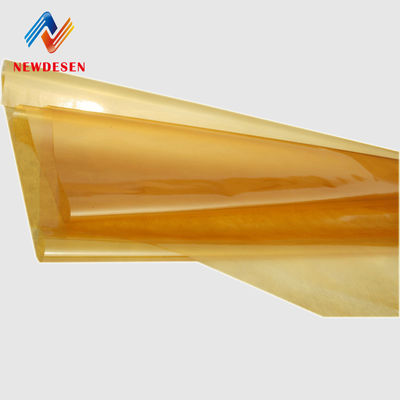

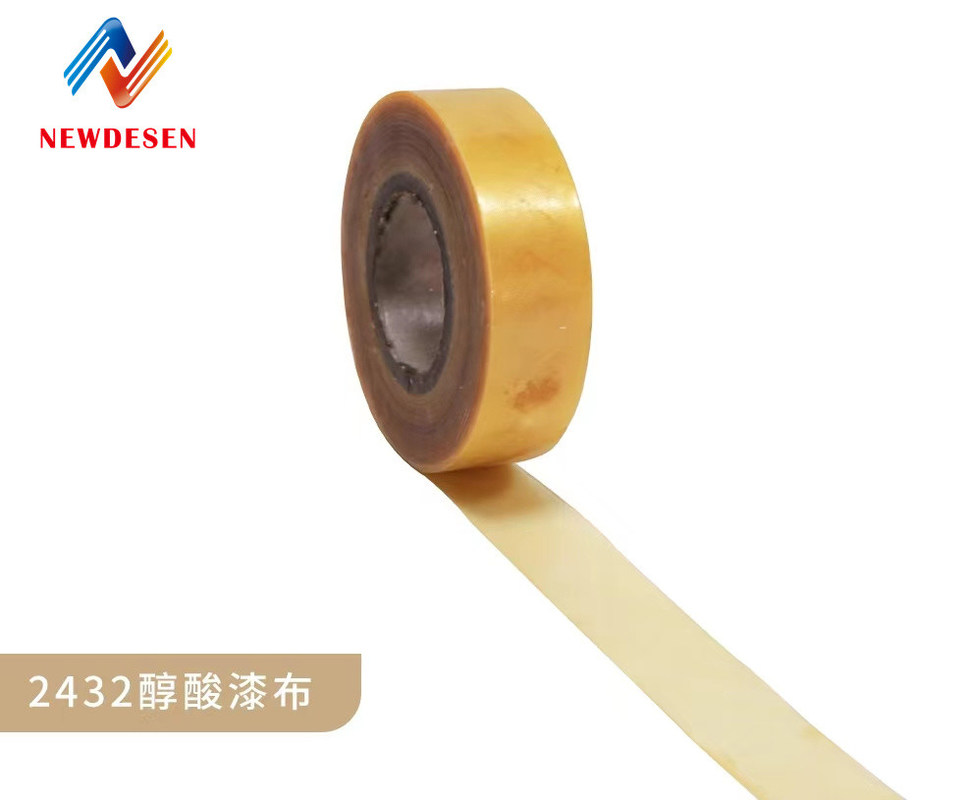

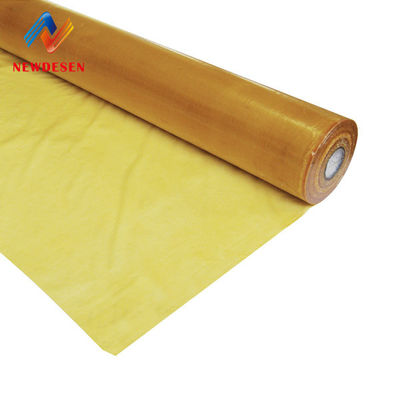

2432-Alkyd varnished glass cloth- is prepared by impregnating the electrical glass cloth with alkyd resin by baking treatmenthigh mechanical strength and electrical properties, used for the insulating binding and liner of the electrical appliances.
-
Thickness:0.11 mm;0.13mm;0.15 mm;0.17 mm;0.20 mm;0.25 mm
-
Width:15 mm;20 mm;25 mm;50 mm;1000 mm;1250mm
-
Heat-resistant:130-- class B insulation
-
Quality Standard :JB/T8148.1-1991
-
| Item | Checking measure | unit | Requirments | ||
| 1 | appearance | - | Uniform lacquer flim ,no air bladder ,no crease,or any other defect .lacqure film cant be felt when open ,with neat cutting of the whole roll | ||
| 2 | width | mm | negotiable | ||
| 3 | Normal thickness | mm | 0.12±0.020 | ||
| 4 | thermoplastic (70±2,24h) | / | Lacquer film no felt ,no break off | ||
| 5 | Shrinkage 105±2,6h)(average ) | % | ≤4 | ||
| 6 | -Volume Resistance | Ω.m | Normality ≥1.0×1011 | ||
