| Place of Origin: | HENAN |
| Brand Name: | NEWDESEN |
| Certification: | ROHS ,UL |
| Model Number: | 6520 |
| Minimum Order Quantity: | 1000KG |
|---|---|
| Price: | 1.75~2.1USD/KG |
| Packaging Details: | Cartons size 28*28*1002mm, each roll weight 55kg, 16roll/pallet, pallet size 1.1*1.1*1.15m |
| Delivery Time: | 5~8days |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1500KG/DAY |
| Model: | 6520 | Material: | Fish Paper /polyester Film |
|---|---|---|---|
| Colour: | GREEN, BROWN, DEEP BLUE, | Thickness: | 0.13`0.50mm |
| Width: | 1000mm | Brown Down Voltage: | 5~7KV |
| Mylar Thickness: | 0.030mm | Brand: | NEWDESEN |
| Stardand: | JB/T4059-1999 | Ooperating Temperature: | 120 Degree ,Class E |

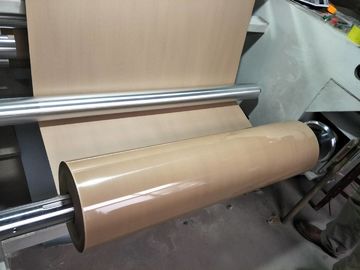

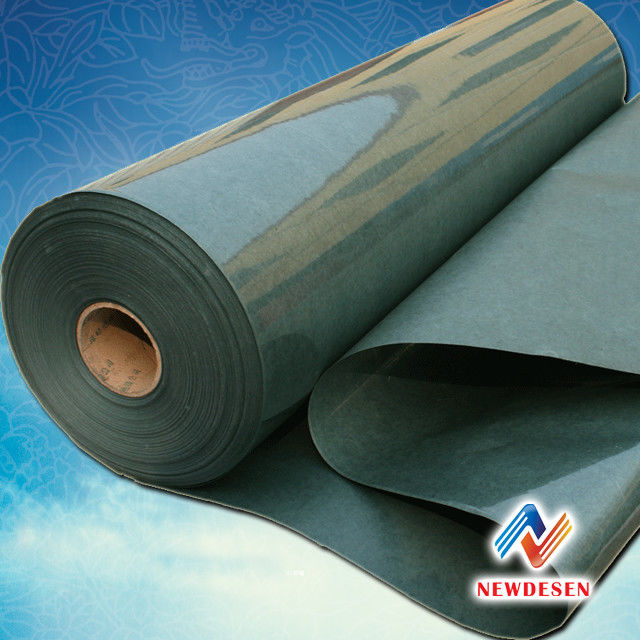

6520&6521 polyester film insulation paper (PET/FISH PAPER COMPOSITE 6520 )
Heat-resistance: E class 120℃
Standard: JB/T4095-1991
Material : Polyester film and fish paper
6520&6521 polyester film- fish paper paper composite foil is the composite of 6020 polyester film painted with adhensives and electrical-insulation paperboard. It is suitable to be used in electric machine and electric equipment for insulating groove or liner and for insulation between wire circles.
Property:
Storage life---1 year
The specification available:
Thickness: 0.15mm 0.17mm 0.20mm 0.23mm 0.25mm 0.30mm
Width: 1000m color: blue, green, cyan, brown
Pacage: Plastic Bags or Carton
| Number | Index | Unit | Describe | |||
| 1 | Thickness | mm | 0.15 | 0.20 | 0.30 | |
| 2 | Tolerance value | mm | ±0.020 | ±0.030 | ±0.030 | |
| 3 | Nominal quantification and deviation | g/m2 | 190±30 | 255±38 | 372±55 | |
| 4 | mylar thickness | um | 0.03 | |||
| 5 | Tensile strengh | MD no bending | N/10mm width | ≥135 | ≥170 | ≥260 |
| TD no bending | ≥80 | ≥100 | ≥120 | |||
| 5 | Elongation | MD | % | ≥2.0 | ≥3 | |
| CD | % | ≥6.0 | ≥8 | |||
| 6 | Breakdown voltabe | no bending | KV | ≥6.0 | ||
| 7 | after bending | ≥5.0 | ||||
| 8 | Bonding strength at room temperature | － | No delamination | |||
| 9 | Hot bonding (130±2)℃ 10min | － | No blister modelamination and no adhensive flow | |||
