| 원래 장소: | 쉬창 |
| 브랜드 이름: | NEWDESEN |
| 인증: | ROHS, UL |
| 모델 번호: | 으아악 |
| 최소 주문 수량: | 300KG |
|---|---|
| 가격: | 18~29USD/KG |
| 포장 세부 사항: | 각 롤 무게 53~58kg을 상자에 넣은 다음 16롤을 팔레트에 포장합니다. |
| 배달 시간: | 중국 항구로 10일 배송으로 지불받은 후 |
| 지불 조건: | L/C (신용장), 전신환, 인수 인도, 웨스턴 유니온, 머니그램 |
| 공급 능력: | 달 당 8000KGS/ |
| 상표: | 뉴데센 | 너비: | 900mm 또는 920mm |
|---|---|---|---|
| 색상: | 골드 노란색 | 온도 등급: | 클래스 H |
| 재료: | 폴리이미드 필름을 사용한 비알칼리 섬유유리 천 | 두께: | 0.15~0.40mm |
| 원래 장소: | 쉬창 | 롤 무게: | 롤당 53~58kg |
| Hs 코드: | 392069 |

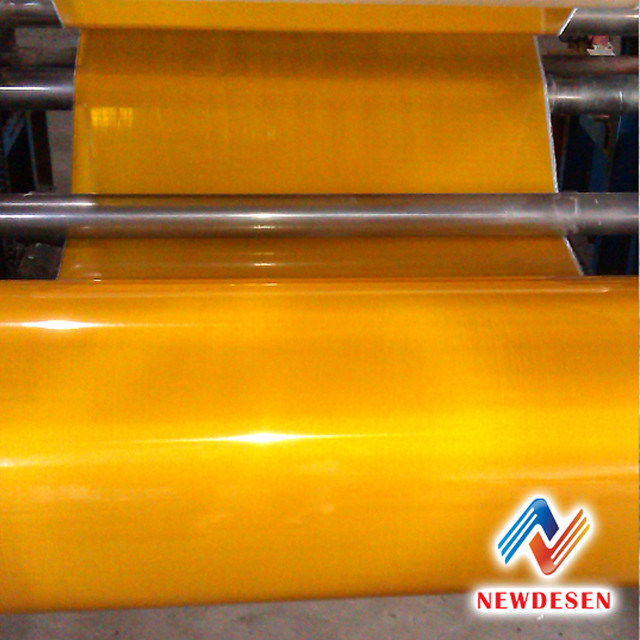

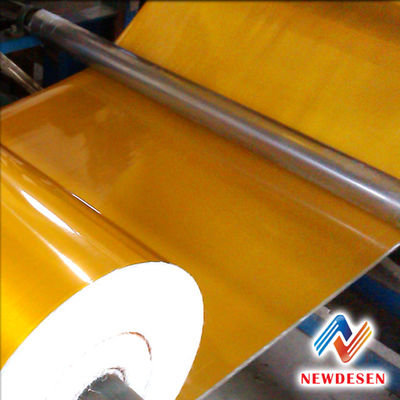

FLEXIBLE COMPOSITE INSULATING MATERIAL POLYIMIDE FILM hgh FIBERGLASS CLOTH
the HGH flexible composite Made of two layers of polyimide film on both sides, and with one layer of alkali-free fiberglass
cloth in the middle.
can provide thickness:
0.13mm, 0.15mm, 0.18mm, 0.20mm ,0.25mm ,0.30mm ,0.33mm, 0.35mm, 0.38mm, 0.40mm, 0.45mm 0.50mm .width:914mm
Features:
1.It is bonded by H class adhesive, two layers of Polyimide film on both sides and one layer of alkali-free fiberglass cloth in the middle.
2.It is with excellet dielectric properties, mechanical strength, tearing strength and long time thermostability at low or high temperature.
3.Be used as slot insulation, liner insulation, interlayer insulation of motor, transformer or other electrical appliances.
4.Insulation Class: H Class (180℃)
5.Appearance: Smooth, beautiful, shining.
Application Remarks
MGM composite flexible is mainly used as a slot liner,slot closure, phase-to-phase and turn-to-turn insulation in low or medium voltage electrical motors of Class F (155℃) or Class H (180℃) insulation system ,in addition, its also used as interlayer insulation in transformers and other electrical machines and appliances
Package :
hgh fiberglass laminated sheet ,usually we will be packed by three-layer, the first layer is a plastic film, the second layer is a carton plus a packing tape, and the third layer is wrapped with a plastic film. This will prevent the goods from getting wet and rubbed during transportation and ensure that the product arrives at your destination in good condition.
Performance requirements as follows
