| Tempat asal: | CINA-XUCHANG |
| Nama merek: | NEWDESEN |
| Sertifikasi: | ISO9001 |
| Nomor model: | SHS |
| Kuantitas min Order: | 1000Rolls |
|---|---|
| Kemasan rincian: | KARTON, PALLET |
| Waktu pengiriman: | 15-20 hari |
| Syarat-syarat pembayaran: | Serikat Barat, L/C |
| Spesifikasi: | 0,13-0,40mm | Warna: | Kuning |
|---|---|---|---|
| Klasifikasi: | Bahan Isolasi Hibrid | Kapasitas Produksi: | 5000kg/bulan |

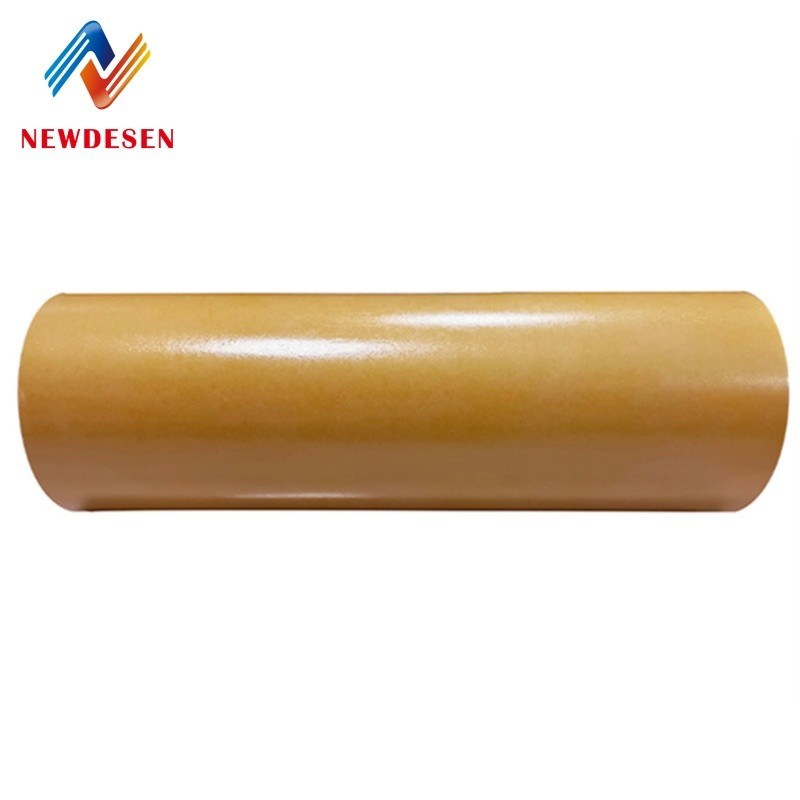

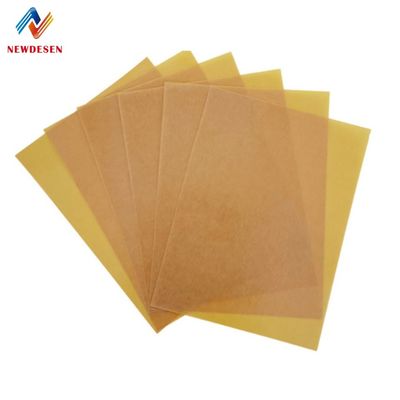

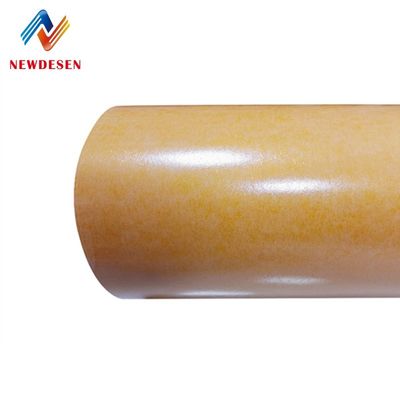

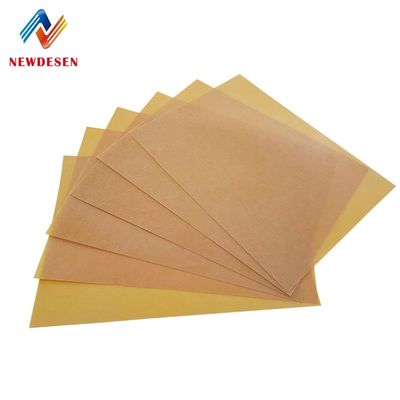

SHS Epoxy Prepreg
Product Specification
H-Class Epoxy Prepreg used in dry type transformer is made of polyimide film polyester fiber non-woven soft composite material impregnated with class H heat-resistance epoxy resin through baking.
Feature and Application
The solidified materials have high mechanical strength, outstanding dielectric properties and adhesive properties. Heat resistance grade is Class H.
Product is wound in the conductor directly, can form a strong insulation layer after thermo curing, and the process is simple and convenience.
It is applicable to the coil layer insulation and end insulation of Class H dry type transformer or electric reactor or mining transformer, as well as the layer insulation, slot insulation and turn-to-turn insulation of electrical machinery and electric appliance.
