| Place of Origin: | HENAN |
| Brand Name: | NEWDESEN |
| Certification: | ISO1998;ROHS,UL |
| Model Number: | 2830/2840/2850 |
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | 0.05~0.18usd/m |
| Packaging Details: | carton and pallet |
| Delivery Time: | after get payment into 20days delivery to China |
| Payment Terms: | L/C.D/A.D/P.T/T.WESTEN UNION |
| Supply Ability: | 15-30days finished 5tons |
| Material: | E-glass | Applicantion: | High Temperature |
|---|---|---|---|
| Sample: | Sample Aliavle | Type: | Insulation Tape |
| Width: | 20 25 And 30mm | Usage: | Electrice Power |
| Storage Period: | 3months Under 25degree | Thickness: | 0.17 ,0.30mm |
| Size: | 0.17*25mm*200m And 0.30*25mm*200m | HS CODE: | 701951 |

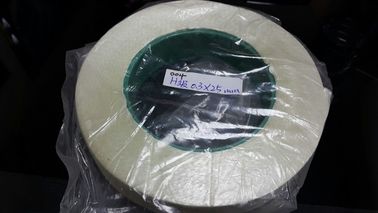

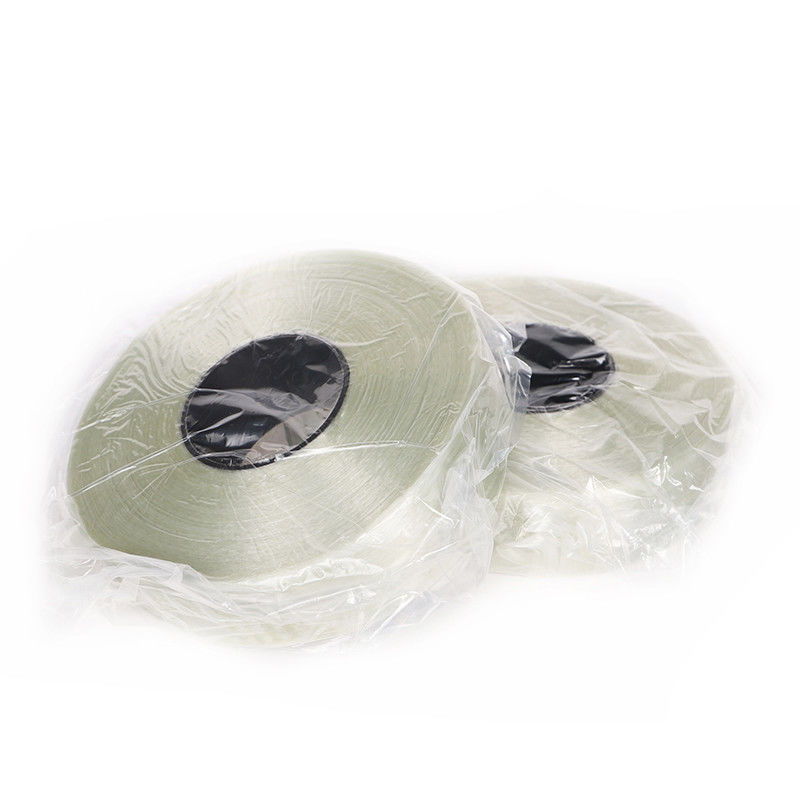

Epoxy impregnated fiberglass banding tape is made of parallelly twisted Fiberglass yarns preimpregnated with a kind of thermosetting epoxy resin. It is soft and sticky. Its web-shape structure is easily unwinded without glass strands separation and overlapping
Class B(130 degrees C)
ClassF (155 degrees C) insulating material,
ClassH( 180 degrees C)
Features:
High tensile strength,
Absorb shocks,
Good elasticity,
Dimensional stability.
Applications:
Used as banding materials for electrical motors, transformers ,lightning arresters and mutual inductors.
Production Standard: JB/T 6236.3-92
Technical data:
| MODEL | DESCRIPTION | THERMAL CLASS | VOLATILE CONTENT | RESIN CONTEN | MAX. BANDING STRENGTH |
| 2830 | Unsaturated polyester resin impregnated fiberglass banding tape | B | ≤5% | 27±2% | 400N/cm |
| 2840 | Epoxy resin impregnated fiberglass banding tape | F | 400N/cm | ||
| 2841-W | Modified epoxy resin impregnated fiberglass banding tape | F | 800N/cm | ||
| 2850 | Polyamine-imide resin impregnated fiberglass banding tape | H | 400N/cm |
Storage:
It should be stored in places under 30 degrees C. If the ambient temp. is over 30 degrees C, it has to be stored in refrigerato
