| Lugar de origem: | Henan |
| Marca: | NEWDESEN |
| Certificação: | ISO1998,ROHS |
| Número do modelo: | FITA ENCOLHÍVEL DE POLIÉSTER |
| Quantidade de ordem mínima: | 50.000 matérias |
|---|---|
| Preço: | 0.01~0.20USD |
| Detalhes da embalagem: | A embalagem interna é um saco plástico e a externa embalada em caixa ou palete para fita de fibra te |
| Tempo de entrega: | Depois de receber o pagamento em 20 dias para entrega na China |
| Termos de pagamento: | T/T, L/C, Western Union, MoneyGram, D/P, D/A |
| Habilidade da fonte: | 15~30 dias terminaram 5 toneladas |
| Fita: | Isolamento | Padrão: | Padrão |
|---|---|---|---|
| Amostra: | Amostra fornecida | Uso: | Proteção de isolamento |
| Recurso: | Desempenho elétrico | Cor: | Branco |
| Largura: | 20 a 40 mm | Grossura: | 0,20 ~ 0,25 mm |
| Taxa de redução: | 10% e 40% |
| Properties | Units | Values |
| Broken warp | / | Every tray is made up of two segments, the length of each is not less than 5 meters |
| Broken-ends | / | No more than 200mm single broken end, no more than 30mm two broken ends |
| Besmirch | / | No oil stain, no rust |
| Pinholing | / | No broken warp and end at the same time, no more than 3 pinholing |
| Shrinkage | % | ≥20 |
| Tensile strength | N/10mm | ≥200 |
| Volume resistivity | Ω·m | ≥3X107 |
| The quality warranty period | Twelve months(Dryness stockpile) | |

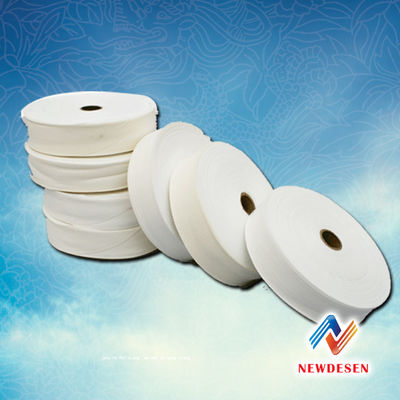

Heat Shrink Polyester Tape is made of a special compound fiber of thermal contraction. After binding and dried at 105ºC for 10 minutes, it will be shrunk to 70%, which is good at a solid binding and at a compatibility with transformers. In ths way, it will be utilized in the transformer oil at 105ºC for a long time.
Applications of Heat Shrink Polyester Tape:
-As insulating binding materials for electric motors,coil of transformers.
Availability of Heat Shrink Polyester Tape:
-Rolls: 10mm,15mm,20mm,25mm,30mm,50mm width.
Other spec. can be produced on request.
-Colour line in the middle is available on request.
