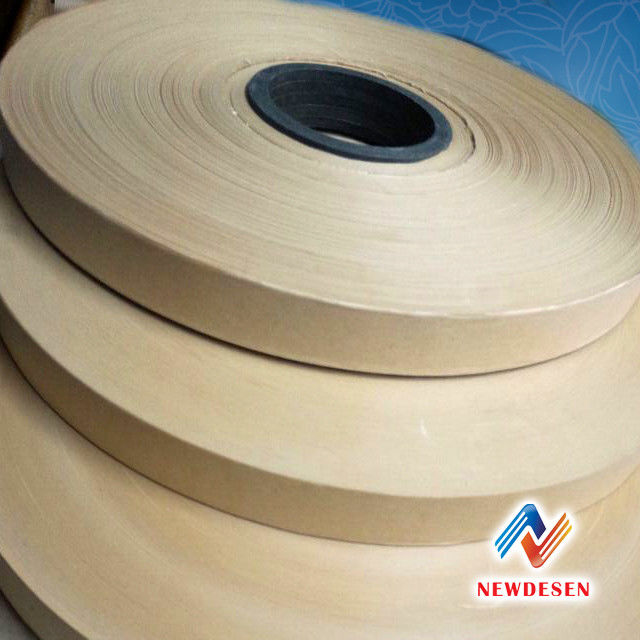

Electrical Insulation Cable Paper/brown Roll Brown Kraft Paper Tape
  • name
  • name
  • name
  • name

Electrical Insulation Cable Paper/brown Roll Brown Kraft Paper Tape

MOQ: 1000KG
Price: 1.3~1.5USD/KG
Standard Packaging: Cartons size 28*28*1002mm, each roll weight 55kg, 16roll/pallet, pallet size 1.1*1.1*1.15m
Delivery Period: 5~8days
Payment Method: D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Capacity: 1500KG/DAY
Detail Information
Product Description
Detail Information
Place of Origin
HENAN
Brand Name
NEWDESEN
Certification
ROHS
Model Number
ELECTRICAL CABLE PAPER
Model:
Cable Paper
NAME:
Cable Paper ,KRAFT PAPER
Colour:
BROWN,
Thickness:
0.05~0.25mm
Width:
560~1120mm
Brand:
NEWDESEN
HS CODE:
480431
Product Description



Electrical grade insulating kraft paper (Coil insulating kraft paper) is manufactured from 100% high-quality sulfate insulating wood pulp.



"NEWDESEN" thin insulation paper has good mechanical strength, high electrical strength, smooth surface, full of toughness, widely used in electrical machinery, electrical appliances, instruments and other equipment as insulation materials, but also used in the production of 6520 composite insulation paper products.Can also be used in machine gasket, clothing, footwear, printing and packaging and other related industries



Storage life---1 year



The specification available:

Thickness: 0.05~0.25mm



Width: 560mm color:brown
Pacage: Plastic Bags or Carton


Specified Properties Units Values Specified
2mil 2.5mil 3mil 4mil 5 mil
Thickness Tolerance Micron 50+/-10% 64+/-10% 75+/-10% 100+/-10% 125+/-10%
Substance (Grammage) g / m^2 40+/-10% 51+/-5% 61+/-5% 76+/-5% 100+/-5%
Apparent Density g / m^3 0.8 +/- 0.05
Moisture Content % 8 Max
Moisture content % 5 - 9
Water Absorption MD Mm 10 Min.
Water Absorptio CD
Air Permeability m/Pa.Sec 0.5 to 1.0
Tensile Index MD Nm/g 78 Min
Tensile Index CD 28 Min
Elongation MD % 2.0 Min
Elongation CD 4.0 Min
Tear Index MD mN m^2/g 5 Min
Tear Index CD 6 Min
Electric Strength in Air KV/mm 7.0 Min
Ash Content % 1.0 Max
Conductivity of 5% Aqueous Extract Ms/m 10 Max
Ph of 5% Aqueous Extract   6 – 8
Heat Stability (150degC,24hrs) % 20 Max


Electrical Insulation Cable Paper/brown Roll Brown Kraft Paper Tape 0
Mobile:86 139 0374 4063.

Mail: creditzf@163.com
Electrical Insulation Cable Paper/brown Roll Brown Kraft Paper Tape 1

Skype: zhufenglisa
Electrical Insulation Cable Paper/brown Roll Brown Kraft Paper Tape 2
Whatsapp: 86 139 03744063

Electrical Insulation Cable Paper/brown Roll Brown Kraft Paper Tape 3


Electrical Insulation Cable Paper/brown Roll Brown Kraft Paper Tape 4
Wechat: 707073142
Electrical Insulation Cable Paper/brown Roll Brown Kraft Paper Tape 5
